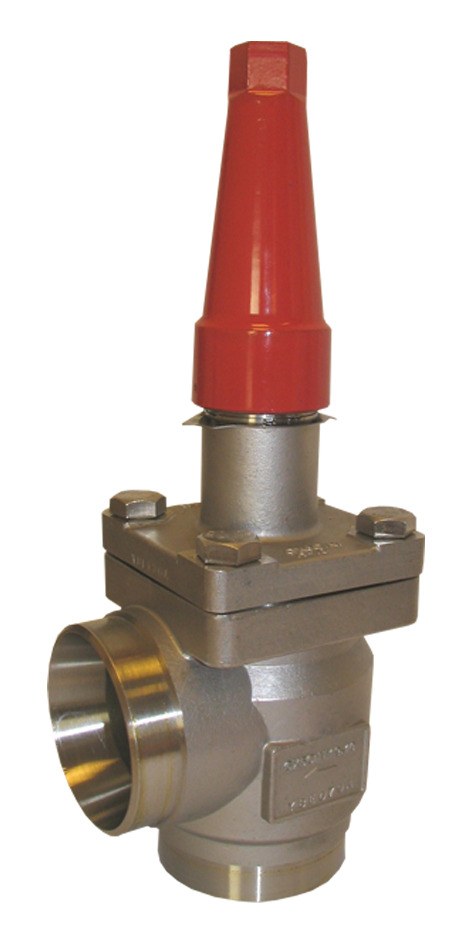

Danfoss SVA-S SS 125 angleway shut-off (stop) valve, cap, 125 mm (5 in) butt weld EN 10220, stainless steel, 50 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss SVA-S SS 125 angleway shut-off (stop) valve for industrial refrigeration, code 148B6126. Stainless steel body with butt weld connections to EN 10220, nominal size 125 mm (5 in), operated with a cap. Bi-directional (bi-flow) isolation of liquid, suction, hot-gas and oil lines. Maximum working pressure 50 bar; media temperature range -60 to 150 C (-76 to 302 F). Flow coefficient Kv 514 m3/h (Cv 596.24 gal/min). Back-seating spindle allows the packing to be serviced with the plant in operation; part of the Danfoss SVL Flexline programme. For R717 (ammonia), R744 (CO2) and fluorinated refrigerants and their oils.
Technical Specifications
- Type
- SVA-S SS 125 shut-off valve (SVL Flexline)
- Code number
- 148B6126
- Series
- SVA-S SS
- Direction
- Angleway
- Connection type
- Butt weld
- Connection standard
- EN 10220
- Nominal size
- 125 mm (5 in)
- Top equipment
- Cap
- Body material
- Stainless steel
- Maximum working pressure
- 50 bar
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Kv value
- 514 m3/h (Cv 596.24 gal/min)
- Flow direction
- Bi-flow
- Applicable media
- R717 (ammonia), R744 (CO2), HCFC/HFC refrigerants and oils
- Conformity assessment
- PED 2014/68/EU, Category III
- Approvals
- CE, EAC
- Net weight
- 30.49 kg
- EAN
- 5702428843423
- Product group
- Shut-off and regulating valves
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Yes
- Colour Paint
- Reddish brown
- Connection Code
- (2501:D40:125)
- Connection material
- Stainless steel
- Cv value [gal/min]
- 596.24 gal/min
- Equipment
- Cap
- EU RoHS compliance
- Yes
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Inlet connection size [in]
- 5 in
- Inlet connection size [mm]
- 125 mm
- Inlet connection type
- Butt weld
- Kv value [m³/h]
- 514 m³/h
- Max. Working Pressure [bar]
- 50 bar
- Max. Working Pressure [psig]
- 725 psig
- Neck
- Standard
- Outlet connection size [in]
- 5 in
- Outlet connection size [mm]
- 125 mm
- Outlet connection type
- Butt weld
- PED category
- III
- REACH Candidate List substances
- No
- Refrigerants
- R113
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -76 °F
- Valve version
- Standard version
Standards & Compliance
- Standard
- EN 10220
- Size / Series
- 125 mm
- Material
- Stainless steel
- Pressure Rating
- 50 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss SVL Flexline SVA-S SS 125 stainless steel shut-off valve. Select by direction (angleway), operator (cap) and connection standard (EN 10220). EN 10220 and ASME weld-end preparations are not interchangeable — the ASME cell of this size is a separate code. SVA-S is the standard neck; SVA-L is the long-neck version. Shares the SVL Flexline platform with REG-SA/REG-SB, SCA-X/CHV-X and FIA of the same nominal size.
