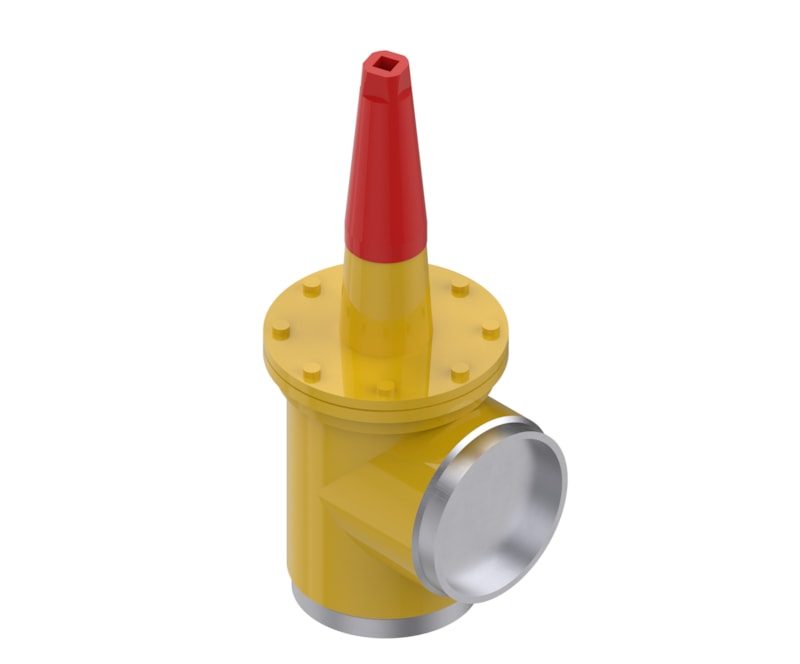

Danfoss SVA-S 200 angleway shut-off (stop) valve, 200 mm (8 in) butt weld ASME, steel, 65 bar, cap (code 148B6675)
Danfoss · HVAC & Refrigeration · Globe Valves
Danfoss SVA-S 200 shut-off (stop) valve for industrial refrigeration, code 148B6675. SVA-S is a globe-type hand-operated stop valve in the SVL Flexline range; it isolates a line section for service and reopens to full bore. This SKU is the angleway version with 200 mm (8 in) butt weld connections to ASME B 36.10M SCHEDULE 40, fitted with a cap (no handwheel). Bi-flow; maximum working pressure 65 bar (943 psig); media temperature range -60 to 150 C (-76 to 302 F); flow coefficient Kv 1168 m3/h. Steel construction suits HCFC, HFC, R717 (ammonia) and R744 (CO2) systems.
Specifications
- Part number
- 148B6675
- HS code
- 8481.80
- Material
- Steel
- Pressure rating
- 65 bar
- Temperature range
- -60 to 150 C
- Standard size
- 200 mm
Compatibility
Danfoss SVL Flexline SVA-S 200 stop valve. Select by nominal size (200 mm / 8 in), flow direction (angleway) and connection standard (ASME B 36.10M SCHEDULE 40). EN (DIN) and ASME weld-end variants are separate codes; cap and handwheel versions are separate codes. Confirm the mating pipe standard before ordering.
Approvals
