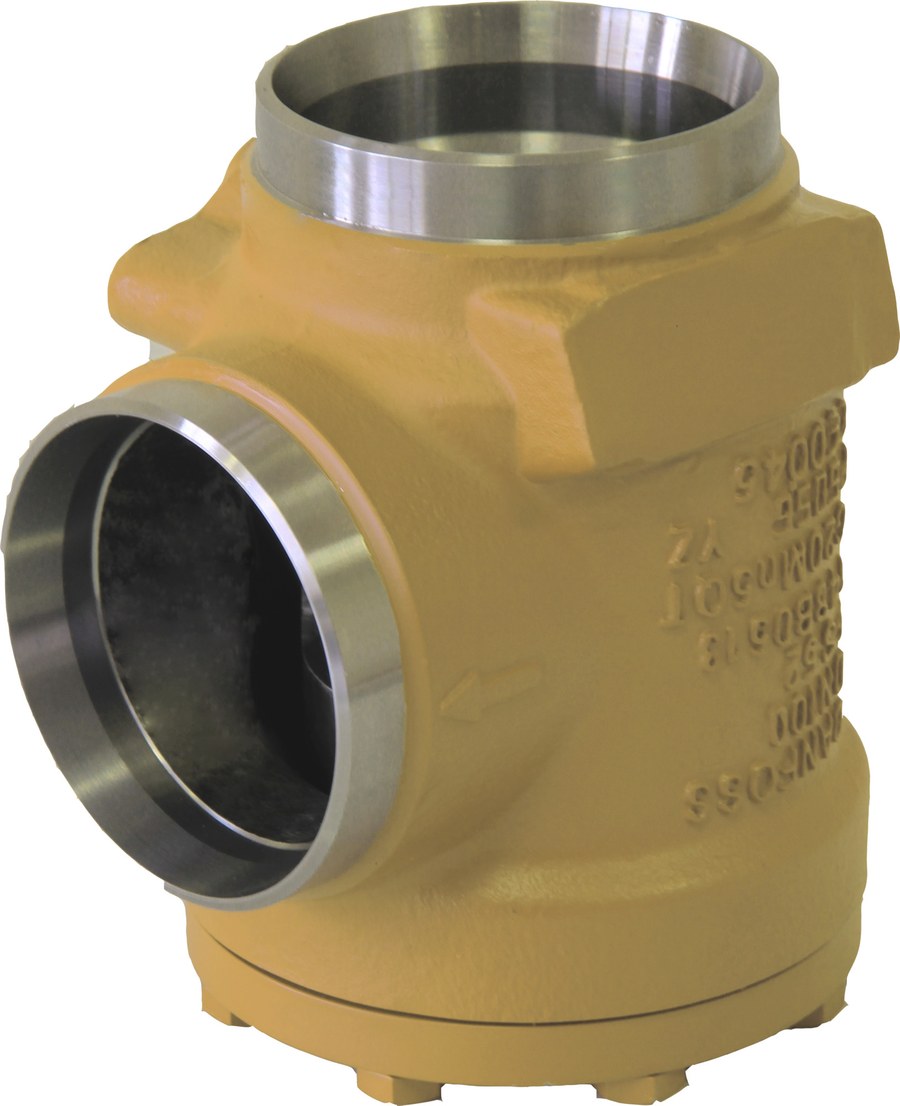

Danfoss FIA 200 angleway strainer housing, 200 mm (8 in) butt weld ASME, steel, 65 bar (code 148B6679)
Danfoss · HVAC & Refrigeration · Filters & Driers
Danfoss FIA 200 strainer housing for industrial refrigeration, code 148B6679. FIA strainers protect downstream valves, pumps and controls from weld slag, scale and debris in HCFC, HFC, R717 (ammonia) and R744 (CO2) systems. This SKU is the angleway housing with 200 mm (8 in) butt weld connections to ASME B 36.10M SCHEDULE 40; the filter insert (150 / 250 / 500 micron, plain or pleated) is ordered separately. Maximum working pressure 65 bar (943 psig); media temperature range -60 to 150 C (-76 to 302 F). Steel construction with bolted cover for insert service.
Specifications
- Part number
- 148B6679
- HS code
- 8421.39
- Material
- Steel
- Pressure rating
- 65 bar
- Temperature range
- -60 to 150 C
- Standard size
- 200 mm
Compatibility
Danfoss FIA 200 strainer housing. Select by nominal size (200 mm / 8 in), flow direction (angleway) and connection standard (ASME B 36.10M SCHEDULE 40). The filter insert (150 / 250 / 500 micron, plain or pleated) is a separate code chosen for the required filtration and pressure drop. EN (DIN) and ASME weld-end variants are separate codes.
Approvals
