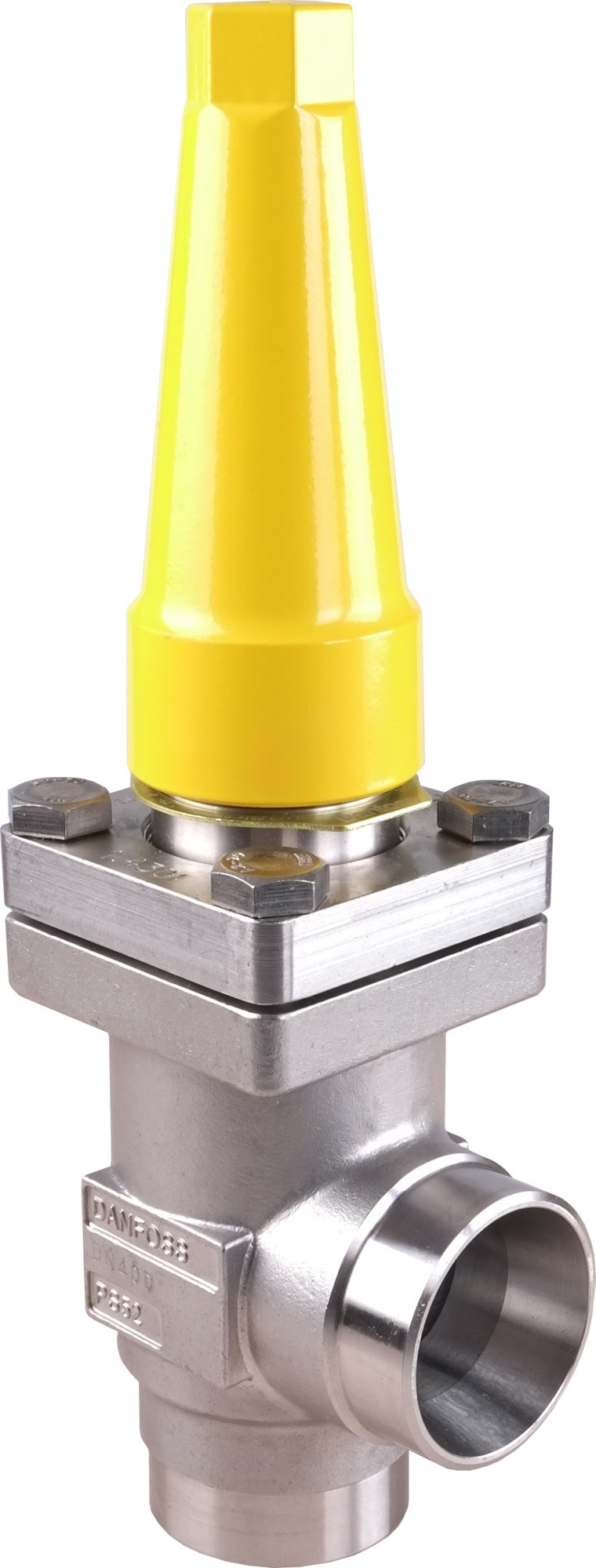

Danfoss REG-SA SS 32 angleway hand regulating valve, 32 mm (1 1/4 in) butt weld ASME B 36.19M Schedule 40, stainless steel, 52 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss REG-SA SS 32 hand-operated regulating valve for the SVL Flexline industrial-refrigeration range, code 148B6484. REG valves throttle and manually regulate refrigerant flow; the REG-SA uses an A-cone characteristic for fine regulation. This SKU is the angleway body in stainless steel with 32 mm (1 1/4 in) butt-weld connections to ASME B 36.19M Schedule 40 and is supplied with a cap. Flow coefficient Kv 20 m3/h. Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). For HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) systems. Built on the SVL Flexline modular platform and serviceable with SVL Flexline spare parts.
Technical Specifications
- Type
- REG-SA SS 32 (SVL Flexline hand regulating valve)
- Code number
- 148B6484
- Series
- REG-SA (A-cone)
- Function
- Hand-operated regulating (throttling) valve
- Nominal size
- 32 mm (1 1/4 in)
- Flow direction
- Angleway
- Connection type
- Butt weld
- Connection standard
- ASME B 36.19M Schedule 40
- Body material
- Stainless steel
- Operator
- Cap
- Kv value
- 20 m3/h
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Applicable media
- HCFC, HFC, R717 (ammonia), R744 (CO2)
- PED category
- II
- Approvals
- CE, EAC
- EAN
- 5702428990240
- Net weight
- 3.215 Kilogram
- Product group
- Shut-off and regulating valves
- Approval
- CE
- China RoHS compliance
- Yes
- Colour Paint
- Reddish brown
- Connection Code
- (2502:S40S:32)
- Connection material
- Stainless steel
- Cv value [gal/min]
- 23.2 gal/min
- Direction
- Angleway
- Equipment
- Cap
- EU RoHS compliance
- Yes
- Fluid Group
- 1
- Inlet connection size [in]
- 1 1/4 in
- Inlet connection size [mm]
- 32 mm
- Inlet connection type
- Butt weld
- Kv value [m³/h]
- 20 m³/h
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 754 psig
- Outlet connection size [in]
- 1 1/4 in
- Outlet connection size [mm]
- 32 mm
- Outlet connection type
- Butt weld
- REACH Candidate List substances
- No
- Refrigerants
- R134a
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -76 °F
- Valve version
- Standard version
Standards & Compliance
- Standard
- ASME B 36.19M Schedule 40
- Size / Series
- 32 mm
- Material
- Stainless steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss SVL Flexline REG-SA hand regulating valve. Select by nominal size (32 mm / 1 1/4 in), flow body (angleway), connection standard (ASME B 36.19M Schedule 40 butt weld) and cone type (REG-SA = A-cone for fine regulation; REG-SB = B-cone for higher Kv). Confirm the mating pipe schedule before ordering.
