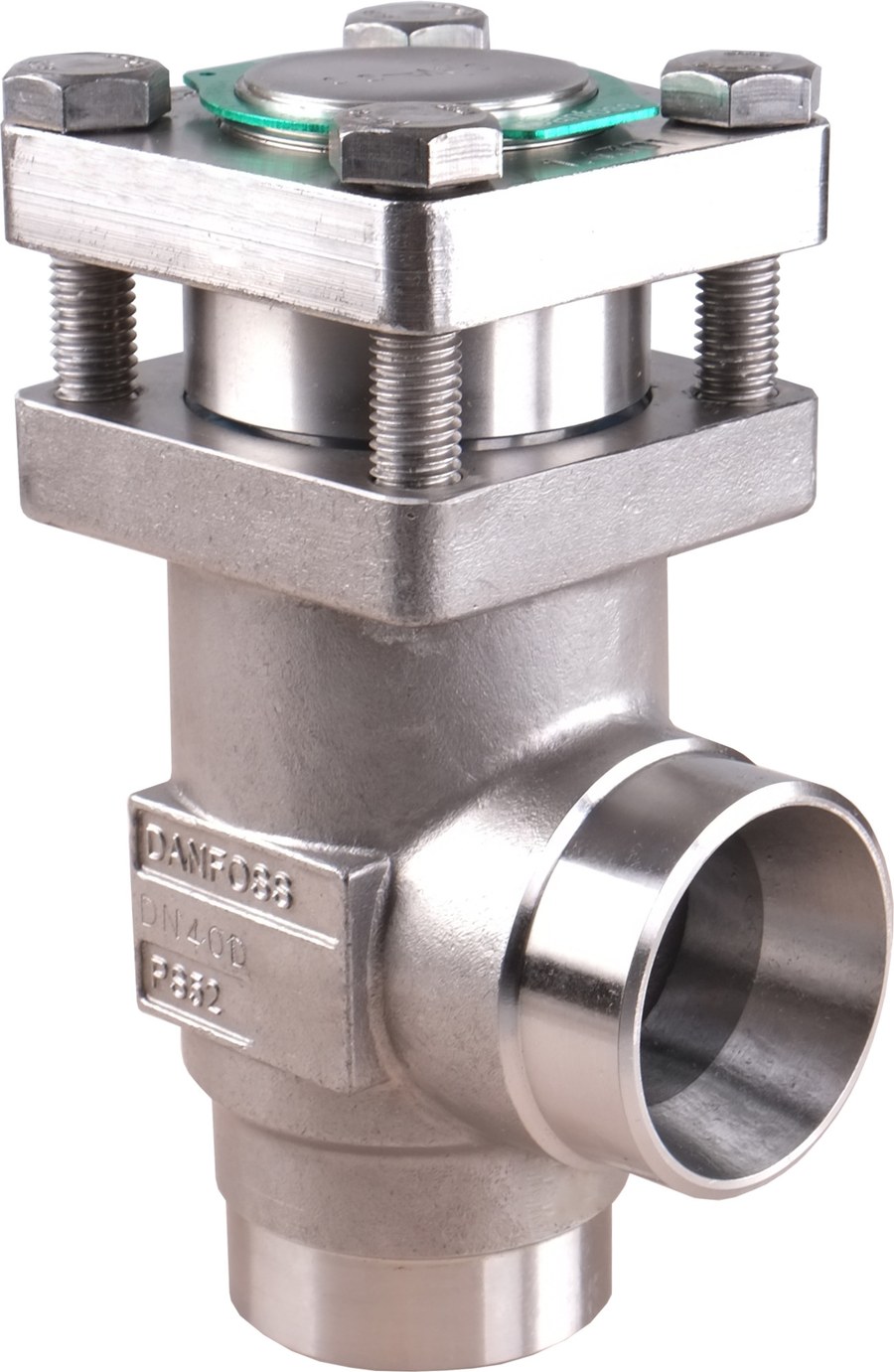

Danfoss CHV-X SS 25 angleway check valve, 25 mm (1 in) butt weld ASME B 36.19M Schedule 40, stainless steel, 52 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss CHV-X SS 25 check (non-return) valve for the SVL Flexline industrial-refrigeration range, code 148B6481. The CHV-X permits refrigerant flow in one direction only and closes to prevent back-flow toward pumps, compressors and vessels. This SKU is the angleway body in stainless steel with 25 mm (1 in) butt-weld connections to ASME B 36.19M Schedule 40. Flow coefficient Kv 24 m3/h; minimum opening differential pressure 0.04 bar; flow direction marked by an embossed one-way arrow. Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). For HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) systems. Built on the SVL Flexline modular platform and serviceable with SVL Flexline spare parts.
Technical Specifications
- Type
- CHV-X SS 25 (SVL Flexline check valve) Code number: 148B6481 Series: CHV-X SS (SVL Flexline) Function: Check (non-return) valve Nominal size: 25 mm (1 in) Flow direction: Angleway Connection type: Butt weld Connection standard: ASME B 36.19M Schedule 40 Body material: Stainless steel Kv value: 24 m3/h minimum opening differential pressure: 0.04 bar Flow direction indicator: Embossed 1-way arrow Maximum working pressure: 52 bar (754 psig) Media temperature range: -60 to 150 C (-76 to 302 F) Applicable media: HCFC, HFC, R717 (ammonia), R744 (CO2) PED assessment: Article 4, paragraph 3 (sound engineering practice) Approvals: CE, UKCA EAN: 5702428963046 Net weight: 2.45 Kilogram Product group: Check valves Approval: UKCA CE mark: Yes China RoHS compliance: Yes Colour Paint: Reddish brown Connection Code: (2502:S40s:25) Connection material: Stainless steel Connection size [in]: 1 in Connection size [mm]: 25 mm Cv value [gal/min]: 27.8 gal/min Direction: Angleway EU RoHS compliance: Yes Fluid Group: 1 Kv value [m³/h]: 24 m³/h Max. Working Pressure [bar]: 52 bar Max. Working Pressure [psig]: 754 psig MinODP [bar]: 0.04 bar MinODP [psi]: 0.62 psi PED category: Art. 4, par. 3 REACH Candidate List substances: No Refrigerants: R134a Temperature range [°C] [max]: 150 °C Temperature range [°C] [min]: -60 °C Temperature range [°F] [max]: 302 °F Temperature range [°F] [min]: -76 °F
Standards & Compliance
- Standard
- ASME B 36.19M Schedule 40
- Size / Series
- 25 mm
- Material
- Stainless steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8481.30
Compatibility & Fitment
Danfoss SVL Flexline CHV-X SS check valve. Select by nominal size (25 mm / 1 in), flow body (angleway) and connection standard (ASME B 36.19M Schedule 40 butt weld). EN 10220 and ASME weld-end preparations are not interchangeable — confirm the mating pipe schedule before ordering. Check-only; where an integral hand shut-off is also required, use the SCA-X stop/check valve of the same size. Mount with the embossed arrow in the direction of intended flow.
