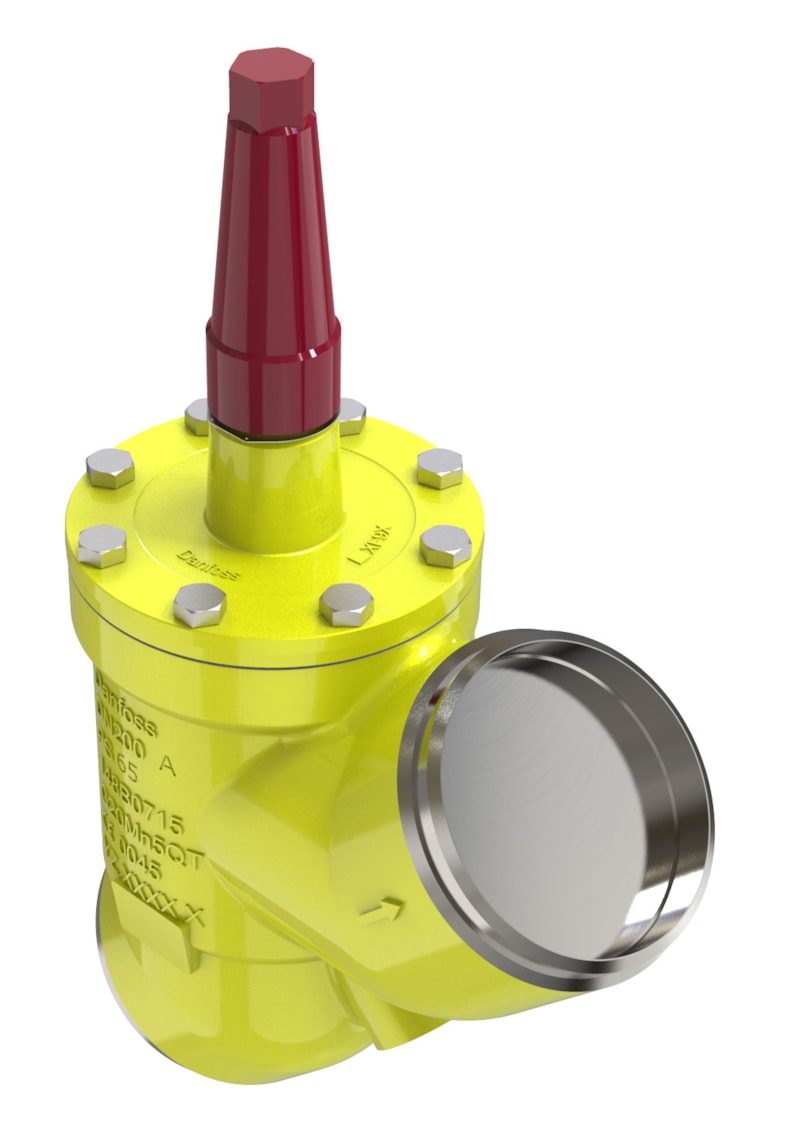

Danfoss SVA-S 200 straightway shut-off (stop) valve, 200 mm (8 in) butt weld ASME, steel, 65 bar, cap
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss SVA-S 200 shut-off (stop) valve for industrial refrigeration, code 148B6676. SVA-S is a globe-type hand-operated stop valve in the SVL Flexline range; it isolates a line section for service and reopens to full bore. This SKU is the straightway version with 200 mm (8 in) butt weld connections to ASME B 36.10M SCHEDULE 40, fitted with a cap (no handwheel). Bi-flow; maximum working pressure 65 bar (943 psig); media temperature range -60 to 150 C (-76 to 302 F); flow coefficient Kv 1024 m3/h. Steel construction suits HCFC, HFC, R717 (ammonia) and R744 (CO2) systems.
Technical Specifications
- Type
- Shut-off (stop) valve, SVA-S 200 (SVL Flexline)
- Code number
- 148B6676
- Valve function
- Hand-operated globe stop valve
- Nominal size
- 200 mm (8 in)
- Flow direction
- Straightway
- Connection
- Butt weld
- Connection standard
- ASME B 36.10M SCHEDULE 40
- Body material
- Steel
- Flow
- Bi-flow
- Flow coefficient Kv
- 1024 m3/h
- Equipment
- Cap
- Maximum working pressure
- 65 bar (943 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Applicable media
- HCFC, HFC, R717 (ammonia), R744 (CO2)
- Conformity assessment
- PED category III
- Approvals
- CE, EAC
- EAN
- 5702428507660
- Net weight
- 75.63 Kilogram
- Product group
- Shut-off and regulating valves
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Yes
- Colour Paint
- Yellow
- Connection Code
- (2002:S40:200)
- Connection material
- Steel
- Cv value [gal/min]
- 1188 gal/min
- Direction
- Straightway
- EU RoHS compliance
- Yes
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Inlet connection size [in]
- 8 in
- Inlet connection size [mm]
- 200 mm
- Inlet connection type
- Butt weld
- Kv value [m³/h]
- 1024 m³/h
- Max. Working Pressure [bar]
- 65 bar
- Max. Working Pressure [psig]
- 943 psig
- Neck
- Standard
- Outlet connection size [in]
- 8 in
- Outlet connection size [mm]
- 200 mm
- Outlet connection type
- Butt weld
- PED category
- III
- REACH Candidate List substances
- No
- Refrigerants
- R113
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -76 °F
- Valve version
- Standard version
Standards & Compliance
- Size / Series
- 200 mm
- Material
- Steel
- Pressure Rating
- 65 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss SVL Flexline SVA-S 200 stop valve. Select by nominal size (200 mm / 8 in), flow direction (straightway) and connection standard (ASME B 36.10M SCHEDULE 40). EN (DIN) and ASME weld-end variants are separate codes; cap and handwheel versions are separate codes. Confirm the mating pipe standard before ordering.
