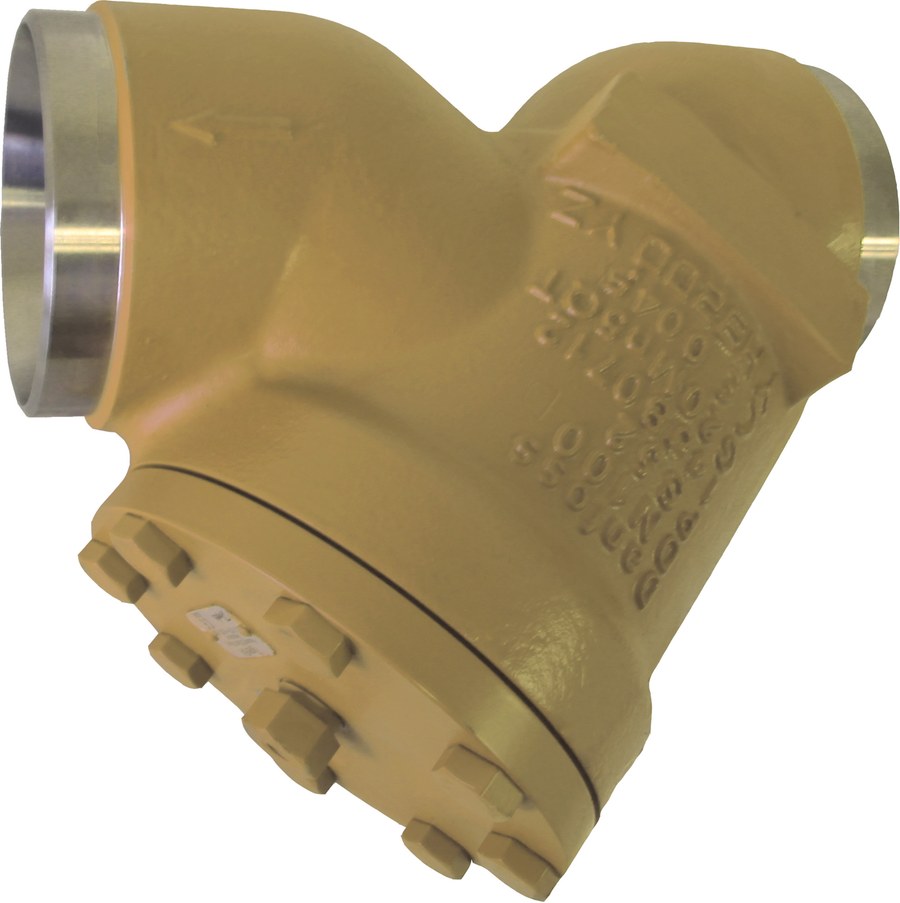

Danfoss FIA 150 straightway strainer housing, 150 mm (6 in) butt weld ASME, steel, 65 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss FIA 150 strainer housing for industrial refrigeration, code 148B6672. FIA strainers protect downstream valves, pumps and controls from weld slag, scale and debris in HCFC, HFC, R717 (ammonia) and R744 (CO2) systems. This SKU is the straightway housing with 150 mm (6 in) butt weld connections to ASME B 36.10M SCHEDULE 40; the filter insert (150 / 250 / 500 micron, plain or pleated) is ordered separately. Maximum working pressure 65 bar (943 psig); media temperature range -60 to 150 C (-76 to 302 F). Steel construction with bolted cover for insert service.
Technical Specifications
- Type
- Strainer housing, FIA 150
- Code number
- 148B6672
- Function
- Refrigeration line strainer housing (insert ordered separately)
- Nominal size
- 150 mm (6 in)
- Flow direction
- Straightway
- Connection
- Butt weld
- Connection standard
- ASME B 36.10M SCHEDULE 40
- Body material
- Steel
- Equipment
- Cover (bolted)
- Flow coefficient
- Kv 276.9 m3/h (150 micron plain) up to 362.1 m3/h (150 micron pleated)
- Filter inserts
- 150 / 250 / 500 micron, plain or pleated (separate code)
- Maximum working pressure
- 65 bar (943 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Applicable media
- HCFC, HFC, R717 (ammonia), R744 (CO2)
- Conformity assessment
- PED category III
- Approvals
- CE
- EAN
- 5702428507707
- Net weight
- 29.5 Kilogram
- Product group
- Strainers
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Yes
- Colour Paint
- Yellow
- Connection Code
- (2002:S40:150)
- Connection material
- Steel
- Cv value [gal/min] 100 plain
- 1219.15 gal/min
- Cv value [gal/min] 100 pleated
- 1594.28 gal/min
- Cv value [gal/min] 38 plain
- 1319.54 gal/min
- Cv value [gal/min] 72 plain
- 1256.58 gal/min
- Direction
- Straightway
- EU RoHS compliance
- Yes
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Inlet connection size [in]
- 6 in
- Inlet connection size [mm]
- 150 mm
- Inlet connection type
- Butt weld
- Kv value [m3/h] µ150 plain
- 276.9 m³/h
- Kv value [m3/h] µ150 pleated
- 362.1 m³/h
- Kv value [m3/h] µ250 plain
- 285.4 m³/h
- Kv value [m3/h] µ500 plain
- 299.7 m³/h
- Max. Working Pressure [bar]
- 65 bar
- Max. Working Pressure [psig]
- 943 psig
- Outlet connection size [in]
- 6 in
- Outlet connection size [mm]
- 150 mm
- Outlet connection type
- Butt weld
- PED category
- III
- REACH Candidate List substances
- No
- Refrigerants
- R113
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -76 °F
- Valve version
- Standard version
Standards & Compliance
- Size / Series
- 150 mm
- Material
- Steel
- Pressure Rating
- 65 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8421.39
Compatibility & Fitment
Danfoss FIA 150 strainer housing. Select by nominal size (150 mm / 6 in), flow direction (straightway) and connection standard (ASME B 36.10M SCHEDULE 40). The filter insert (150 / 250 / 500 micron, plain or pleated) is a separate code chosen for the required filtration and pressure drop. EN (DIN) and ASME weld-end variants are separate codes.
