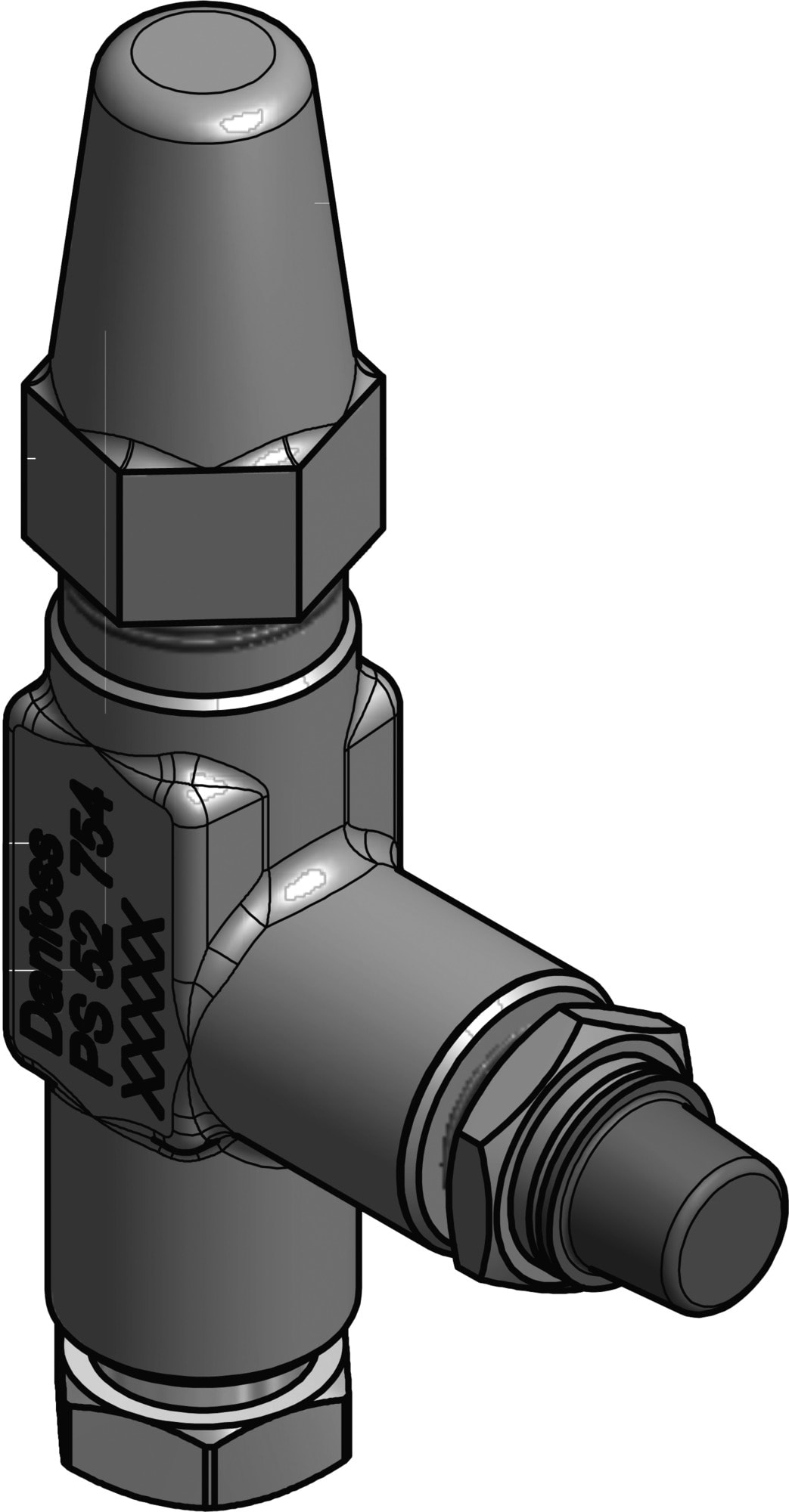

Danfoss SNV-ST angleway stop / gauge needle valve, 3/8 in npt thread ANSI/ASME B1.20.1, steel, 52 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss SNV-ST angleway stop / gauge needle valve for industrial refrigeration, code 148B6607. Steel body with npt thread connections to ANSI/ASME B1.20.1, nominal size 3/8 in. Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). Stop needle valve for mounting pressure gauges and instruments; the fine needle spindle gives tight isolation and throttled bleed. Part of the Danfoss SVL Flexline programme. For HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) systems.
Technical Specifications
- Type
- SNV-ST stop / gauge needle valve (SVL Flexline)
- Code number
- 148B6607
- Series
- SNV-ST
- Direction
- Angleway
- Connection type
- NPT thread
- Connection standard
- ANSI/ASME B1.20.1
- Nominal size
- 3/8 in
- Body material
- Steel
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- PED assessment
- Article 4, paragraph 3 (sound engineering practice)
- Approvals
- EAC
- EAN
- 5702428989602
- Inlet connection type
- NPT
- Outlet connection type
- NPT
- Inlet connection size [in]
- 3/8
- Gross weight
- 0.56 Kilogram
- Net weight
- 0.559 Kilogram
- Volume
- 0.884 Liter
- Product group
- Shut-off and regulating valves
- Product Name Description
- Gauge valve
- Approval
- EAC
- China RoHS compliance
- Yes
- Colour Paint
- Cr3 / TLP
- EU RoHS compliance
- Yes
- Fluid Group
- 1
- Inlet Internal/External
- Internal
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 754 psig
- Outlet connection size [in]
- 3/8
- Outlet Internal/External
- Internal
- PED category
- Art. 4, par. 3
- REACH Candidate List substances
- No
- Refrigerants
- R113
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -76 °F
- Valve version
- Standard version
Standards & Compliance
- Standard
- ANSI/ASME B1.20.1
- Size / Series
- 3/8 mm
- Material
- Steel
- Thread Standard
- ANSI/ASME B1.20.1
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss SVL Flexline SNV-ST valve. This code is the angleway SNV-ST with npt thread (ANSI/ASME B1.20.1) ends. Confirm line size (3/8 in), connection type/standard, direction (angleway) and refrigerant before ordering.
