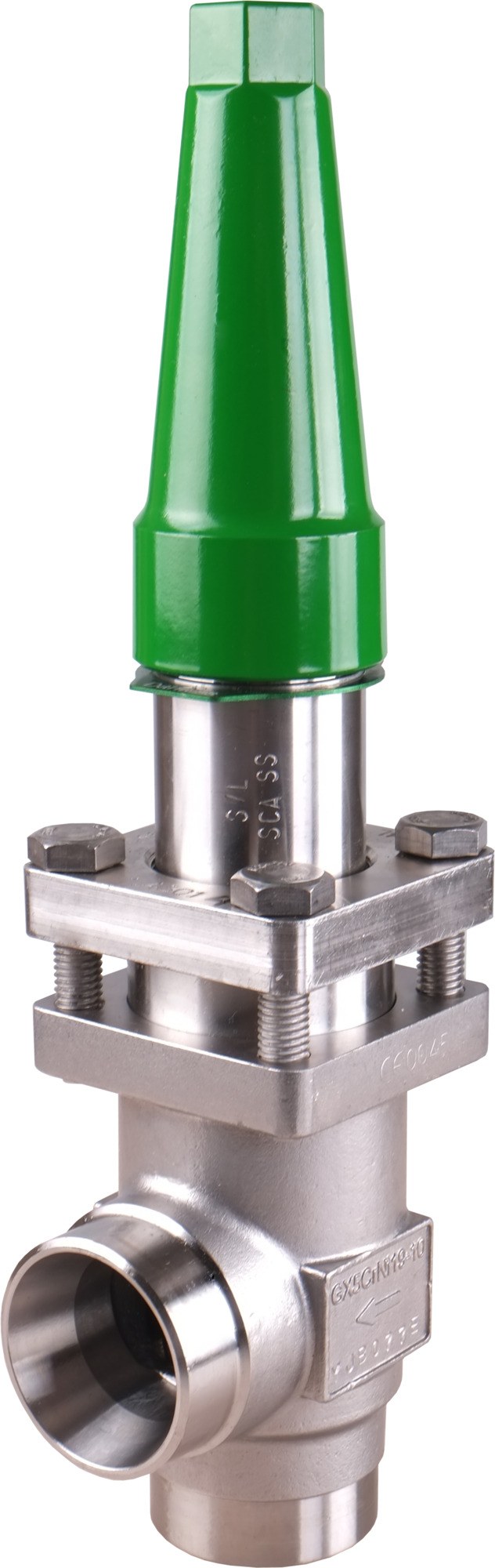

Danfoss SCA-X SS 40 angleway check and stop valve, cap, 40 mm (1 1/2 in) butt weld EN 10220, stainless steel, 52 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss SCA-X SS 40 combined check and stop valve, store code 148B5664, angleway stainless steel body, fitted with a cap. The SCA-X in the Danfoss SVL Flexline range combines a spring-loaded check function with a manual shut-off, so one valve both prevents reverse flow and isolates the line for service in industrial refrigeration plant. Applicable to R717 (ammonia), R744 (CO2) and fluorinated refrigerants and their oils. Nominal size 40 mm (1 1/2 in), butt weld connections to EN 10220; flow coefficient Kv 30 m3/h (Cv 34.8 gal/min). Stainless steel housing. Maximum working pressure 52 bar g (754 psig); media temperature -60 to 150 C (-76 to 302 F). Conformity assessment PED 2014/68/EU, Category II. Specifications per Danfoss store code 148B5664. EAN 5702428842907.
Technical Specifications
- Type
- SCA-X SS 40 check and stop valve (SVL Flexline)
- Code number
- 148B5664
- Nominal size
- 40 mm (1 1/2 in)
- Flow direction body
- Angleway
- Connection
- butt weld both ends, EN 10220
- Flow
- one-way check (reverse-flow prevention)
- Top equipment
- Cap
- Neck type
- Standard
- Flow coefficient Kv
- 30 m3/h (Cv 34.8 gal/min)
- Housing material
- stainless steel
- Net weight
- 3.488 kg
- Maximum working pressure
- 52 bar g (754 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Applicable media
- R717 (ammonia), R744 (CO2), HFC/HCFC refrigerants and oils
- Conformity assessment
- PED 2014/68/EU, Category II
- Approvals
- CE
- EAN
- 5702428842907
- Product group
- Check valves
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Yes
- Colour Paint
- Reddish brown
- Connection Code
- (2501:D26:40)
- Connection material
- Stainless steel
- Connection standard
- EN 10220
- Cv value [gal/min]
- 34.8 gal/min
- Direction
- Angleway
- Equipment
- Cap
- EU RoHS compliance
- Yes
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Inlet connection size [in]
- 1 1/2 in
- Inlet connection size [mm]
- 40 mm
- Inlet connection type
- Butt weld
- Kv value [m³/h]
- 30 m³/h
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 754 psig
- MinODP [bar]
- 0.04 bar
- MinODP [psi]
- 0.62 psi
- Outlet connection size [in]
- 1 1/2 in
- Outlet connection size [mm]
- 40 mm
- Outlet connection type
- Butt weld
- PED category
- II
- REACH Candidate List substances
- No
- Refrigerants
- R134a
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -76 °F
- Valve version
- Standard version
Standards & Compliance
- Standard
- EN 10220
- Size / Series
- 40 mm
- Material
- Stainless steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8481.30
Compatibility & Fitment
Danfoss SVL Flexline SCA-X SS 40. Select by flow direction (angleway), connection (butt weld EN 10220) and top. EN 10220 and ASME weld-end preparations are not interchangeable — confirm the mating pipe schedule/OD before ordering. Shares the SVL Flexline platform with SVA-S/SVA-L shut-off, REG-SA/REG-SB regulating, SCA-X/CHV-X check valves and FIA strainers of the same nominal size.
