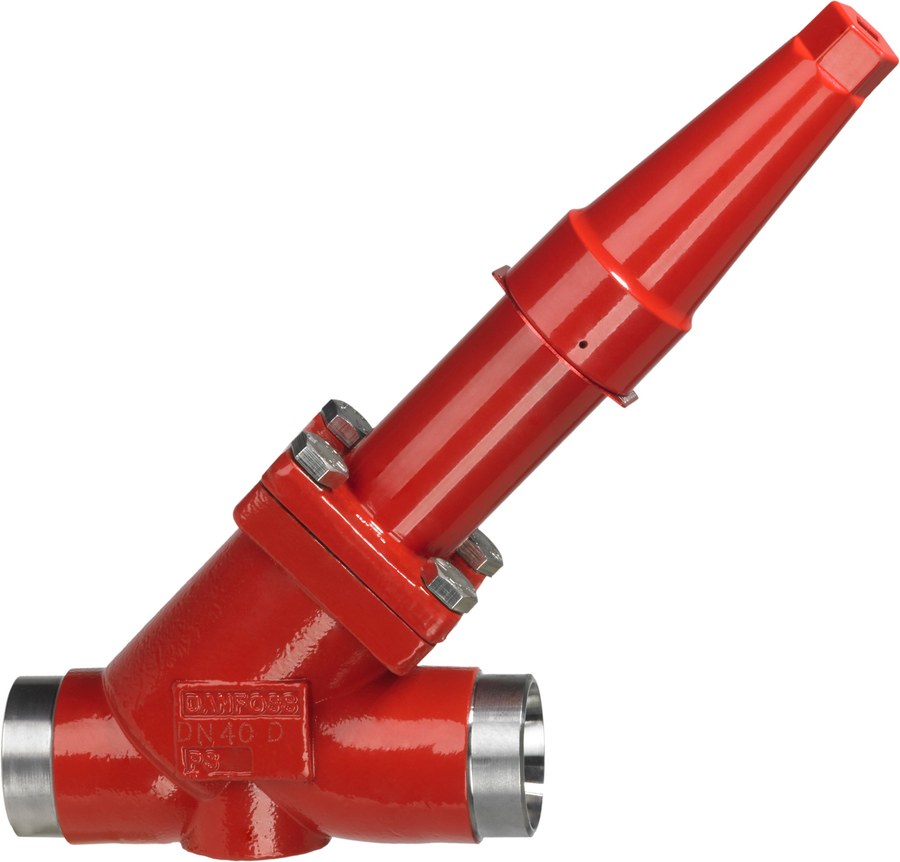

Danfoss SVA-L 40 straightway shut-off (stop) valve, cap, 40 mm (1 1/2 in) socket weld ASME B 16.11, steel, 52 bar (code 148B5673)
Danfoss · HVAC & Refrigeration · Globe Valves
Danfoss SVA-L 40 hand-operated shut-off (stop) valve, store code 148B5673, straightway steel body, fitted with a cap. The SVA-L is a shut-off valve in the Danfoss SVL Flexline range for industrial refrigeration, used to isolate liquid, suction, hot-gas and oil lines. The globe-pattern body uses a back-seating spindle so the packing can be serviced while the plant stays in operation; shut-off is bi-directional (bi-flow). Applicable to R717 (ammonia), R744 (CO2) and fluorinated refrigerants and their oils. Nominal size 40 mm (1 1/2 in), socket weld connections to ASME B 16.11; flow coefficient Kv 31.6 m3/h (Cv 36.66 gal/min). Steel housing. Maximum working pressure 52 bar g (754 psig); media temperature -60 to 150 C (-76 to 302 F). Conformity assessment PED 2014/68/EU, Category II. Specifications per Danfoss store code 148B5673. EAN 5702428469609.
Specifications
- Part number
- 148B5673
- HS code
- 8481.80
- Material
- Steel
- Pressure rating
- 52 bar
- Temperature range
- -60 to 150 C
- Standard
- ASME B 16.11
- Standard size
- 40 mm
Compatibility
Danfoss SVL Flexline SVA-L 40. Select by flow direction (straightway), connection (socket weld ASME B 16.11) and top. EN 10220 and ASME weld-end preparations are not interchangeable — confirm the mating pipe schedule/OD before ordering. Shares the SVL Flexline platform with SVA-S/SVA-L shut-off, REG-SA/REG-SB regulating, SCA-X/CHV-X check valves and FIA strainers of the same nominal size.
Standards
- ASME B 16.11
- PED 2014/68/EU
Approvals
