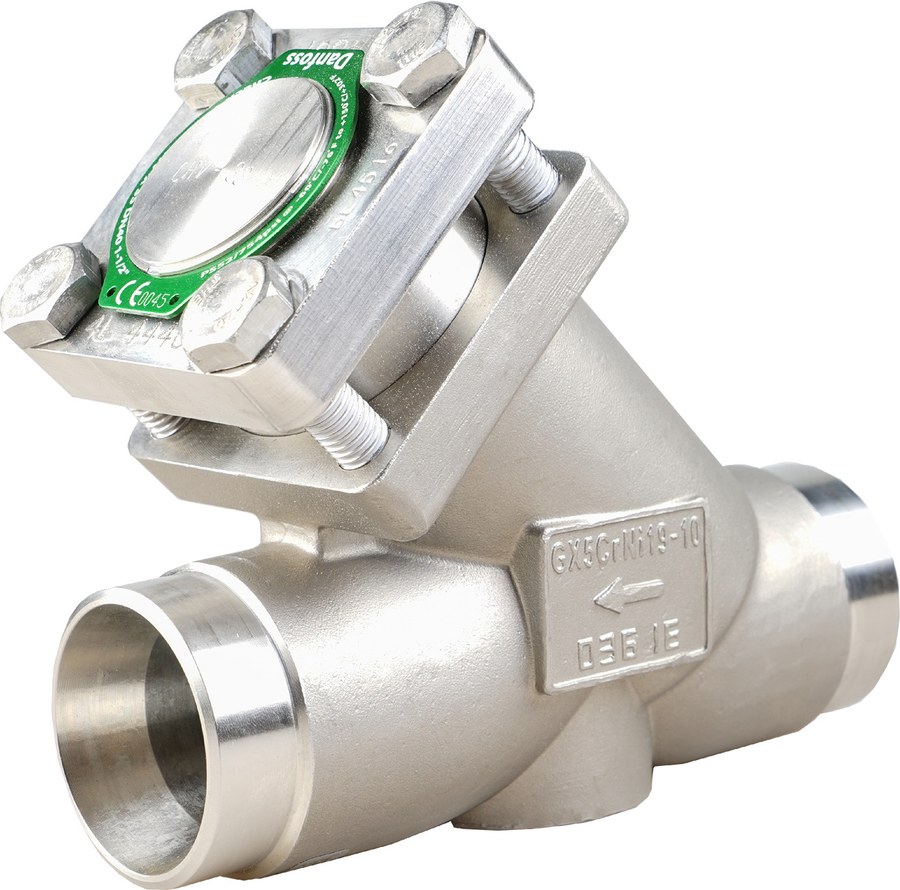

Danfoss CHV-X SS 25 straightway check valve, 25 mm (1 in) butt weld EN 10220, stainless steel, 52 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss CHV-X SS 25 check (non-return) valve, store code 148B5680, straightway stainless steel body. The CHV-X is a spring-loaded check valve in the Danfoss SVL Flexline range that prevents reverse flow of refrigerant in liquid, suction and hot-gas lines; opening differential pressure 0.04 bar. Applicable to R717 (ammonia), R744 (CO2) and fluorinated refrigerants and their oils. Nominal size 25 mm (1 in), butt weld connections to EN 10220; flow coefficient Kv 16 m3/h (Cv 18.6 gal/min). Stainless steel housing. Maximum working pressure 52 bar g (754 psig); media temperature -60 to 150 C (-76 to 302 F). Conformity assessment PED 2014/68/EU Article 4, paragraph 3 (sound engineering practice). Specifications per Danfoss store code 148B5680. EAN 5702428890656.
Technical Specifications
- Type
- CHV-X SS 25 check valve (SVL Flexline)
- Code number
- 148B5680
- Nominal size
- 25 mm (1 in)
- Flow direction body
- Straightway
- Connection
- butt weld both ends, EN 10220
- Flow
- one-way check (reverse-flow prevention)
- Flow coefficient Kv
- 16 m3/h (Cv 18.6 gal/min)
- Housing material
- stainless steel
- Net weight
- 1.28 kg
- Maximum working pressure
- 52 bar g (754 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Applicable media
- R717 (ammonia), R744 (CO2), HFC/HCFC refrigerants and oils
- Conformity assessment
- PED 2014/68/EU Art. 4, par. 3
- Approvals
- CE
- EAN
- 5702428890656
- Product group
- Check valves
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Yes
- Colour Paint
- Reddish brown
- Connection Code
- (2501:D26:25)
- Connection material
- Stainless steel
- Connection size [in]
- 1 in
- Connection size [mm]
- 25 mm
- Connection standard
- EN 10220
- Connection type
- Butt weld
- Cv value [gal/min]
- 18.6 gal/min
- Direction
- Straightway
- EU RoHS compliance
- Yes
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Kv value [m³/h]
- 16 m³/h
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 754 psig
- MinODP [bar]
- 0.04 bar
- MinODP [psi]
- 0.62 psi
- PED category
- Art. 4, par. 3
- REACH Candidate List substances
- No
- Refrigerants
- R134a
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -76 °F
Standards & Compliance
- Standard
- EN 10220
- Size / Series
- 25 mm
- Material
- Stainless steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8481.30
Compatibility & Fitment
Danfoss SVL Flexline CHV-X SS 25. Select by flow direction (straightway), connection (butt weld EN 10220) and top. EN 10220 and ASME weld-end preparations are not interchangeable — confirm the mating pipe schedule/OD before ordering. Shares the SVL Flexline platform with SVA-S/SVA-L shut-off, REG-SA/REG-SB regulating, SCA-X/CHV-X check valves and FIA strainers of the same nominal size.
