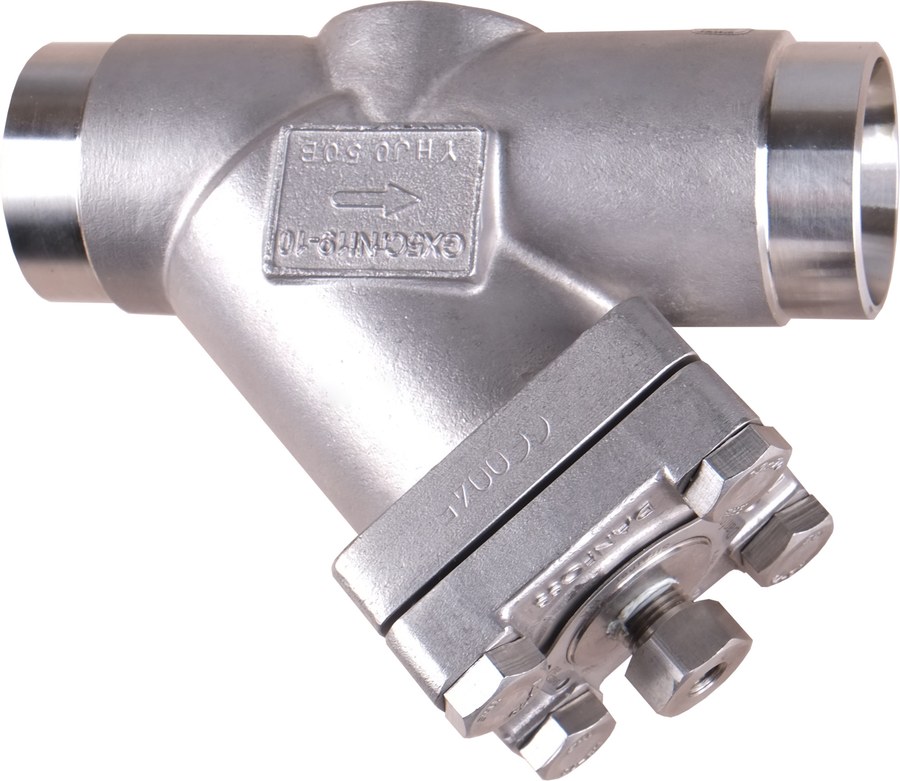

Danfoss FIA SS 40 straightway strainer, cover, 40 mm (1 1/2 in) butt weld EN 10220, stainless steel, 52 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss FIA SS 40 strainer, store code 148B5667, straightway stainless steel body with removable filter insert. The FIA in the Danfoss SVL Flexline range protects downstream components in industrial refrigeration systems by trapping particles; the insert is serviceable without removing the housing from the line. Applicable to R717 (ammonia), R744 (CO2) and fluorinated refrigerants and their oils. Nominal size 40 mm (1 1/2 in), butt weld connections to EN 10220; flow coefficient Kv 19.2 m3/h (clean, µ100 mesh; Cv 84.54 gal/min). Stainless steel housing. Maximum working pressure 52 bar g (754 psig); media temperature -60 to 150 C (-76 to 302 F). Conformity assessment PED 2014/68/EU, Category II. Specifications per Danfoss store code 148B5667. EAN 5702428842938.
Technical Specifications
- Type
- FIA SS 40 strainer (SVL Flexline)
- Code number
- 148B5667
- Nominal size
- 40 mm (1 1/2 in)
- Flow direction body
- Straightway
- Connection
- butt weld both ends, EN 10220
- Flow
- bi-directional (bi-flow)
- Top equipment
- Cover
- Flow coefficient Kv
- 19.2 m3/h (µ100 mesh, clean)
- Housing material
- stainless steel
- Net weight
- 2.65 kg
- Maximum working pressure
- 52 bar g (754 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Applicable media
- R717 (ammonia), R744 (CO2), HFC/HCFC refrigerants and oils
- Conformity assessment
- PED 2014/68/EU, Category II
- Approvals
- CE
- EAN
- 5702428842938
- Product group
- Strainers
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Yes
- Colour Paint
- Reddish brown
- Connection Code
- (2501:D26:40)
- Connection material
- Stainless steel
- Connection standard
- EN 10220
- Cv value [gal/min] 100 plain
- 85.86 gal/min
- Cv value [gal/min] 100 pleated
- 112.27 gal/min
- Cv value [gal/min] 150 plain
- 84.54 gal/min
- Cv value [gal/min] 38 plain
- 94.66 gal/min
- Cv value [gal/min] 72 plain
- 88.94 gal/min
- Cv value [gal/min] 72 pleated
- 116.24 gal/min
- Direction
- Straightway
- Equipment
- Cover
- EU RoHS compliance
- Yes
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Inlet connection size [in]
- 1 1/2 in
- Inlet connection size [mm]
- 40 mm
- Inlet connection type
- Butt weld
- Kv value [m3/h] µ100 plain
- 19.2 m³/h
- Kv value [m3/h] µ150 plain
- 19.5 m³/h
- Kv value [m3/h] µ150 pleated
- 25.5 m³/h
- Kv value [m3/h] µ250 plain
- 20.2 m³/h
- Kv value [m3/h] µ250 pleated
- 26.4 m³/h
- Kv value [m3/h] µ500 plain
- 21.5 m³/h
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 754 psig
- Outlet connection size [in]
- 1 1/2 in
- Outlet connection size [mm]
- 40 mm
- Outlet connection type
- Butt weld
- PED category
- II
- REACH Candidate List substances
- No
- Refrigerants
- R113
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -76 °F
- Valve version
- Standard version
Standards & Compliance
- Standard
- EN 10220
- Size / Series
- 40 mm
- Material
- Stainless steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8421.39
Compatibility & Fitment
Danfoss SVL Flexline FIA SS 40. Select by flow direction (straightway), connection (butt weld EN 10220) and top. EN 10220 and ASME weld-end preparations are not interchangeable — confirm the mating pipe schedule/OD before ordering. Shares the SVL Flexline platform with SVA-S/SVA-L shut-off, REG-SA/REG-SB regulating, SCA-X/CHV-X check valves and FIA strainers of the same nominal size.
