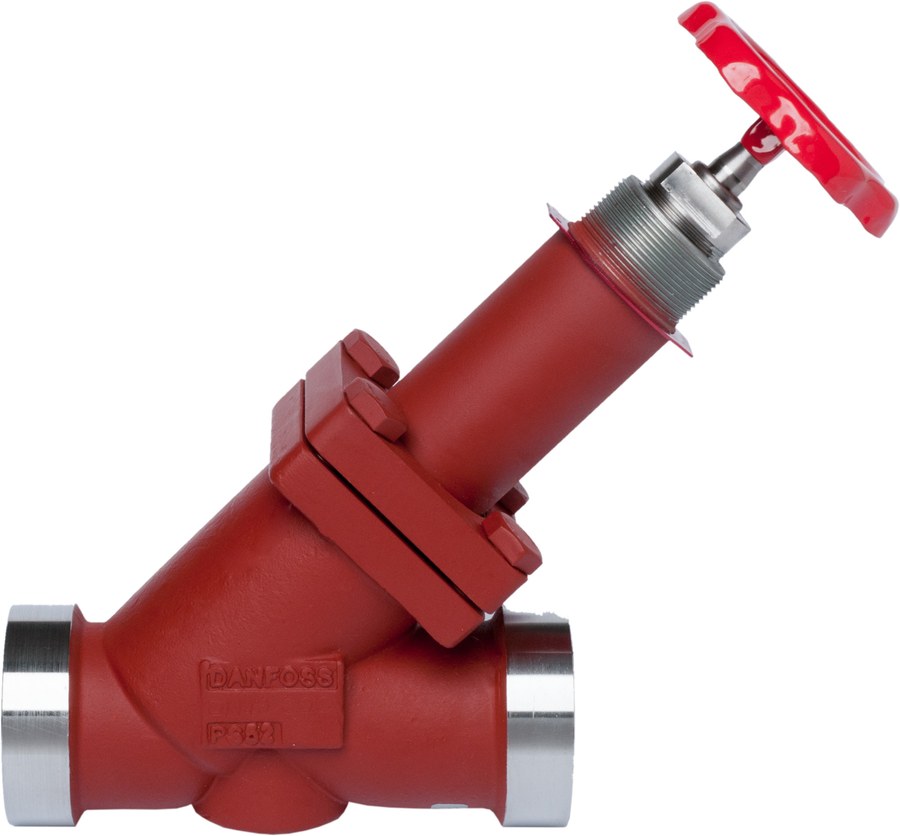

Danfoss SVA-L 40 straightway shut-off (stop) valve, hand wheel, 40 mm (1 1/2 in) socket weld ASME B 16.11, steel, 52 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss SVA-L 40 hand-operated shut-off (stop) valve, store code 148B5672, straightway steel body, fitted with a handwheel. The SVA-L is a shut-off valve in the Danfoss SVL Flexline range for industrial refrigeration, used to isolate liquid, suction, hot-gas and oil lines. The globe-pattern body uses a back-seating spindle so the packing can be serviced while the plant stays in operation; shut-off is bi-directional (bi-flow). Applicable to R717 (ammonia), R744 (CO2) and fluorinated refrigerants and their oils. Nominal size 40 mm (1 1/2 in), socket weld connections to ASME B 16.11; flow coefficient Kv 31.6 m3/h (Cv 36.66 gal/min). Steel housing. Maximum working pressure 52 bar g (754 psig); media temperature -60 to 150 C (-76 to 302 F). Conformity assessment PED 2014/68/EU, Category II. Specifications per Danfoss store code 148B5672. EAN 5702428469593.
Technical Specifications
- Type
- SVA-L 40 shut-off (stop) valve (SVL Flexline)
- Code number
- 148B5672
- Nominal size
- 40 mm (1 1/2 in)
- Flow direction body
- Straightway
- Connection
- socket weld both ends, ASME B 16.11
- Flow
- bi-directional (bi-flow)
- Top equipment
- Handwheel
- Neck type
- Long
- Flow coefficient Kv
- 31.6 m3/h (Cv 36.66 gal/min)
- Housing material
- steel
- Net weight
- 5.013 kg
- Maximum working pressure
- 52 bar g (754 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Applicable media
- R717 (ammonia), R744 (CO2), HFC/HCFC refrigerants and oils
- Conformity assessment
- PED 2014/68/EU, Category II
- Approvals
- CE, EAC
- EAN
- 5702428469593
- Product group
- Shut-off and regulating valves
- Approval
- CE
- Body material
- Steel
- CE mark
- Yes
- China RoHS compliance
- Yes
- Colour Paint
- Reddish brown
- Connection material
- Steel
- Connection standard
- ASME B 16.11
- Cv value [gal/min]
- 36.66 gal/min
- Direction
- Straightway
- Equipment
- Handwheel
- EU RoHS compliance
- Yes
- Flow direction
- Bi-flow
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Inlet connection size [in]
- 1 1/2 in
- Inlet connection size [mm]
- 40 mm
- Inlet connection type
- Socket weld
- Kv value [m³/h]
- 31.6 m³/h
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 754 psig
- Neck
- Long
- Outlet connection size [in]
- 1 1/2 in
- Outlet connection size [mm]
- 40 mm
- Outlet connection type
- Socket weld
- PED category
- II
- REACH Candidate List substances
- No
- Refrigerants
- R113
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -76 °F
- Valve version
- Standard version
Standards & Compliance
- Standard
- ASME B 16.11
- Size / Series
- 40 mm
- Material
- Steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss SVL Flexline SVA-L 40. Select by flow direction (straightway), connection (socket weld ASME B 16.11) and top. EN 10220 and ASME weld-end preparations are not interchangeable — confirm the mating pipe schedule/OD before ordering. Shares the SVL Flexline platform with SVA-S/SVA-L shut-off, REG-SA/REG-SB regulating, SCA-X/CHV-X check valves and FIA strainers of the same nominal size.
