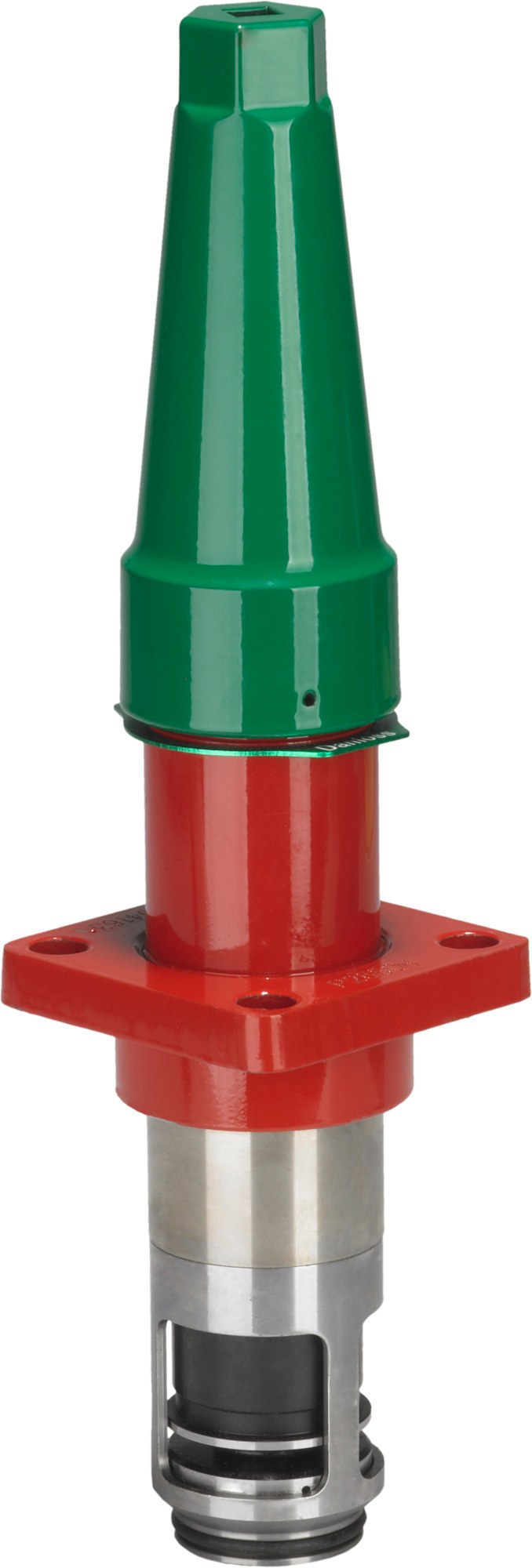

Danfoss SCA-X 65 function module (Top Complete), fits SVL Flexline SCA-X 65 stop/check valve, 52 bar (code 148B5825)
Danfoss · HVAC & Refrigeration · Check Valves
Danfoss SCA-X 65 function module (also called Top Complete) for the SVL Flexline modular industrial-refrigeration platform, store code 148B5825. The function module is the complete field-serviceable combined non-return (check) plus manual stop operating top part — supplied as the top part with one gasket and the mounting bolts — that fits the matching SCA-X 65 stop/check valve housing. It gives the combined check (non-return) plus manual shut-off function so the line can be positively closed for service while still protecting against reverse flow. It is the repair/replacement assembly, not a complete valve and not a loose gasket, so the function can be renewed without cutting the housing out of the line. For R717 (ammonia), R744 (CO2) and fluorinated refrigerants and their oils. Maximum working pressure 52 bar g (754 psig); media temperature -60 to 150 C (-76 to 302 F). net weight 2.802 kg, gross weight 4.348 kg. Specifications per Danfoss store code 148B5825.
Specifications
- Part number
- 148B5825
- HS code
- 8481.90
- Material
- Steel
- Pressure rating
- 52 bar
- Temperature range
- -60 to 150 C
Compatibility
Danfoss SVL Flexline SCA-X 65 function module (Top Complete). Mounts on the matching SCA-X 65 stop/check valve housing of the same nominal-size class. Function modules are size-specific — confirm the housing size class (65) before ordering. Shares the SVL Flexline platform with SVA-S/SVA-L shut-off, REG regulating, SCA-X/CHV-X check and FIA strainer components of the same size.
Standards
Approvals
