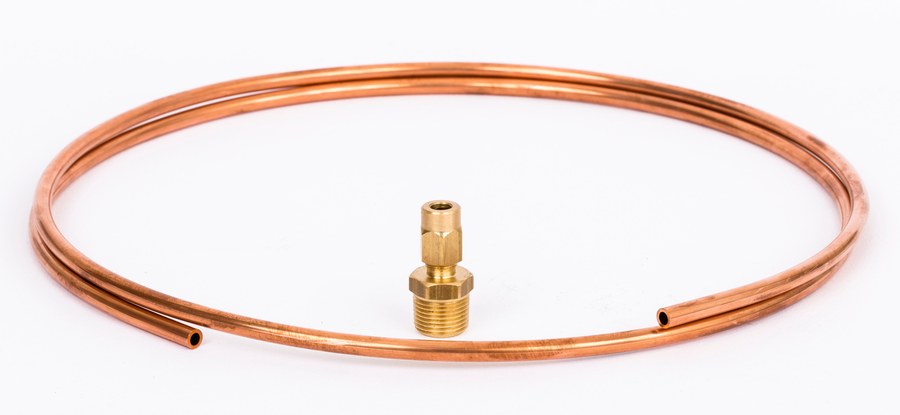

Danfoss impulse tube, Ø6 mm copper, 1500 mm, thread R 1/8, for OF(P)QM (T), self-acting-controller spare
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss impulse tubes (003H6852) — genuine PN 25 accessory for the Danfoss self-acting controller range (ø6 mm copper impulse (pressure-signal) tube). Fits Danfoss OF(P)QM (T) valves/controllers. Connection thread R 1/8. Material Copper Cu-DHP CW024A H040. For district heating/cooling circulation water at PN 25. OEM designation "Impulse tube set OF R 1/8##,fi 6x1,5m". Net weight 0.342 kg, gross 0.362 kg. OEM P/N 003H6852. EAN 5702421541555. Technical data quoted verbatim from store.danfoss.com (code 003H6852).
Technical Specifications
- Code number
- 003H6852
- Type
- Impulse tubes
- Product group
- Accessories — SAC (self-acting controllers)
- For product type
- AV(P)QM (T)
- Tube diameter
- Ø6 mm
- Length
- 1500 mm
- Connection thread
- R 1/8
- Function
- Transmits the controlled pressure signal from the impulse point to the controller actuator
- Pressure class
- PN 25
- Permissible media
- District heating/cooling circulation water
- Material
- Copper Cu-DHP CW024A H040
- OEM description
- Impulse tube set AV R 1/8##,fi 6x1,5m
- Volume
- 3.927 L
- Net weight
- 0.342 kg
- Gross weight
- 0.362 kg
- EAN
- 5702421541555
- HS code
- 7411.10
- Connection size
- R 1/8
- Description
- Impulse tube set AV R 1/8##,fi 6x1,5m
- Diameter [mm]
- 6 mm
- Length [mm]
- 1500 mm
- Pressure nominal [bar]
- 25 bar
- REACH Candidate List substances
- No
- Suitable for valve of diameter [mm] [Max]
- 50 mm
- Suitable for valve of diameter [mm] [Min]
- 15 mm
Standards & Compliance
- Material
- Copper Cu-DHP CW024A H040
- Pressure Rating
- PN 25
- HS Code
- 7411.10
Compatibility & Fitment
Genuine Danfoss Ø6 mm copper impulse tube (003H6852), thread R 1/8, 1500 mm, for the AV(P)QM (T) self-acting controllers. Connects the impulse point to the controller actuator; pair with the matching brass compression fittings and the correct thread size for the controller port. Pressure class PN 25.
