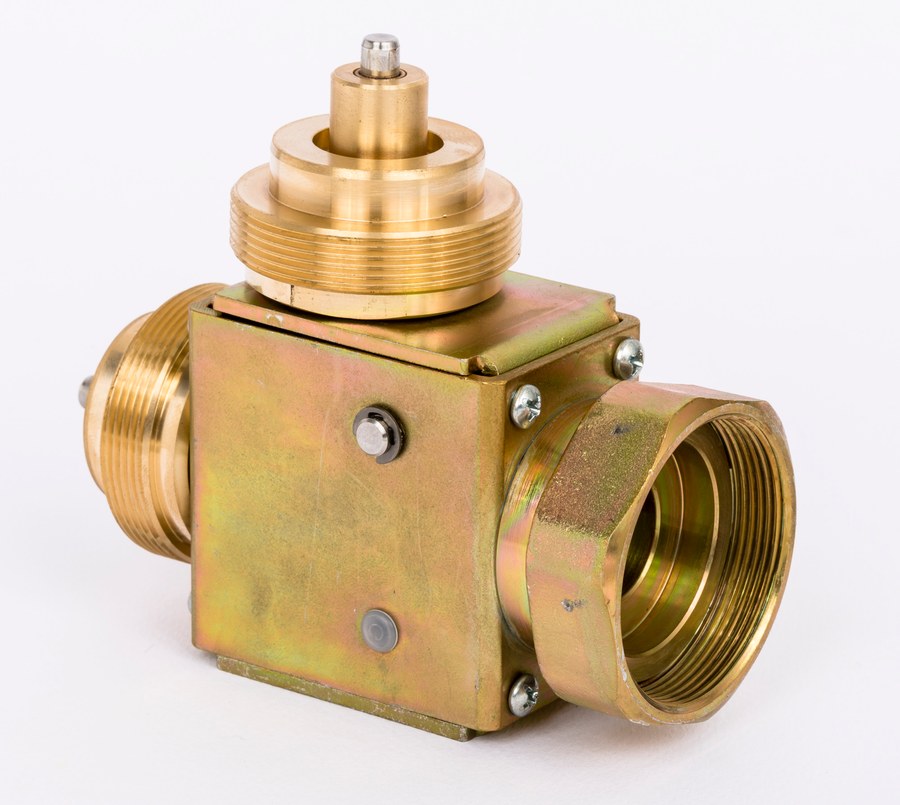

Danfoss combination piece K2, M45 / 2 × M45, ductile-iron impulse-line manifold
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss combination pieces (003H6855) — genuine PN 25 accessory for the Danfoss self-acting controller range (m45 manifold combination piece (ductile iron)). Material Ductile iron GGG 40.3. For district heating/cooling circulation water at PN 25. OEM designation "Combination Piece K2, M45 / 2 x M45". Net weight 0.998 kg. Contains lead per the REACH candidate list. OEM P/N 003H6855. EAN 5702421544440. Technical data quoted verbatim from store.danfoss.com (code 003H6855).
Technical Specifications
- Code number
- 003H6855
- Type
- Combination pieces
- Product group
- Accessories — SAC (self-acting controllers)
- Configuration
- K2, M45 / 2 × M45
- Function
- Manifold junction piece that combines/branches Ø6 mm impulse tubes to the actuator
- Pressure class
- PN 25
- Material
- Ductile iron GGG 40.3
- OEM description
- Combination Piece K2, M45 / 2 x M45
- REACH Candidate List substance
- Lead (CAS no. 7439-92-1)
- Volume
- 1.12 L
- Net weight
- 0.998 kg
- Gross weight
- 0.998 kg
- EAN
- 5702421544440
- HS code
- 7307.19
- Description
- Combination Piece K2, M45 / 2 x M45
- EU RoHS compliance
- Yes with exemptions
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
Standards & Compliance
- Material
- Ductile iron GGG 40.3
- Pressure Rating
- PN 25
- HS Code
- 7307.19
Compatibility & Fitment
Genuine Danfoss ductile-iron combination piece (003H6855) — M45 impulse-line manifold that combines/branches the Ø6 mm impulse tubes feeding the controller actuator. Match the K2 (2-way) / K3 (3-way) configuration to the impulse-line layout on site. Pressure class PN 25.
Product Documentation
More from Danfoss
Danfoss
Danfoss combination piece K3, M45 / 3 × M45, ductile-iron impulse-line manifold
003H6856
Danfoss
Danfoss compression-fitting set (10 pcs), brass, for Ø6×1 mm impulse tube, thread R 1/8
003H6857
Danfoss
Danfoss compression-fitting set (10 pcs), brass, for Ø6×1 mm impulse tube, thread R 3/8
003H6858
Danfoss

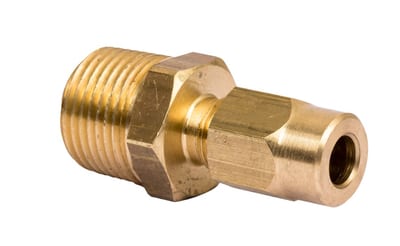

Danfoss compression-fitting set (10 pcs), brass, for Ø6×1 mm impulse tube, thread R 1/2
003H6859
Danfoss

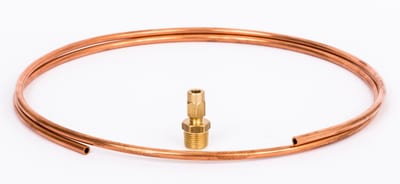

Danfoss impulse tube, Ø6 mm copper, 1500 mm, for OF(P)QM (T), self-acting-controller spare
003H6860
Danfoss

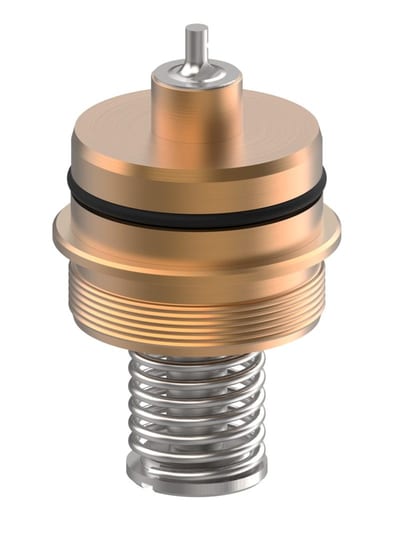

Danfoss valve insert, PN 25, for AV(P)QM (T), DN 15, Kvs 0.4 m³/h, globe-valve spare
