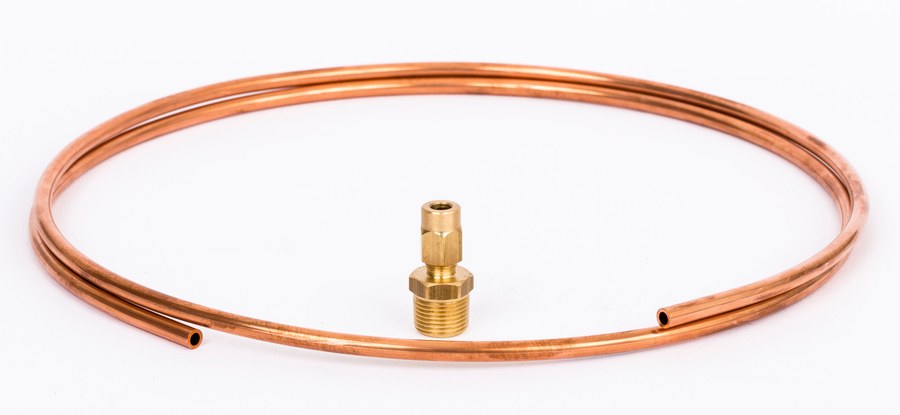

Danfoss impulse tube, Ø6 mm copper, 1500 mm, for OF(P)QM (T), self-acting-controller spare
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss impulse tubes (003H6860) — genuine PN 25 accessory for the Danfoss self-acting controller range (ø6 mm copper impulse (pressure-signal) tube). Fits Danfoss OF(P)QM (T) valves/controllers. Material COPPER. For district heating/cooling circulation water at PN 25. OEM designation "Imp.tube for press.red.for OF range,1,5m". Net weight 0.168 kg. Contains lead per the REACH candidate list. OEM P/N 003H6860. EAN 5702421544426. Technical data quoted verbatim from store.danfoss.com (code 003H6860).
Technical Specifications
- Code number
- 003H6860
- Type
- Impulse tubes
- Product group
- Accessories — SAC (self-acting controllers)
- For product type
- AV(P)QM (T)
- Tube diameter
- Ø6 mm
- Length
- 1500 mm
- Function
- Transmits the controlled pressure signal from the impulse point to the controller actuator
- Pressure class
- PN 25
- Permissible media
- District heating/cooling circulation water
- Material
- COPPER
- OEM description
- Imp.tube for press.red.for AV range,1,5m
- REACH Candidate List substance
- Lead (CAS no. 7439-92-1)
- Volume
- 0.288 L
- Net weight
- 0.168 kg
- Gross weight
- 0.168 kg
- EAN
- 5702421544426
- HS code
- 7411.10
- Description
- Imp.tube for press.red.for AV range,1,5m
- Diameter [mm]
- 6 mm
- Length [mm]
- 1500 mm
- Pressure nominal [bar]
- 25 bar
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Suitable for valve of diameter [mm] [Max]
- 50 mm
- Suitable for valve of diameter [mm] [Min]
- 15 mm
Standards & Compliance
- Material
- COPPER
- Pressure Rating
- PN 25
- HS Code
- 7411.10
Compatibility & Fitment
Genuine Danfoss Ø6 mm copper impulse tube (003H6860), 1500 mm, for the AV(P)QM (T) self-acting controllers. Connects the impulse point to the controller actuator; pair with the matching brass compression fittings and the correct thread size for the controller port. Pressure class PN 25.
Product Documentation
More from Danfoss
Danfoss
Danfoss valve insert, PN 25, for AV(P)QM (T), DN 15, Kvs 0.4 m³/h, globe-valve spare
003H6861
Danfoss
Danfoss valve insert, PN 25, for AV(P)QM (T), DN 15, Kvs 1 m³/h, globe-valve spare
003H6862
Danfoss
Danfoss valve insert, PN 25, for AV(P)QM (T), DN 15, Kvs 1.6 m³/h, globe-valve spare
003H6863
Danfoss
Danfoss valve insert, PN 25, for AV(P)QM (T), DN 15, Kvs 2.5 m³/h, globe-valve spare
003H6864
Danfoss
Danfoss valve insert, PN 25, for AV(P)QM (T), DN 15, Kvs 4 m³/h, globe-valve spare
003H6865
Danfoss
Danfoss valve insert, PN 25, for AV(P)QM (T), DN 20, Kvs 6.3 m³/h, globe-valve spare
003H6866
Danfoss

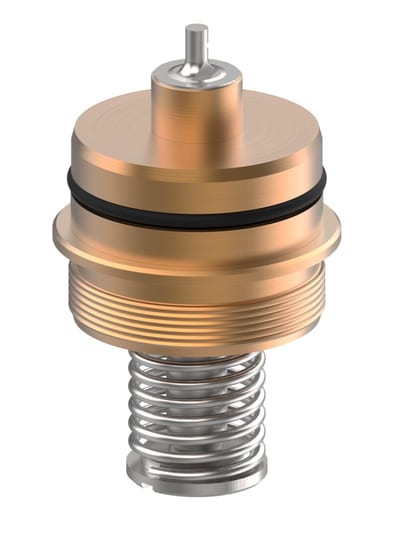

Danfoss valve insert, PN 25, for AV(P)QM (T), DN 25, Kvs 8 m³/h, globe-valve spare
003H6867
Danfoss

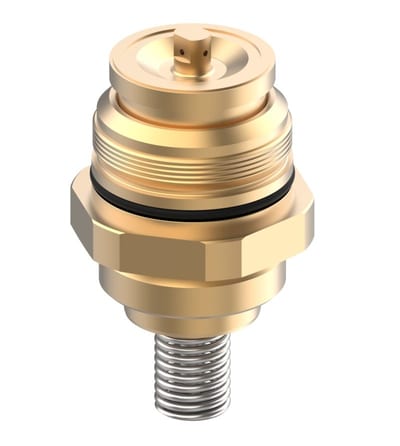

Danfoss valve insert, PN 25, for AV(P)QM (T), DN 32, globe-valve spare
