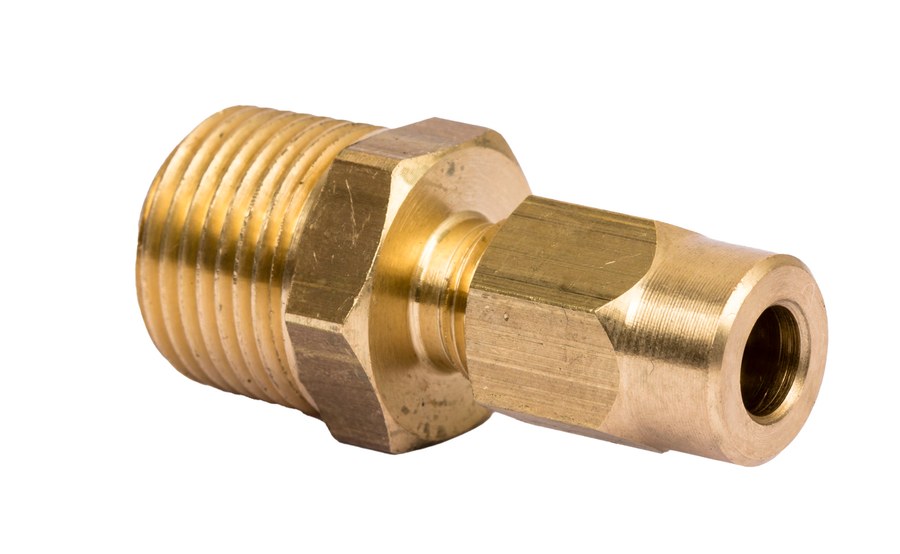

Danfoss compression-fitting set (10 pcs), brass, for Ø6×1 mm impulse tube, thread R 3/8
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss compression fittings for impulse tubes (003H6858) — genuine PN 25 accessory for the Danfoss self-acting controller range (brass compression-fitting set for ø6×1 mm impulse tube (10 pcs)). Connection thread R 3/8. Material BRASS. For district heating/cooling circulation water at PN 25. OEM designation "10 comp.fitt.imp.tube pipe fi 6x1mmR3/8". Net weight 0.428 kg, gross 0.434 kg. Contains lead per the REACH candidate list. OEM P/N 003H6858. EAN 5702421544495. Technical data quoted verbatim from store.danfoss.com (code 003H6858).
Technical Specifications
- Code number
- 003H6858
- Type
- Compression fittings for impulse tubes
- Product group
- Accessories — SAC (self-acting controllers)
- Connection thread
- R 3/8
- Pack quantity
- 10 fittings
- Suits
- Ø6 × 1 mm impulse tube
- Function
- Compression fittings that connect the Ø6 mm impulse tubes to the valve/actuator ports
- Pressure class
- PN 25
- Material
- BRASS
- OEM description
- 10 comp.fitt.imp.tube pipe fi 6x1mmR3/8
- REACH Candidate List substance
- Lead (CAS no. 7439-92-1)
- Volume
- 0.14 L
- Net weight
- 0.428 kg
- Gross weight
- 0.434 kg
- EAN
- 5702421544495
- HS code
- 7412.20
- Connection size
- R 3/8
- Description
- 10 comp.fitt.imp.tube pipe fi 6x1mmR3/8
- Pressure nominal [bar]
- 25 bar
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
Standards & Compliance
- Material
- BRASS
- Pressure Rating
- PN 25
- HS Code
- 7412.20
Compatibility & Fitment
Genuine Danfoss 10-piece brass compression-fitting set (003H6858), thread R 3/8, for Ø6 × 1 mm impulse tube. Use to connect the copper impulse tubes to the valve/actuator ports; match the thread size to the controller port. Pressure class PN 25.
