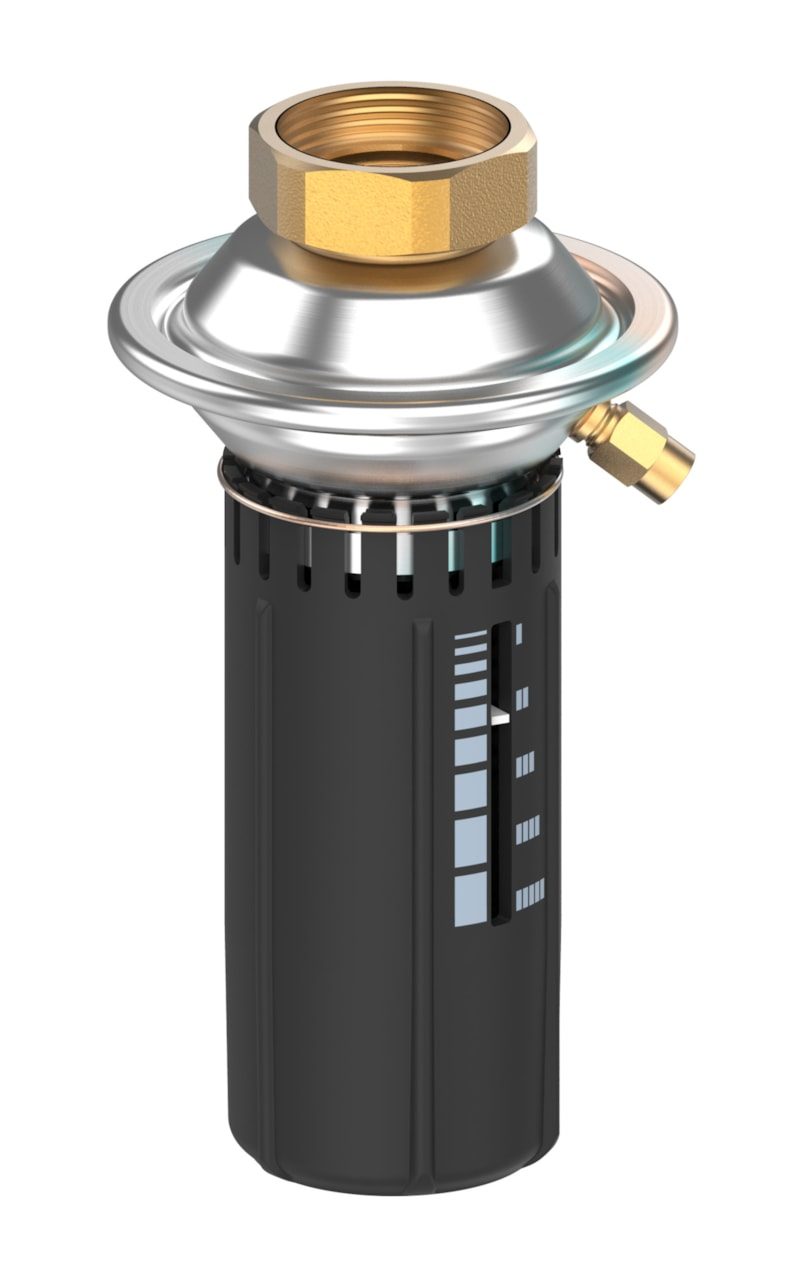

Danfoss Actuator & adjustment part, PN 25, for AVP, 0.05 – 0.5 bar setting range, return mounting, self-acting-controller spare

Danfoss actuator & adjustment part (003H6821) — genuine PN 25 spare assembly for the Danfoss self-acting controller range. It is the diaphragm actuator / setting-spring "top works" that mounts on the controller valve body: the actuator senses the controlled differential pressure through the Ø6 mm copper impulse tubes and modulates the valve cone, and the adjustment part carries the setting spring that fixes the working range. Fits Danfoss AVP controllers, return (controller installed in the return pipe). Adjustable setting range 0.05 – 0.5 bar. OEM designation "Act. & adj.part PN25 0,05-0,5 OF return". Net weight 1.28 kg. Contains lead per the REACH candidate list. OEM P/N 003H6821. EAN 5702421552599. Technical data quoted verbatim from store.danfoss.com (code 003H6821).

Code number

003H6821

Type

Actuators and adjustment parts

Item

Actuator & adjustment part

Product group

Accessories — SAC (self-acting controllers)

Function

Diaphragm actuator / setting-spring assembly for self-acting controllers (top works)

For product type

AVP

Mounting version

Return (controller installed in the return pipe)

Pressure class

PN 25

Pressure setting range

0.05 – 0.5 bar

Differential-pressure setting range

0.05 – 0.5 bar

Impulse-tube connection

Ø6 mm copper (compression fittings)

OEM description

Act. & adj.part PN25 0,05-0,5 AV return

REACH Candidate List substance

Lead (CAS no. 7439-92-1)

Volume

4.484 L

Net weight

1.28 kg

Gross weight

1.28 kg

EAN

5702421552599

HS code

8481.90

Description

Act. & adj.part PN25 0,05-0,5 AV return

Differential pressure setting [bar] [Max]

0.5 bar

Differential pressure setting [bar] [Min]

0.05 bar

Pressure setting range [bar] [Max]

0.5 bar

Pressure setting range [bar] [Min]

0.05 bar

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Pressure Rating

PN 25

HS Code

8481.90
