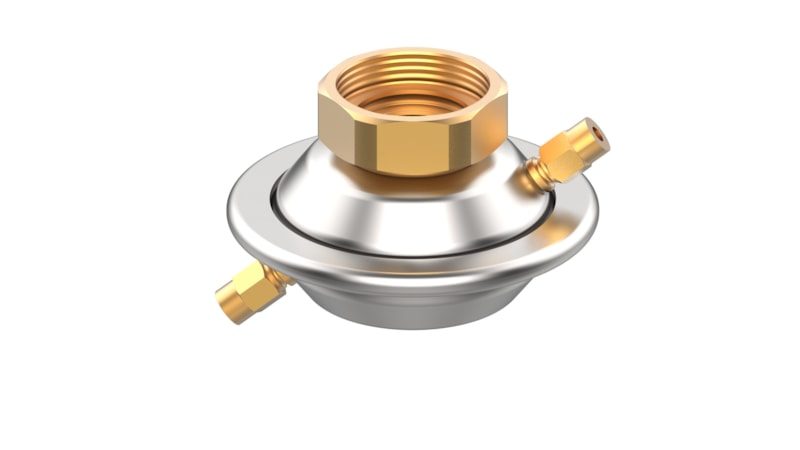

Danfoss Actuator, PN 25, for AVP-F, flow mounting, self-acting-controller spare (003H6826)
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss actuator (003H6826) — genuine PN 25 spare assembly for the Danfoss self-acting controller range. It is the diaphragm actuator / setting-spring "top works" that mounts on the controller valve body: the actuator senses the controlled differential pressure through the Ø6 mm copper impulse tubes and modulates the valve cone, and the adjustment part carries the setting spring that fixes the working range. Fits Danfoss AVP-F controllers, flow (controller installed in the flow/supply pipe). OEM designation "Actuator PN25 AVP-F flow". Net weight 1.408 kg. Contains lead per the REACH candidate list. OEM P/N 003H6826. Technical data quoted verbatim from store.danfoss.com (code 003H6826). Used in commercial refrigeration, provision-room cooling and reefer plant rooms across HFC, HFO and CO2 (R744) refrigerants.
Technical Specifications
- Code number
- 003H6826
- Type
- Actuators and adjustment parts
- Item
- Actuator
- Product group
- Accessories — SAC (self-acting controllers)
- Function
- Diaphragm actuator / setting-spring assembly for self-acting controllers (top works)
- For product type
- AVP-F
- Mounting version
- Flow (controller installed in the flow/supply pipe)
- Pressure class
- PN 25
- Impulse-tube connection
- Ø6 mm copper (compression fittings)
- OEM description
- Actuator PN25 AVP-F flow
- REACH Candidate List substance
- Lead (CAS no. 7439-92-1)
- Volume
- 4.55 L
- Net weight
- 1.408 kg
- Gross weight
- 1.408 kg
- EAN
- 5702421552698
- HS code
- 8481.90
- Description
- Actuator PN25 AVP-F flow
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
Standards & Compliance
- Pressure Rating
- PN 25
- HS Code
- 8481.90
Compatibility & Fitment
Genuine Danfoss actuator/adjustment-part spare (003H6826) for the AVP-F self-acting controller family, flow (controller installed in the flow/supply pipe). Match the controller type, mounting version to the valve body on site before ordering — the actuator top works and the valve body are ordered separately. Connects to the controlled/impulse pressure via Ø6 mm copper impulse tubes (compression fittings). Pressure class PN 25.
