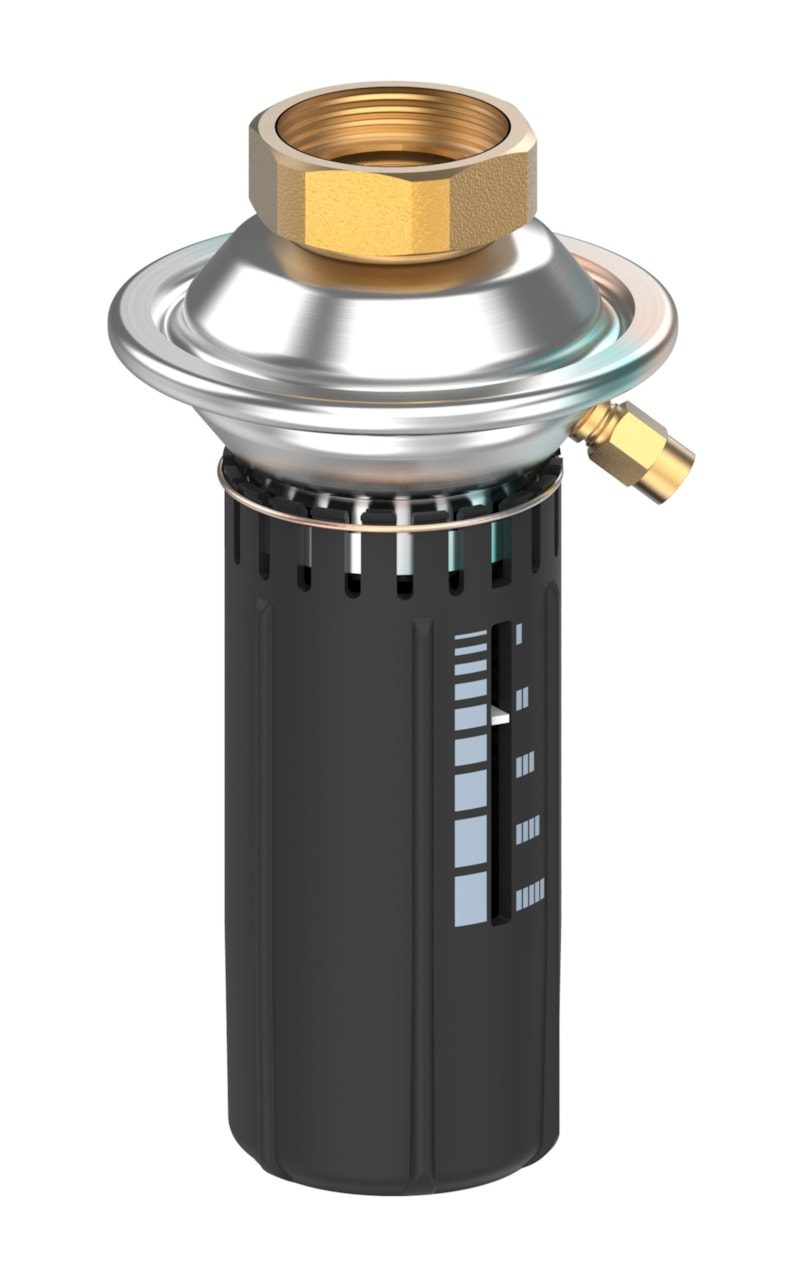

Danfoss Actuator & adjustment part, PN 25, for AVP, 0.2 – 1 bar setting range, flow mounting, self-acting-controller spare (003H6824)
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss actuator & adjustment part (003H6824) — genuine PN 25 spare assembly for the Danfoss self-acting controller range. It is the diaphragm actuator / setting-spring "top works" that mounts on the controller valve body: the actuator senses the controlled differential pressure through the Ø6 mm copper impulse tubes and modulates the valve cone, and the adjustment part carries the setting spring that fixes the working range. Fits Danfoss AVP controllers, flow (controller installed in the flow/supply pipe). Adjustable setting range 0.2 – 1 bar. OEM designation "Act. & adj.part PN25 0,2-1,0 OF flow". Net weight 1.266 kg, gross 1.788 kg. Contains lead per the REACH candidate list. OEM P/N 003H6824. EAN 5702421552650. Technical data quoted verbatim from store.danfoss.com (code 003H6824).
Technical Specifications
- Code number
- 003H6824
- Type
- Actuators and adjustment parts
- Item
- Actuator & adjustment part
- Product group
- Accessories — SAC (self-acting controllers)
- Function
- Diaphragm actuator / setting-spring assembly for self-acting controllers (top works)
- For product type
- AVP
- Mounting version
- Flow (controller installed in the flow/supply pipe)
- Pressure class
- PN 25
- Pressure setting range
- 0.2 – 1 bar
- Differential-pressure setting range
- 0.2 – 1 bar
- Impulse-tube connection
- Ø6 mm copper (compression fittings)
- OEM description
- Act. & adj.part PN25 0,2-1,0 AV flow
- REACH Candidate List substance
- Lead (CAS no. 7439-92-1)
- Volume
- 4.535 L
- Net weight
- 1.266 kg
- Gross weight
- 1.788 kg
- EAN
- 5702421552650
- HS code
- 8481.90
- Description
- Act. & adj.part PN25 0,2-1,0 AV flow
- Differential pressure setting [bar] [Max]
- 1 bar
- Differential pressure setting [bar] [Min]
- 0.2 bar
- Pressure setting range [bar] [Max]
- 1 bar
- Pressure setting range [bar] [Min]
- 0.2 bar
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
Standards & Compliance
- Pressure Rating
- PN 25
- HS Code
- 8481.90
Compatibility & Fitment
Genuine Danfoss actuator/adjustment-part spare (003H6824) for the AVP self-acting controller family, flow (controller installed in the flow/supply pipe). Match the controller type, mounting version and setting range (0.2 – 1 bar) to the valve body on site before ordering — the actuator top works and the valve body are ordered separately. Connects to the controlled/impulse pressure via Ø6 mm copper impulse tubes (compression fittings). Pressure class PN 25.
