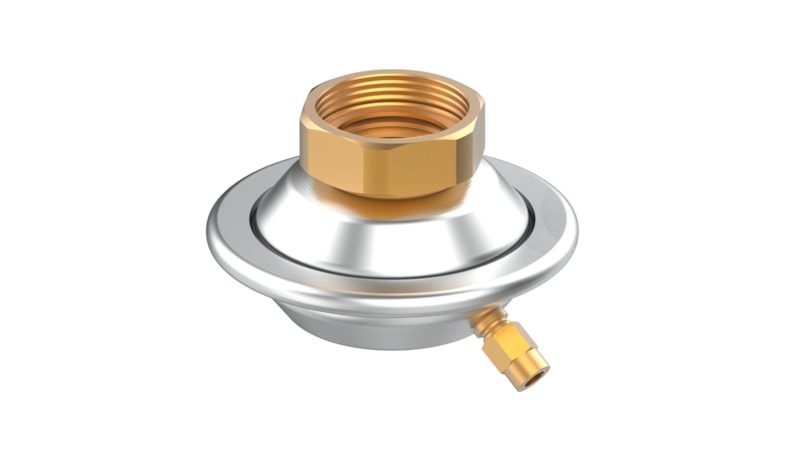

Danfoss Actuator, PN 25, for AVP-F, AVQ, AVQM, return mounting, self-acting-controller spare (003H6825)

Danfoss actuator (003H6825) — genuine PN 25 spare assembly for the Danfoss self-acting controller range. It is the diaphragm actuator / setting-spring "top works" that mounts on the controller valve body: the actuator senses the controlled differential pressure through the Ø6 mm copper impulse tubes and modulates the valve cone, and the adjustment part carries the setting spring that fixes the working range. Fits Danfoss AVP-F, AVQ, AVQM controllers, return (controller installed in the return pipe). OEM designation "Actuator PN25 AVP-F return AVQ(M)". Net weight 0.864 kg. Contains lead per the REACH candidate list. OEM P/N 003H6825. Technical data quoted verbatim from store.danfoss.com (code 003H6825). Used in commercial refrigeration, provision-room cooling and reefer plant rooms across HFC, HFO and CO2 (R744) refrigerants.

Code number

003H6825

Type

Actuators and adjustment parts

Item

Actuator

Product group

Accessories — SAC (self-acting controllers)

Function

Diaphragm actuator / setting-spring assembly for self-acting controllers (top works)

For product type

AVP-F, AVQ, AVQM

Mounting version

Return (controller installed in the return pipe)

Pressure class

PN 25

Impulse-tube connection

Ø6 mm copper (compression fittings)

OEM description

Actuator PN25 AVP-F return AVQ(M)

REACH Candidate List substance

Lead (CAS no. 7439-92-1)

Volume

4.481 L

Net weight

0.864 kg

Gross weight

0.864 kg

EAN

5702421552674

HS code

8481.90

Description

Actuator PN25 AVP-F return AVQ(M)

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Pressure Rating

PN 25

HS Code

8481.90
