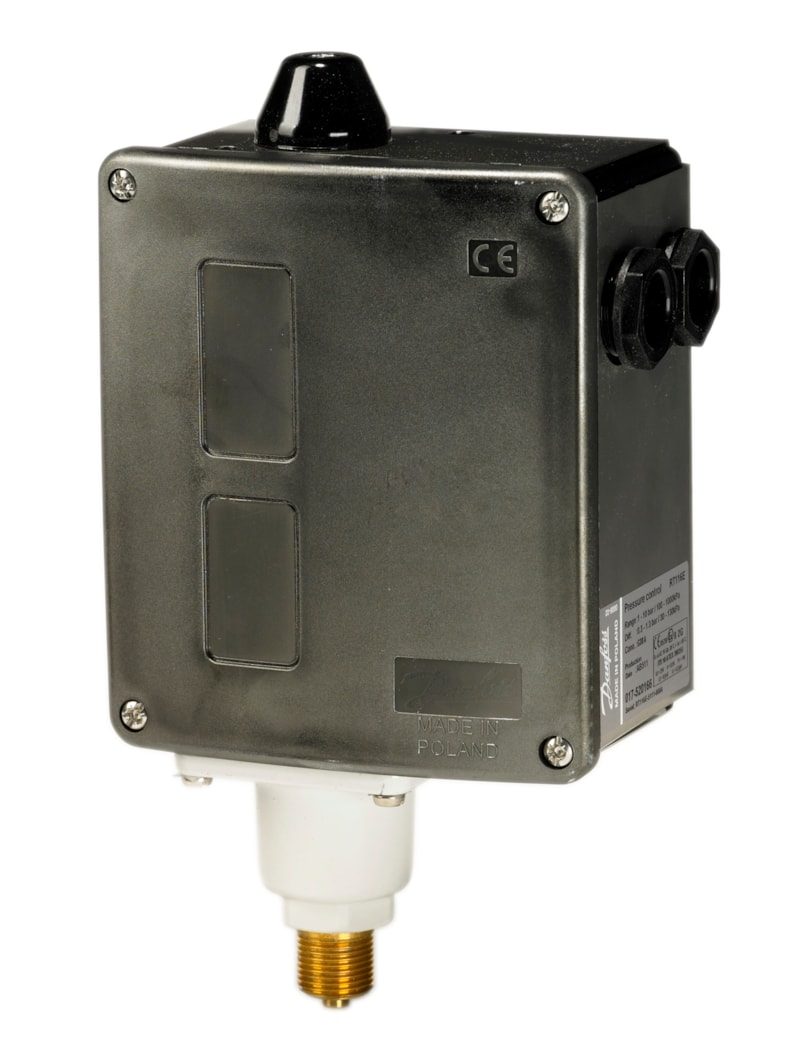

Danfoss RT116E Pressure Switch 1 to 10 bar SPDT Auto Reset
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss RT116E mechanical pressure switch with bellows sensing element, SPDT, gold-plated; intrinsically safe contact and auto reset. Regulating range 1 to 10 bar; G 3/8 male (ISO 228-1) pressure connection; maximum working pressure 22 bar; enclosure IP66. For industrial and marine refrigeration and HVAC applications. Danfoss code number 017-520166; EAN 5702428130837.
Technical Specifications
- Brand
- Danfoss
- Model
- RT116E pressure switch
- Code number
- 017-520166
- Regulating range (Pe)
- 1 to 10 bar
- Maximum working pressure
- 22 bar
- Contact function
- SPDT, gold-plated; intrinsically safe
- Reset
- Auto
- Differential
- 0.33 to 1.3 bar (adjustable)
- Pressure sensing element
- bellows
- Pressure connection
- G 3/8 male (ISO 228-1)
- Enclosure
- IP66
- Ambient temperature range
- -20 to +65 degC
- Cable entry
- 2 x Pg 13.5
- Contact rating
- AC15=3 A at 400 V; AC1=10 A at 400 V; AC3=4 A at 400 V; DC13=12 W at 220 V; LR=28 A at 400 V
- Standards
- EN 60947-4, EN 60947-5, ISO 228-1, DIN 40430
- Approvals
- ATEX II 2G Ex ia, CCC, CE, EAC, RoHS, RoHS China
- EAN
- 5702428130837
- Part number
- 017-520166
- Net weight
- 0.994 Kilogram
- Type
- RT116E
- Product group
- Switches and thermostats
- Ambient temperature range [°C] [max]
- 65 °C
- Ambient temperature range [°C] [min]
- -20 °C
- Ambient temperature range [°F] [max]
- 149 °F
- Ambient temperature range [°F] [min]
- -4 °F
- Approval
- ATEX - Cat. 2 - Zone 1
- CE mark
- Yes
- China RoHS compliance
- Yes
- Differential [bar] [max]
- 1.3 bar
- Differential [bar] [min]
- 0.33 bar
- Differential [psi] [max]
- 18.9 psi
- Differential [psi] [min]
- 4.8 psi
- Electrical conn. Male/Female
- Female
- Electrical connection
- Screwed cable entry
- Electrical connection size
- 2xPg 13.5
- Electrical connection standard
- DIN 40430
- Electrical spec. standard
- EN 60947-4/-5
- EN 60947 electrical properties
- Insulation: 400V
- EN 60947 wiring properties
- Flex, ferrules: 0.2-1.5 mm2
- Enclosure rating IP
- IP66
- EU RoHS compliance
- Out of scope
- EX Sales text
- -20C<ta<+65C
- Max. test pressure [bar] Pe
- 25 bar
- Max. test pressure [psig]
- 363 psig
- Max. Working Pressure [bar]
- 22 bar
- Max. Working Pressure [psig]
- 320 psig
- Pressure connection size
- 3/8
- Pressure connection standard
- ISO 228-1
- Pressure connection type
- G
- Pressure Male/Female
- Male
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Regulation range [bar] Pe [max]
- 10 bar
- Regulation range [bar] Pe [min]
- 1 bar
- Regulation range [psig] Pe [max]
- 145 psig
- Regulation range [psig] Pe [min]
- 14.5 psig
- Reset function
- Auto
Standards & Compliance
- Standard
- EN 60947-5
- Material
- Bellows sensing element
- Thread Standard
- ISO 228-1
- Pressure Rating
- 22 bar
- Temperature Range
- -20 to +65 degC
- IP Rating
- IP66
- Classification / Approval
- ATEX II 2G Ex ia, CCC, CE, EAC, RoHS, RoHS China
- HS Code
- 9032.20
Compatibility & Fitment
G 3/8 male (ISO 228-1) pressure connection. Confirm range and reset type against application.
