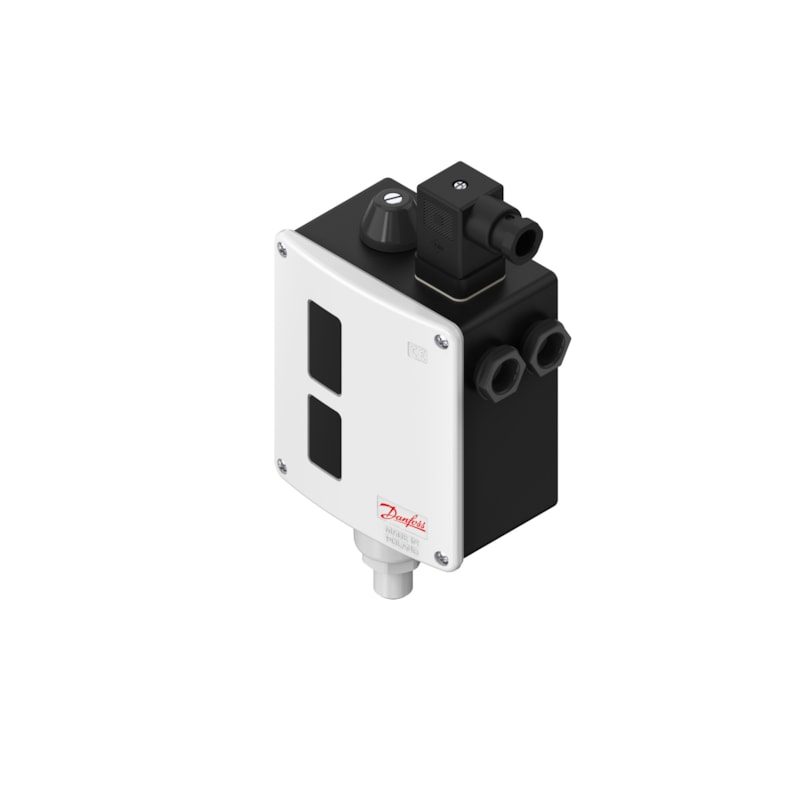

Danfoss RT5 Pressure Switch 4 to 17 bar SPDT Manual Reset (max)
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss RT5 mechanical pressure switch with bellows sensing element, SPDT contact and manual maximum reset. Regulating range 4 to 17 bar; Flare 1/4 in male (DIN 8906) pressure connection; maximum working pressure 22 bar; enclosure IP54. For industrial and marine refrigeration and HVAC applications. Danfoss code number 017-525166; EAN 5702423193677.
Technical Specifications
- Brand
- Danfoss
- Model
- RT5 pressure switch
- Code number
- 017-525166
- Regulating range (Pe)
- 4 to 17 bar
- Maximum working pressure
- 22 bar
- Contact function
- SPDT
- Reset
- Manual Max
- Differential
- 1.2 bar (fixed)
- Pressure sensing element
- bellows
- Pressure connection
- Flare 1/4 in male (DIN 8906)
- Enclosure
- IP54
- Ambient temperature range
- -50 to +70 degC
- Cable entry
- 2 x Pg 13.5
- Contact rating
- AC15=3 A at 400 V; AC1=10 A at 400 V; AC3=4 A at 400 V; DC13=12 W at 220 V; LR=28 A at 400 V
- Standards
- EN 60947-4, EN 60947-5, DIN 40430, DIN 8906
- Approvals
- BV, CCC, CE, CMIM, EAC, GL, KR, LLC CDC EURO-TYSK, LR, LVD, NKK, RINA, RMRS, RoHS, RoHS China, TYSK
- EAN
- 5702423193677
- Part number
- 017-525166
- Net weight
- 0.726 Kilogram
- Type
- RT5
- Product group
- Switches and thermostats
- Ambient temperature range [°C] [max]
- 70 °C
- Ambient temperature range [°C] [min]
- -50 °C
- Ambient temperature range [°F] [max]
- 158 °F
- Ambient temperature range [°F] [min]
- -58 °F
- Approval
- BV
- CE mark
- Yes
- China RoHS compliance
- Yes
- Differential [bar]
- 1.2 bar
- Differential [psi] [max]
- 18.9 psi
- Differential [psi] [min]
- 17.4 psi
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. Male/Female
- Female
- Electrical connection
- Screwed cable entry
- Electrical connection size
- 2xPg 13.5
- Electrical connection standard
- DIN 40430
- Electrical spec. standard
- EN 60947-4/-5
- EN 60947 electrical properties
- Insulation: 400V
- EN 60947 wiring properties
- Flex, ferrules: 0.2-1.5 mm2
- Enclosure rating IP
- IP54
- EU RoHS compliance
- Yes
- In scope of WEEE
- Yes
- Max. test pressure [bar] Pe
- 25 bar
- Max. test pressure [psig]
- 363 psig
- Max. Working Pressure [bar]
- 22 bar
- Max. Working Pressure [psig]
- 320 psig
- Pressure connection size
- 1/4
- Pressure connection standard
- DIN 8906
- Pressure connection type
- Flare
- Pressure Male/Female
- Male
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Regulation range [bar] Pe [max]
- 17 bar
- Regulation range [bar] Pe [min]
- 4 bar
- Regulation range [psig] Pe [max]
- 246.6 psig
- Regulation range [psig] Pe [min]
- 58 psig
- Reset function
- Manual Max
Standards & Compliance
- Standard
- EN 60947-5
- Material
- Bellows sensing element
- Pressure Rating
- 22 bar
- Temperature Range
- -50 to +70 degC
- IP Rating
- IP54
- Classification / Approval
- BV, CCC, CE, CMIM, EAC, GL, KR, LLC CDC EURO-TYSK, LR, LVD, NKK, RINA, RMRS, RoHS, RoHS China, TYSK
- HS Code
- 9032.20
Compatibility & Fitment
Flare 1/4 in male (DIN 8906) pressure connection. Confirm range and reset type against application.
Product Documentation
More from Danfoss
Danfoss
Danfoss RT5 Pressure Switch 4 to 17 bar SPDT Auto Reset (017-525366)
Danfoss
Danfoss RT5 Pressure Switch 4 to 17 bar SPDT Auto Reset (017-528466)
Danfoss
Danfoss RT110 Pressure Switch 0.2 to 3 bar SPDT Auto Reset
017-529266
Danfoss
Danfoss RT117 Pressure Switch 10 to 30 bar SPDT Auto Reset (017-529666)
Danfoss
Danfoss RT262A Differential Pressure Switch 0.1 to 1.5 bar SPDT+SPST Auto Reset
017D001366
Danfoss

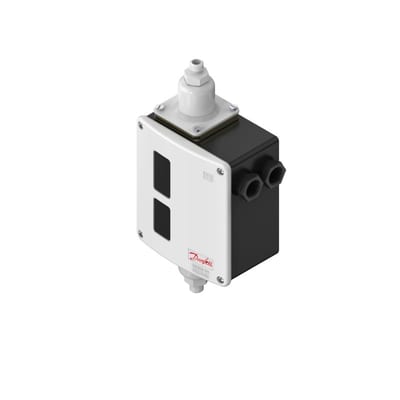

Danfoss RT260A Differential Pressure Switch 0.5 to 4 bar SPDT Auto Reset M12
