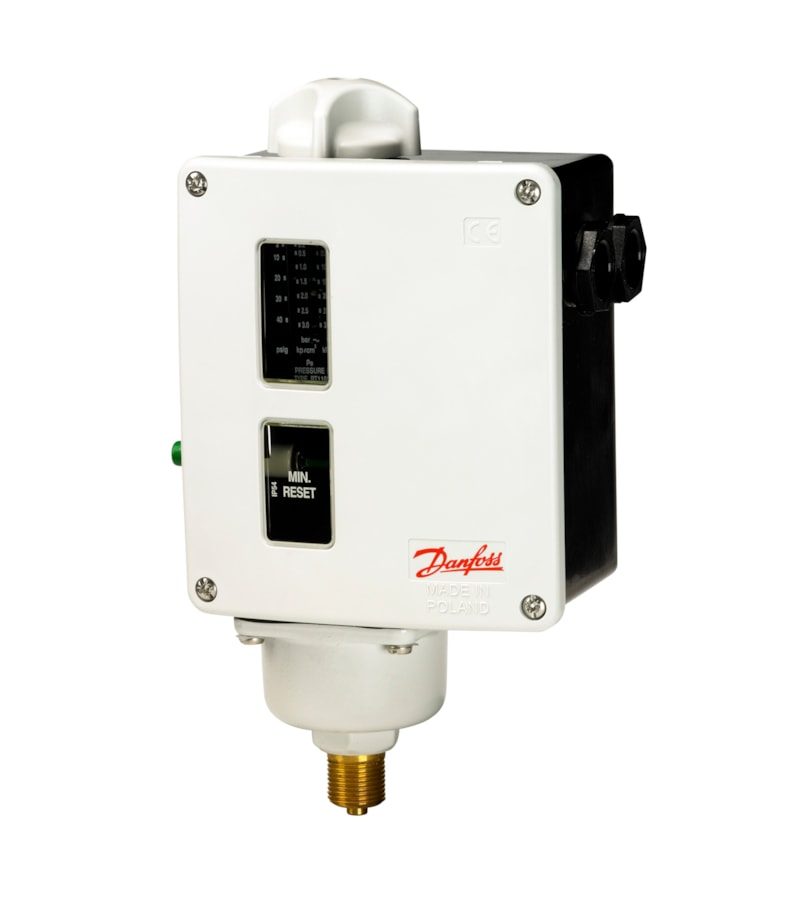

Danfoss RT110 Pressure Switch 0.2 to 3 bar SPDT Manual Min
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss RT110 mechanical pressure switch with bellows sensing element, single-pole double-throw (SPDT) contact and manual min reset. Regulating range 0.2 to 3 bar; G 3/8 in male pressure connection (ISO 228-1); enclosure IP54. Danfoss code number 017-511066.
Technical Specifications
- Brand
- Danfoss
- Model
- RT110 pressure switch
- Code number
- 017-511066
- Regulating range (Pe)
- 0.2 to 3 bar
- Maximum working pressure
- 7 bar
- Contact function
- SPDT (single-pole double-throw)
- Reset
- Manual Min
- Differential
- 0.08 bar (fixed)
- Pressure sensing element
- bellows
- Pressure connection
- G 3/8 in male (ISO 228-1)
- Enclosure
- IP54
- Ambient temperature range
- -50 to +70 degC (-58 to +158 degF)
- Cable entry
- 2 x Pg 13.5
- Contact rating
- AC15=3 A at 400 V; AC1=10 A at 400 V; AC3=4 A at 400 V; DC13=12 W at 220 V; LR=28 A at 400 V
- Standards
- EN 60947-4, EN 60947-5
- Approvals
- CE, EAC, DNV, LR, BV, GL
- Product type
- RT110
- Product group
- Switches and thermostats
- Max. test pressure
- 116.0 psig
- Max. test pressure Pe
- 8.0 bar
- Max. working pressure
- 7.0 bar
- Fluid Group
- 1
- PED category
- IV
- CE mark
- Yes
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1)
- Net weight
- 0.89 kg
- EAN
- 5702423119608
- Contact rating @ 250K cycles
- AC15=1 A, 400 V; AC1=10 A, 400 V; AC3=2 A, 400 V; DC13=12 W, 220 V; LR=14 A, 400 V
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. Male/Female
- Female
- Electrical connection
- Screwed cable entry
- Electrical connection size
- 2xPg 13.5
- Electrical connection standard
- DIN 40430
- Electrical spec. standard
- EN 60947-4/-5
- EN 60947 electrical properties
- Insulation: 400V; Pollution degree: 3; Rated impulse voltage: 4 kV; Short circuit prot, fuse: 10A
- EN 60947 wiring properties
- Flex, ferrules: 0.2-1.5 mm2; Flex, no ferrules: 0.2-2.5 mm2; Solid/stranded: 0.2-2.5 mm2
- Enclosure rating IP
- IP54
- In scope of WEEE
- Yes
- Pressure connection size
- 3/8
- Pressure connection standard
- ISO 228-1
Standards & Compliance
- Standard
- EN 60947-5
- Material
- Bellows sensing element
- Thread Standard
- ISO 228-1
- Pressure Rating
- 7 bar
- Temperature Range
- -50 to +70 degC
- IP Rating
- IP54
- Classification / Approval
- CE, EAC, DNV, LR, BV, GL
- HS Code
- 9032.20
Compatibility & Fitment
Danfoss RT mechanical pressure switches interchange with same code-number variants at equal regulating range, contact function, reset type and pressure connection. Confirm range, differential and connection before ordering.
