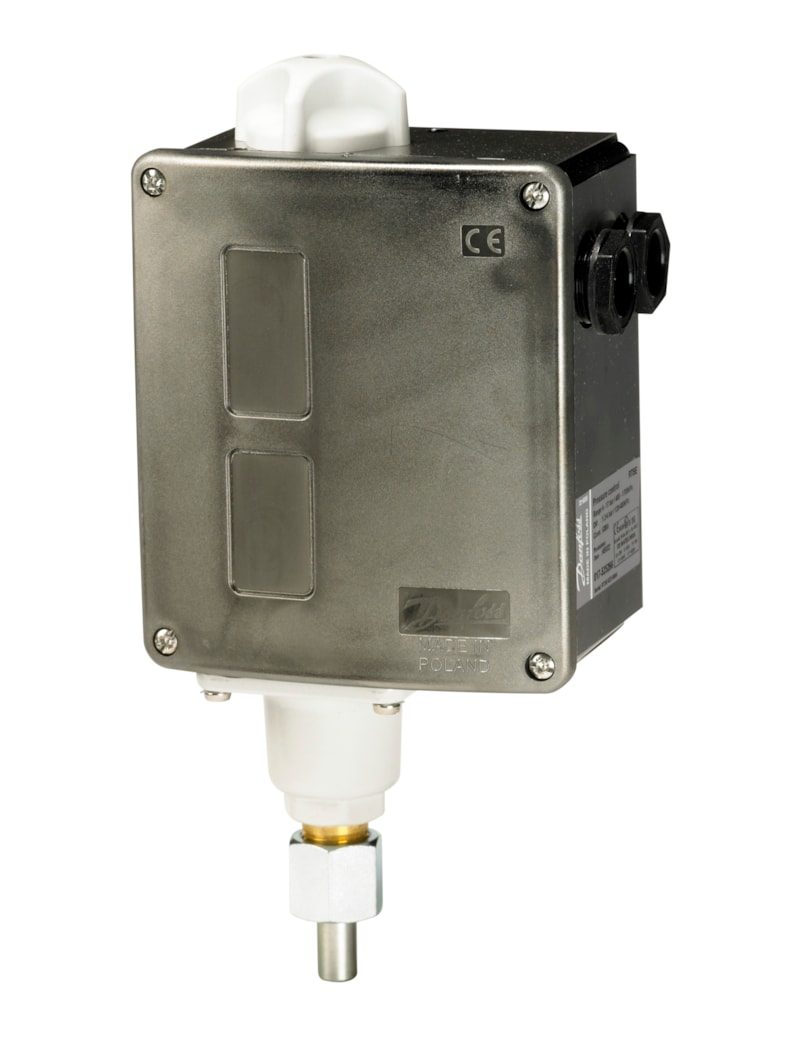

Danfoss RT117E Pressure Switch 10 to 30 bar SPDT Auto Reset
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss RT117E mechanical pressure switch with bellows sensing element, single-pole double-throw (SPDT) contact and auto reset. Regulating range 10 to 30 bar; G 3/8 male pressure connection (ISO 228-1); enclosure IP66. Danfoss code number 017-529866.
Technical Specifications
- Brand
- Danfoss
- Model
- RT117E pressure switch
- Code number
- 017-529866
- Regulating range (Pe)
- 10 to 30 bar
- Maximum working pressure
- 42 bar
- Contact function
- SPDT (single-pole double-throw), gold-plated contacts; intrinsically safe
- Reset
- Auto
- Differential
- 1 to 4 bar (adjustable)
- Pressure sensing element
- bellows
- Pressure connection
- G 3/8 male (ISO 228-1)
- Enclosure
- IP66
- Ambient temperature range
- -20 to +65 degC (-4 to +149 degF)
- Cable entry
- 2 x Pg 13.5
- Contact rating
- Intrinsically safe entity parameters: Ci=0.5 nF, Ii=0.5 A, Li=0.2 uH, Pi=1 W, Ui=29 V
- ATEX category 2, gas group, Zone 1; maximum test pressure
- 47 bar
- Standards
- EN 60947-4, EN 60947-5
- Approvals
- ATEX II 2G Ex ia, CE, EAC, CCC
- Product type
- RT117E
- Product group
- Switches and thermostats
- Max. test pressure
- 682.0 psig
- Max. test pressure Pe
- 47.0 bar
- Max. working pressure
- 42.0 bar
- CE mark
- Yes
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1)
- Net weight
- 1.046 kg
- EAN
- 5702423243341
- Electrical conn. Male/Female
- Female
- Electrical connection
- Screwed cable entry
- Electrical connection size
- 2xPg 13.5
- Electrical connection standard
- DIN 40430
- Electrical spec. standard
- EN 60947-4/-5
- EN 60947 electrical properties
- Insulation: 400V; Pollution degree: 3; Rated impulse voltage: 4 kV; Short circuit prot, fuse: 10A
- EN 60947 wiring properties
- Flex, ferrules: 0.2-1.5 mm2; Flex, no ferrules: 0.2-2.5 mm2; Solid/stranded: 0.2-2.5 mm2
- Enclosure rating IP
- IP66
- EX Sales text
- -20C<ta<+65C; II 2G Ex ia IIC T6...T1 Gb
- Pressure connection size
- 3/8
- Pressure connection standard
- ISO 228-1
- Pressure connection type
- G
- Pressure Male/Female
- Male
- Regulation range Pe
- 10.00 bar to 30.00 bar
Standards & Compliance
- Standard
- EN 60947-5
- Material
- Bellows sensing element
- Thread Standard
- ISO 228-1
- Pressure Rating
- 42 bar
- Temperature Range
- -20 to +65 degC
- IP Rating
- IP66
- Classification / Approval
- ATEX II 2G Ex ia, CE, EAC, CCC
- HS Code
- 9032.20
Compatibility & Fitment
G 3/8 male (ISO 228-1) pressure connection. Confirm range and reset type against application.
