Danfoss RT116 Pressure Switch 1 to 10 bar SPDT Auto (017-520366)
Danfoss · Sensors & Instrumentation · Pressure Sensors

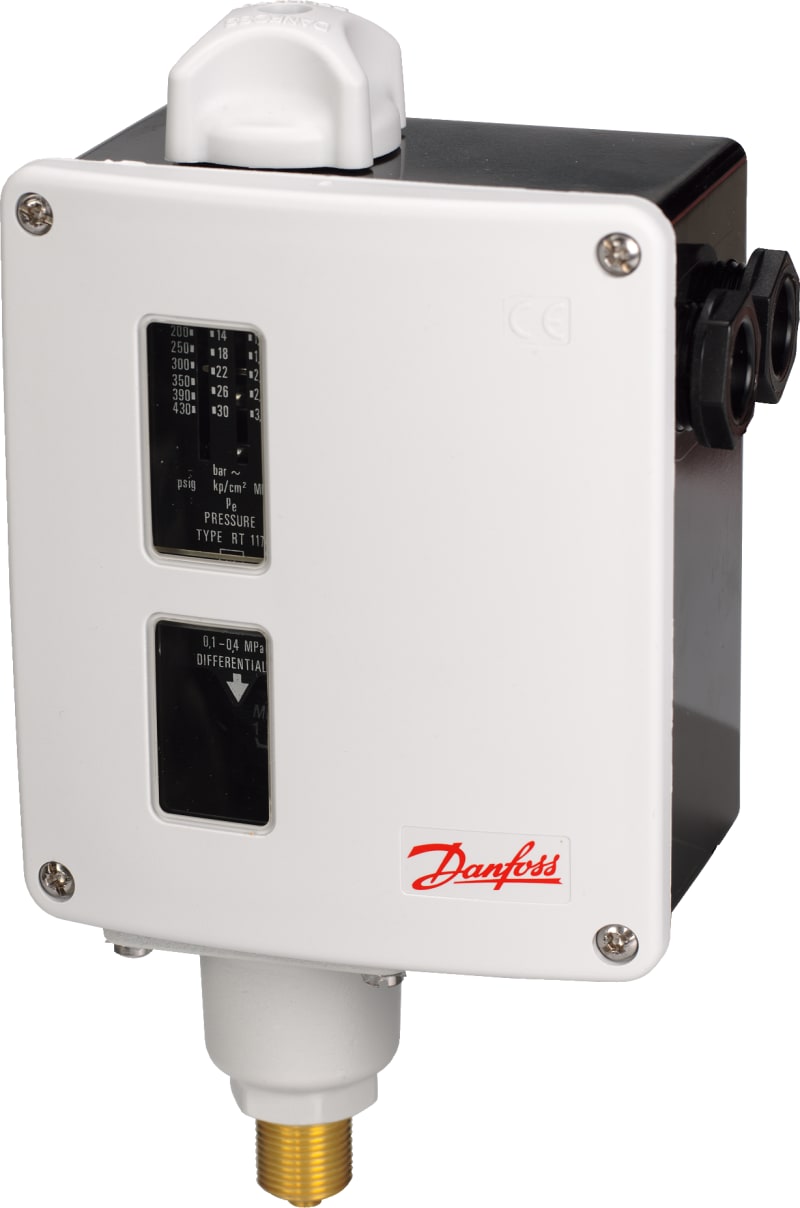

Danfoss RT116 mechanical pressure switch with bellows sensing element, single-pole double-throw (SPDT) contact and auto reset. Regulating range 1 to 10 bar; G 3/8 in male pressure connection (ISO 228-1); enclosure IP66. Danfoss code number 017-520366.
Specifications
- Part number
- 017-520366
- HS code
- 9032.20
- Material
- Bellows sensing element
- Pressure rating
- 22 bar
- Temperature range
- -50 to +70 degC
- IP rating
- IP66
- Standard
- EN 60947-5
- Thread standard
- ISO 228-1
Compatibility
Danfoss RT mechanical pressure switches interchange with same code-number variants at equal regulating range, contact function, reset type and pressure connection. Confirm range, differential and connection before ordering.
Standards
- EN 60947-4
- EN 60947-5
- ISO 228-1
Approvals
