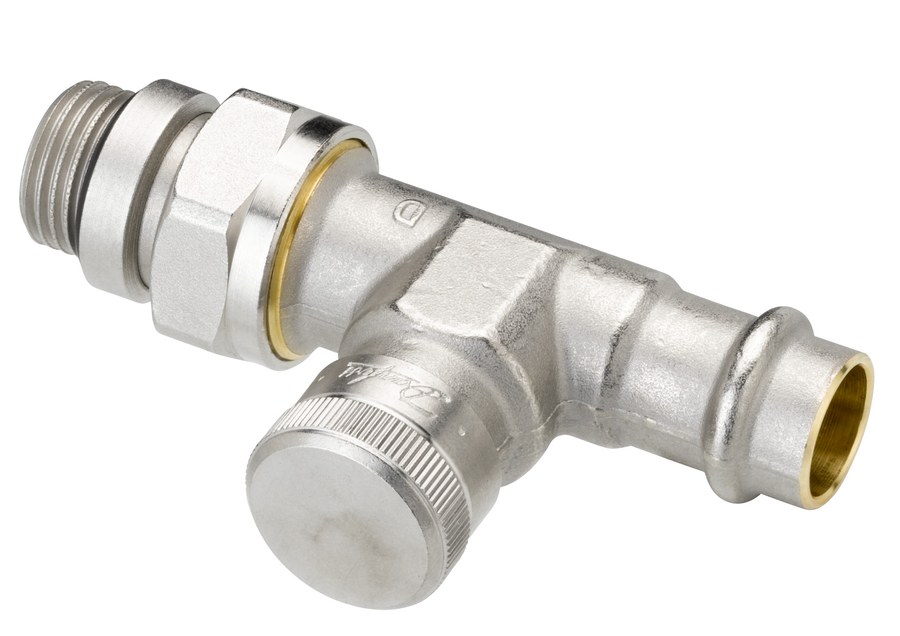

Danfoss RLV Radiator Lockshield Valve DN 15, Straight, Kvs 2.5
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss RLV (radiator valves), OEM order code 003L1824. Manual return-side lockshield valve for shut-off, drain-off and hydronic pre-setting of a radiator connection. Manufacturer description: Drain-off feature, self-sealing tailpiece, press-fit connection. connection/size DN 15, Kvs 2.5 m³/h, max. working pressure 10 bar; test pressure 16 bar, media/setting temperature up to 120 °C. EAN 5702420091716. HS 8481.80. Specifications quoted verbatim from store.danfoss.com (code 003L1824).
Technical Specifications
- Brand
- Danfoss
- Part number
- 003L1824
- Code number
- 003L1824
- Type
- RLV
- Product group
- Lockshield Valves
- Description
- Drain-off feature, self-sealing tailpiece, press-fit connection
- Gross weight
- 0.278 Kilogram
- Net weight
- 0.267 Kilogram
- Connection to radiator
- Rp 1/2
- Connection to system
- 15 mm
- Connection types
- Press-fit
- Design
- Straight
- Finish
- Nickel plated
- Flow temperature [°C] [Max]
- 120 °C
- Kvs values [m³/h]
- 2.5 m³/h
- Surface
- Nickel plated
- Tailpiece type
- Self-sealing
- Test pressure [bar]
- 16 bar
- Valve size
- DN 15
- Working pressure [bar] [Max]
- 10 bar
- EAN
- 5702420091716
- HS code
- 8481.80 (taps, cocks, valves for pipes)
Standards & Compliance
- Size / Series
- DN 15
- Pressure Rating
- max. working pressure 10 bar; test pressure 16 bar
- Temperature Range
- up to 120 °C
- HS Code
- 8481.80
Compatibility & Fitment
Genuine Danfoss part, order code 003L1824 (Lockshield Valves). Confirm the code, size (DN 15) and matching valve/actuator family against your Danfoss datasheet before ordering.
Product Documentation
