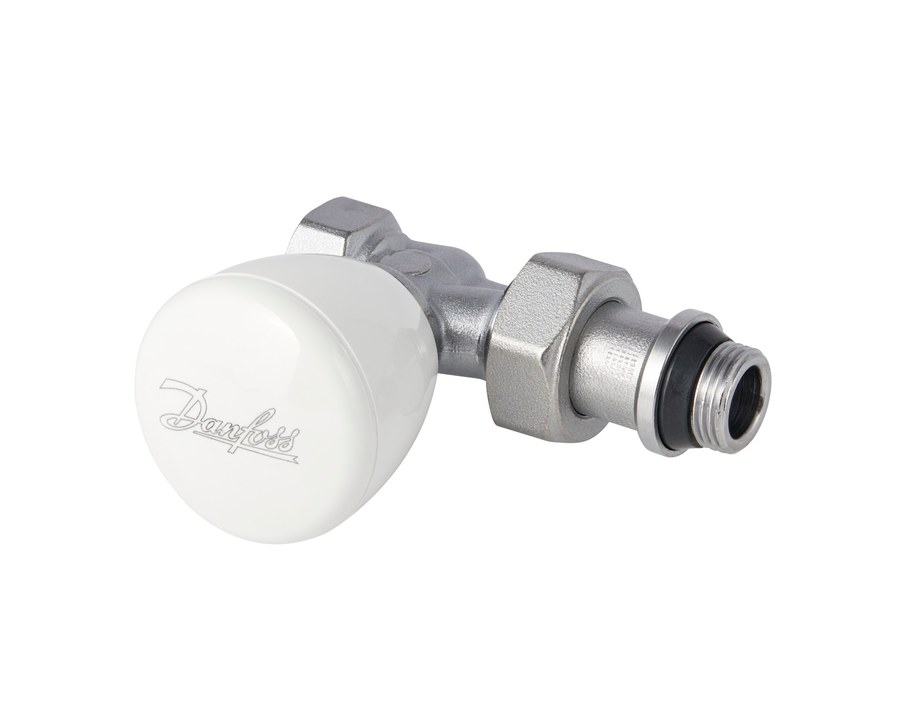

Danfoss MAV Manual Radiator Valve DN 10, Straight, Kvs 1.58
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MAV (radiator valves), OEM order code 003L1837. Manual radiator valve without room-temperature regulation for two-pipe heating systems. Manufacturer description: Manual radiator valve, with no room temperature regulation. connection/size DN 10, Kvs 1.58 m³/h, max. working pressure 10 bar; test pressure 16 bar; max. differential pressure 0.6 bar, media/setting temperature up to 110 °C. EAN 5702425125249. HS 8481.80. Specifications quoted verbatim from store.danfoss.com (code 003L1837).
Technical Specifications
- Brand
- Danfoss
- Part number
- 003L1837
- Code number
- 003L1837
- Type
- MAV
- Product group
- Radiator Valves
- Description
- Manual radiator valve, with no room temperature regulation
- Gross weight
- 201 Gram
- Net weight
- 190 Gram
- Application
- 2-pipe system
- Connection size in
- G 3/8
- Connection size out
- R 3/8
- Connection types
- Internal thread
- Design
- Straight
- Differential pressure range [bar] [Max]
- 0.6 bar
- Finish
- Nickel plated
- Flow temperature [°C] [Max]
- 110 °C
- Kvs values [m³/h]
- 1.58 m³/h
- Presetting
- no
- Tailpiece type
- Standard
- Test pressure [bar]
- 16 bar
- Valve size
- DN 10
- Valve type
- Manual
- Working pressure [bar] [Max]
- 10 bar
- EAN
- 5702425125249
- HS code
- 8481.80 (taps, cocks, valves for pipes)
Standards & Compliance
- Size / Series
- DN 10
- Pressure Rating
- max. working pressure 10 bar; test pressure 16 bar; max. differential pressure 0.6 bar
- Temperature Range
- up to 110 °C
- HS Code
- 8481.80
Compatibility & Fitment
Genuine Danfoss part, order code 003L1837 (Radiator Valves). Confirm the code, size (DN 10) and matching valve/actuator family against your Danfoss datasheet before ordering.
Product Documentation
More from Danfoss
Danfoss
Danfoss MAV Manual Radiator Valve DN 15, Straight, Kvs 2.5
003L1838
Danfoss
Danfoss AVTQ Gasket for diaphragm housing
003L3154
Danfoss
Danfoss VMT Motorized Control-Valve Body 2-Way, DN 15, PN 10, Kvs 2.8
003L3520
Danfoss
Danfoss VMT Motorized Control-Valve Body 2-Way, DN 15, PN 10, Kvs 1
003L3521
Danfoss
Danfoss VMT Motorized Control-Valve Body 2-Way, DN 15, PN 10, Kvs 1.5 (003L3522)
Danfoss
Danfoss VMT Motorized Control-Valve Body 2-Way, DN 15, PN 10, Kvs 1.5 (003L3523)
Danfoss
Danfoss AVTQ Self-Acting Temperature Controller DN 15, 45–60 °C, PN 16
003L3525
Danfoss

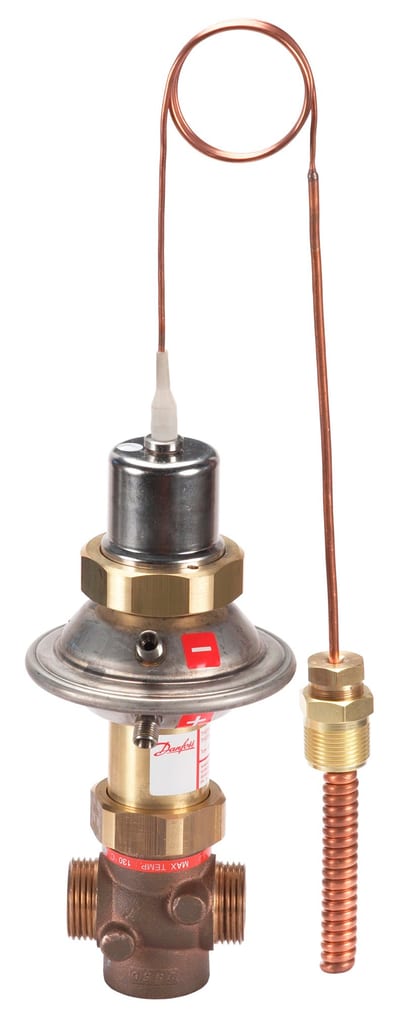

Danfoss AVTQ Self-Acting Temperature Controller DN 20, 45–60 °C, PN 16
