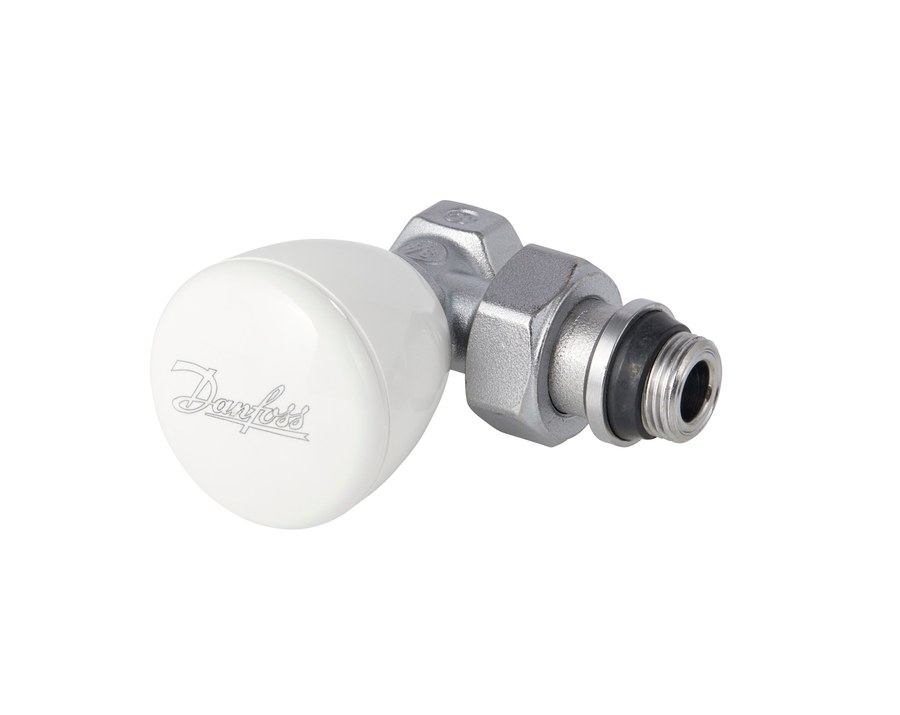

Danfoss MAV Manual Radiator Valve DN 10, Angle, Kvs 2.46
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MAV (radiator valves), OEM order code 003L1835. Manual radiator valve without room-temperature regulation for two-pipe heating systems. Manufacturer description: Manual radiator valve, with no room temperature regulation. connection/size DN 10, Kvs 2.46 m³/h, max. working pressure 10 bar; test pressure 16 bar; max. differential pressure 0.6 bar, media/setting temperature up to 110 °C. EAN 5702425125188. HS 8481.80. Specifications quoted verbatim from store.danfoss.com (code 003L1835).
Technical Specifications
- Brand
- Danfoss
- Part number
- 003L1835
- Code number
- 003L1835
- Type
- MAV
- Product group
- Radiator Valves
- Description
- Manual radiator valve, with no room temperature regulation
- Gross weight
- 0.199 Kilogram
- Net weight
- 0.199 Kilogram
- Application
- 2-pipe system
- Connection size in
- G 3/8
- Connection size out
- R 3/8
- Connection types
- Internal thread
- Design
- Angle
- Differential pressure range [bar] [Max]
- 0.6 bar
- Finish
- Nickel plated
- Flow temperature [°C] [Max]
- 110 °C
- Kvs values [m³/h]
- 2.46 m³/h
- Presetting
- no
- Tailpiece type
- Standard
- Test pressure [bar]
- 16 bar
- Valve size
- DN 10
- Valve type
- Manual
- Working pressure [bar] [Max]
- 10 bar
- EAN
- 5702425125188
- HS code
- 8481.80 (taps, cocks, valves for pipes)
Standards & Compliance
- Size / Series
- DN 10
- Pressure Rating
- max. working pressure 10 bar; test pressure 16 bar; max. differential pressure 0.6 bar
- Temperature Range
- up to 110 °C
- HS Code
- 8481.80
Compatibility & Fitment
Genuine Danfoss part, order code 003L1835 (Radiator Valves). Confirm the code, size (DN 10) and matching valve/actuator family against your Danfoss datasheet before ordering.
