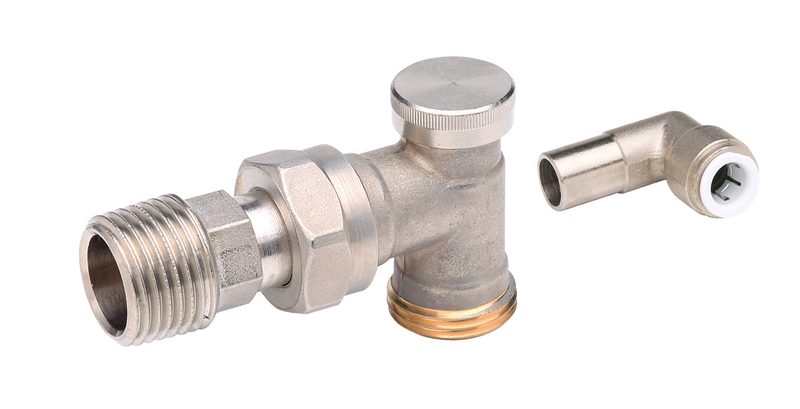

Danfoss RLV-D DN 10 angle lockshield radiator valve, manual shut-off (003L0205)

Danfoss RLV-D — manual lockshield radiator valve for two-pipe hydronic heating systems, OEM order code 003L0205. The RLV-D is a return-side lockshield valve supplied with compression/union fittings for direct connection to the system pipe, combining individual shut-off with a drain-off facility for maintenance. Regulation and isolation are set with a hex socket under a cover cap. RLV-D DN 10, angle pattern. Body brass, finish Nickel plated. Connection to system 10 mm push-fit, connection to radiator Rp 1/2 (External Thread). Max. working pressure 3 bar, test pressure 16 bar, flow temperature up to 92 °C. Genuine Danfoss part; technical data quoted verbatim from store.danfoss.com (code 003L0205). OEM P/N 003L0205, EAN 5013567408108. HS 8481.80.

Brand

Danfoss

Part number

003L0205

Type

RLV-D

Product group

Lockshield Valves

Description

RLV-D with 10 mm pushfit

Function

Return-side lockshield / isolating valve

Design

Angle

Nominal size

10

Connection to system

10 mm push-fit

Connection to radiator

Rp 1/2

Connection types

External Thread

Tailpiece type

Pushfit

Flow temperature (max)

92 °C

Working pressure (max)

3 bar

Test pressure

16 bar

Finish

Nickel plated

REACH candidate-list substances

Lead (CAS no. 7439-92-1)

Net weight

0.184 Kilogram

Gross weight

0.194 Kilogram

EAN

5013567408108

HS code

8481.80 (taps, cocks, valves for pipes, tanks, vats or the like)

Material

Body brass, Nickel plated

Pressure Rating

3 bar max working (test 16 bar)

Temperature Range

up to 92 °C (flow)

HS Code

8481.80
