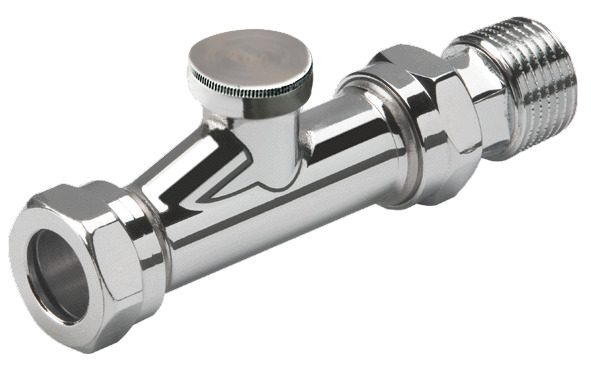

Danfoss RLV-D DN 10/15 straight lockshield radiator valve, manual shut-off

Danfoss RLV-D — manual lockshield radiator valve for two-pipe hydronic heating systems, OEM order code 003L0239. The RLV-D is a return-side lockshield valve supplied with compression/union fittings for direct connection to the system pipe, combining individual shut-off with a drain-off facility for maintenance. Regulation and isolation are set with a hex socket under a cover cap. RLV-D DN 10/15, straight pattern. Body brass, finish Chrome plated. Connection to system 8/10/15 mm, connection to radiator Rp 1/2 (External Thread). Max. working pressure 10 bar, test pressure 16 bar, flow temperature up to 120 °C. Genuine Danfoss part; technical data quoted verbatim from store.danfoss.com (code 003L0239). OEM P/N 003L0239, EAN 5013567413492. HS 8481.80.

Brand

Danfoss

Part number

003L0239

Type

RLV-D

Product group

Lockshield Valves

Description

RLV-D straight, chrome plated

Function

Return-side lockshield / isolating valve

Design

Straight

Nominal size

10/15 mm

Connection to system

8/10/15 mm

Connection to radiator

Rp 1/2

Connection types

External Thread

Tailpiece type

With fittings

Flow temperature (max)

120 °C

Working pressure (max)

10 bar

Test pressure

16 bar

Finish

Chrome plated

REACH candidate-list substances

Lead (CAS no. 7439-92-1)

Net weight

0.4 Kilogram

Gross weight

0.401 Kilogram

EAN

5013567413492

HS code

8481.80 (taps, cocks, valves for pipes, tanks, vats or the like)

Material

Body brass, Chrome plated

Pressure Rating

10 bar max working (test 16 bar)

Temperature Range

up to 120 °C (flow)

HS Code

8481.80
