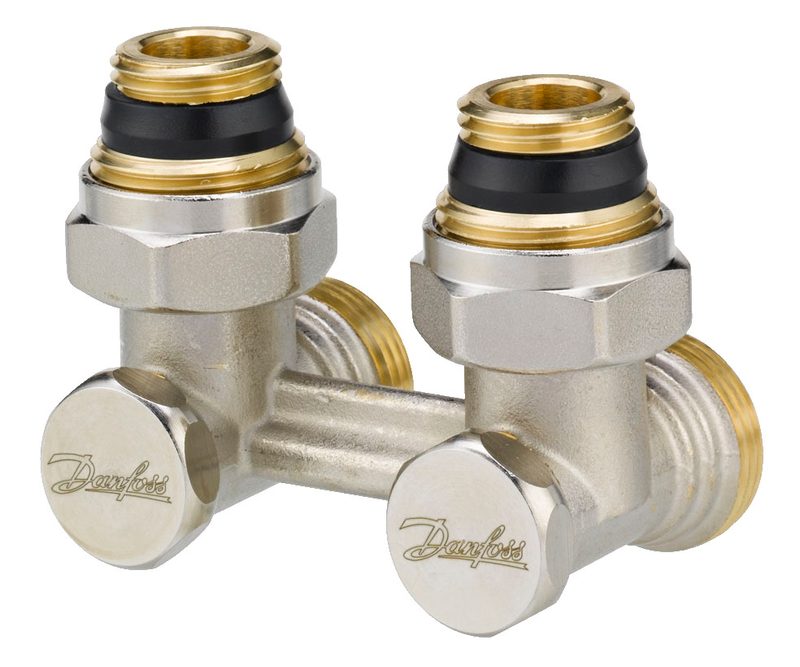

Danfoss RLV-KS DN 15 angle H-piece radiator valve, manual shut-off

Danfoss RLV-KS — manual H-piece radiator valve for two-pipe hydronic heating systems, OEM order code 003L0222. The RLV-KS is an H-piece (H-block) valve with integral shut-off for bottom-connected panel radiators in two-pipe systems, providing both flow and return connections on a single 50 mm centre-to-centre body. It allows the radiator to be isolated for service. RLV-KS DN 15, angle pattern, 50 mm centre-to-centre. Body brass, finish Nickel plated. Connection to system G 3/4, connection to radiator G 1/2, Kvs 1.3 m³/h. Max. working pressure 10 bar, test pressure 16 bar, flow temperature up to 120 °C. Genuine Danfoss part; technical data quoted verbatim from store.danfoss.com (code 003L0222). OEM P/N 003L0222, EAN 5702420035901. HS 8481.80.

Brand

Danfoss

Part number

003L0222

Type

RLV-KS

Product group

H-piece valves

Description

Standard H-piece with shut-off

Function

H-piece (H-block) valve with shut-off

Design

Angle

Nominal size

15

Connection to system

G 3/4

Connection to radiator

G 1/2

Distance centre-to-centre

50 mm

Kvs value

1.3 m³/h

Application

2-pipe system

Flow temperature (max)

120 °C

Working pressure (max)

10 bar

Test pressure

16 bar

Finish

Nickel plated

REACH candidate-list substances

Lead (CAS no. 7439-92-1)

Net weight

0.368 Kilogram

Gross weight

0.37 Kilogram

EAN

5702420035901

HS code

8481.80 (taps, cocks, valves for pipes, tanks, vats or the like)

Material

Body brass, Nickel plated

Pressure Rating

10 bar max working (test 16 bar)

Temperature Range

up to 120 °C (flow)

HS Code

8481.80
