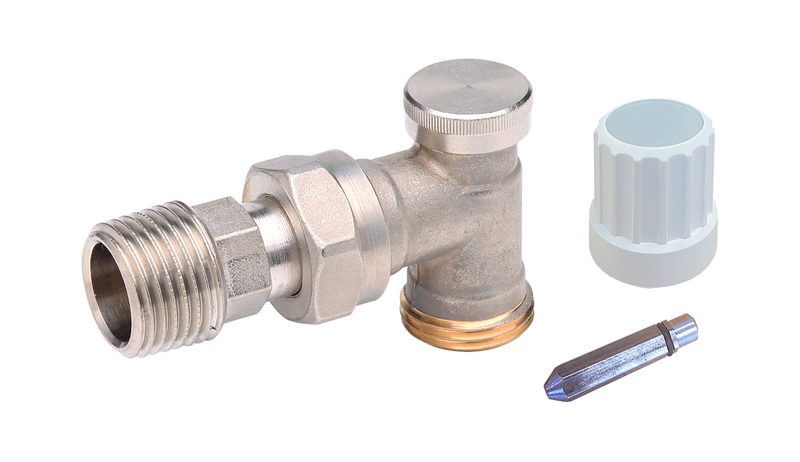

Danfoss RLV-D DN 10 angle lockshield radiator valve, manual shut-off (003L0234)

Danfoss RLV-D — manual lockshield radiator valve for two-pipe hydronic heating systems, OEM order code 003L0234. The RLV-D is a return-side lockshield valve supplied with compression/union fittings for direct connection to the system pipe, combining individual shut-off with a drain-off facility for maintenance. Regulation and isolation are set with a hex socket under a cover cap. RLV-D DN 10, angle pattern. Body brass, finish Nickel plated. Connection to system 8/10 mm, connection to radiator Rp 1/2 (External Thread). Max. working pressure 10 bar, test pressure 16 bar, flow temperature up to 120 °C. Genuine Danfoss part; technical data quoted verbatim from store.danfoss.com (code 003L0234). OEM P/N 003L0234, EAN 5013567413447. HS 8481.80.

Brand

Danfoss

Part number

003L0234

Type

RLV-D

Product group

Lockshield Valves

Description

RLV-D with 10 mm fittings

Function

Return-side lockshield / isolating valve

Design

Angle

Nominal size

10

Connection to system

8/10 mm

Connection to radiator

Rp 1/2

Connection types

External Thread

Tailpiece type

With fittings

Flow temperature (max)

120 °C

Working pressure (max)

10 bar

Test pressure

16 bar

Finish

Nickel plated

REACH candidate-list substances

Lead (CAS no. 7439-92-1)

Net weight

0.323 Kilogram

Gross weight

0.336 Kilogram

EAN

5013567413447

HS code

8481.80 (taps, cocks, valves for pipes, tanks, vats or the like)

Material

Body brass, Nickel plated

Pressure Rating

10 bar max working (test 16 bar)

Temperature Range

up to 120 °C (flow)

HS Code

8481.80
