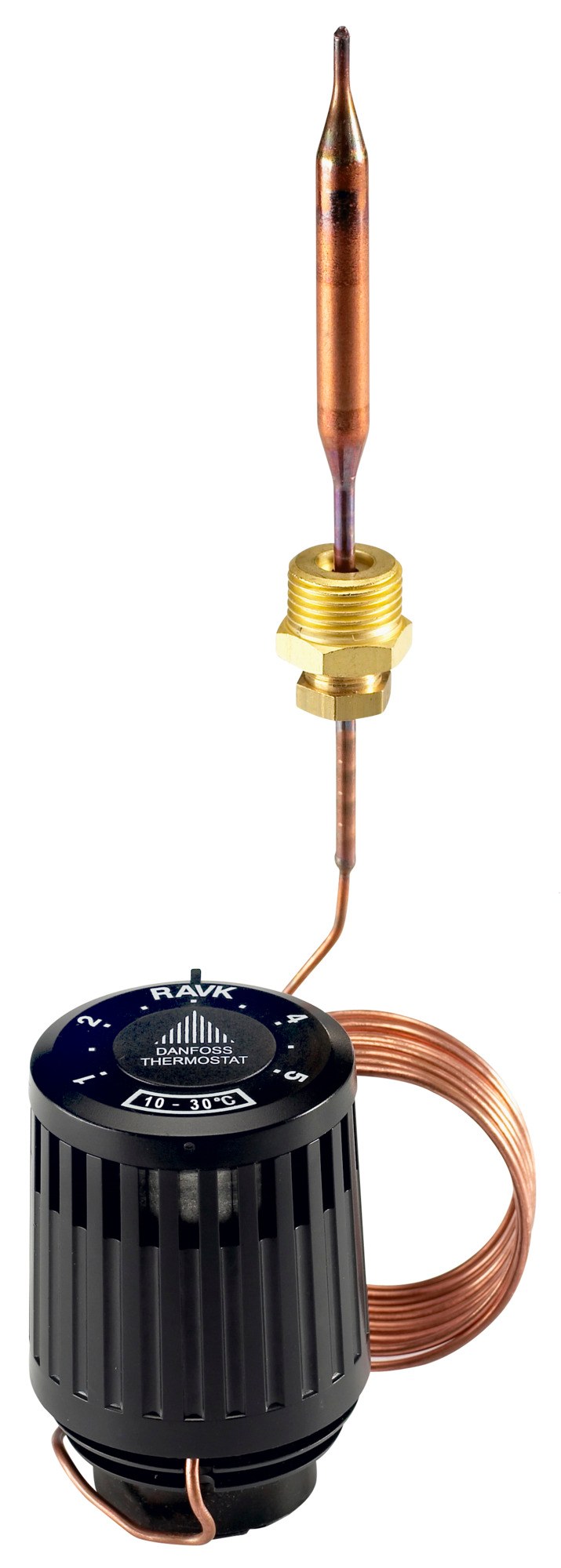

Danfoss RAVK Self-Acting Temperature Actuator 35–75 °C
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss RAVK (valve actuators), OEM order code 003L3531. Self-acting temperature actuator with a capillary-connected sensor for proportional temperature control of a matched valve body, without auxiliary power. media/setting temperature 35 °C to 75 °C. EAN 5710104069142. HS 9032.10. Specifications quoted verbatim from store.danfoss.com (code 003L3531).
Technical Specifications
- Brand
- Danfoss
- Part number
- 003L3531
- Code number
- 003L3531
- Type
- RAVK
- Product group
- Actuators - Temperature
- Gross weight
- 0.414 Kilogram
- Net weight
- 0.414 Kilogram
- Ambient temperature [°C] [max]
- 70 °C
- Ambient temperature [°C] [min]
- 0 °C
- Capillary tube length [m]
- 2 m
- Function
- Temp. controller
- Impulse tube material
- Copper mat. No 2.0090
- Media temperature at sensor [°C] [Max]
- 120 °C
- Mounting version
- Free
- Sensor connection
- M14x1 / R1/2 ext thread acc. DIN 2999
- Temperature sensor diameter [mm]
- 9.5 mm
- Temperature sensor length [mm]
- 82 mm
- Temperature setting range [°C] [Max]
- 75 °C
- Temperature setting range [°C] [Min]
- 35 °C
- Transport temperature [°C] [Max]
- 50 °C
- Transport temperature [°C] [Min]
- -20 °C
- EAN
- 5710104069142
- HS code
- 9032.10 (thermostats)
Standards & Compliance
- Temperature Range
- 35 °C to 75 °C
- HS Code
- 9032.10
Compatibility & Fitment
Genuine Danfoss part, order code 003L3531 (Actuators - Temperature). Confirm the code and matching valve/actuator family against your Danfoss datasheet before ordering.
Product Documentation
More from Danfoss
Danfoss
Danfoss QTL Self-Acting Temperature Thermostat/Actuator 45–60 °C (003L3534)
Danfoss
Danfoss QTL Self-Acting Temperature Thermostat/Actuator
003L3535
Danfoss
Danfoss QTL Self-Acting Temperature Thermostat/Actuator 45–60 °C (003L3536)
Danfoss
Danfoss Impulse Tube Set G 1/16, 1500 mm
003L3561
Danfoss
Danfoss Impulse Tube Set G 1/16, 5000 mm
003L3562
Danfoss
Danfoss AHQM Combined Automatic Flow Limiter & Differential-Pressure Controller (PICV) DN 15, PN 16 (003L3592)
Danfoss
Danfoss AHQM Combined Automatic Flow Limiter & Differential-Pressure Controller (PICV) DN 15, PN 16 (003L3593)
Danfoss

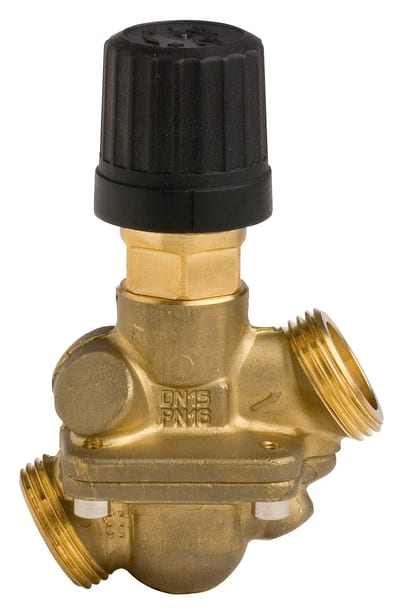

Danfoss AHQM Combined Automatic Flow Limiter & Differential-Pressure Controller (PICV) DN 15, PN 16 (003L3594)
