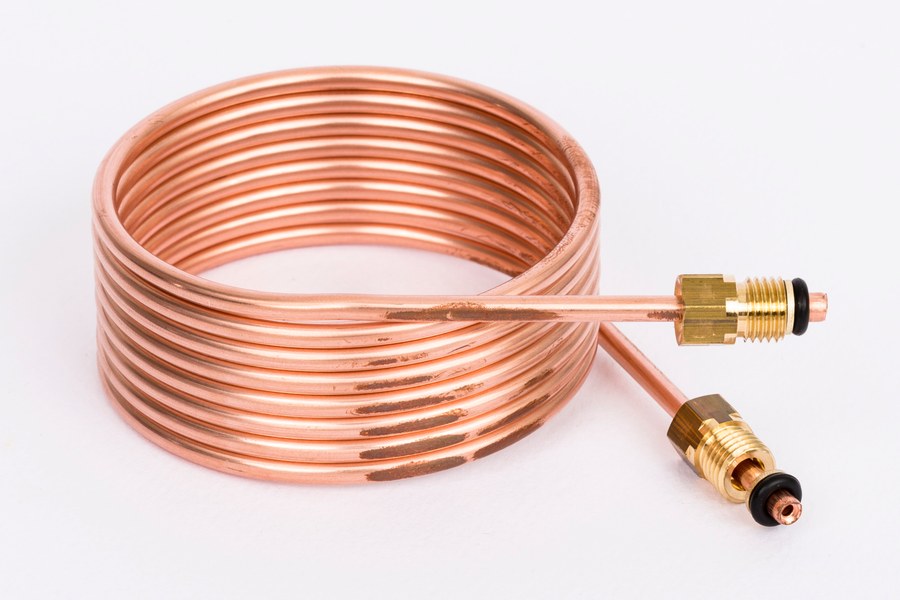

Danfoss Impulse Tube Set G 1/16, 1500 mm
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss Impulse tubes (valve accessories), OEM order code 003L3561. Impulse-tube set that connects a self-acting controller diaphragm to the pressure take-off point in the pipework. Manufacturer description: Impulse tube set AH G1/16#, fi3x1,5m. connection/size G 1/16, PN 16, body material COPPER. EAN 5710104028101. HS 8481.90. Specifications quoted verbatim from store.danfoss.com (code 003L3561).
Technical Specifications
- Brand
- Danfoss
- Part number
- 003L3561
- Code number
- 003L3561
- Type
- Impulse tubes
- Product group
- Accessories - SAC
- Description
- Impulse tube set AH G1/16#, fi3x1,5m
- Gross weight
- 0.09 Kilogram
- Net weight
- 0.09 Kilogram
- Connection size
- G 1/16
- Diameter [mm]
- 3 mm
- For product type
- AVPL
- Length [mm]
- 1500 mm
- Material
- COPPER
- Permissible media
- District heating/cooling circulation water
- Pressure nominal [bar]
- 16 bar
- Suitable for valve of diameter [mm] [Max]
- 15 mm
- Suitable for valve of diameter [mm] [Min]
- 15 mm
- Suitable for valve of pressure [bar] [Max]
- 16 bar
- Suitable for valve of pressure [bar] [Min]
- 16 bar
- EAN
- 5710104028101
- HS code
- 8481.90 (parts of taps, cocks and valves)
Standards & Compliance
- Size / Series
- G 1/16
- Material
- COPPER
- Pressure Rating
- PN 16
- HS Code
- 8481.90
Compatibility & Fitment
Genuine Danfoss part, order code 003L3561 (Accessories - SAC). Confirm the code, size (G 1/16) and matching valve/actuator family against your Danfoss datasheet before ordering.
