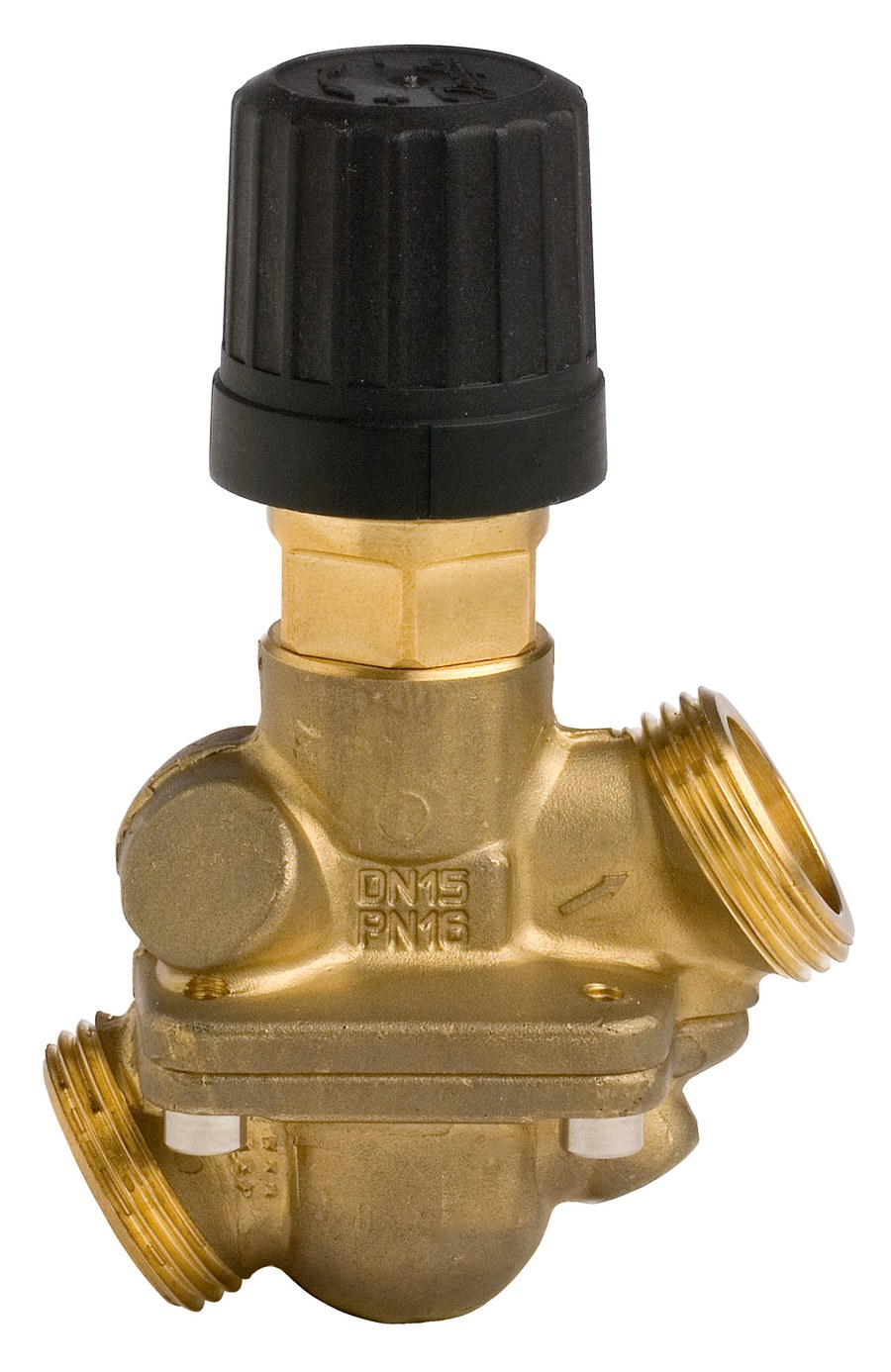

Danfoss AHQM Combined Automatic Flow Limiter & Differential-Pressure Controller (PICV) DN 15, PN 16 (003L3594)
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss AHQM (balancing valves), OEM order code 003L3594. Self-acting combined automatic flow limiter and differential-pressure controller (pressure-independent control valve) for hydronic balancing of heating and cooling circuits. Manufacturer description: AHQM PN16 15/1,6/0,12 ext.thr flow/ret. connection/size DN 15, Kvs 1.6 m³/h, PN 16; max. differential pressure 4 bar, media/setting temperature 2 °C to 120 °C, body material DZR brass CuZn36Pb2AS (CW 602N). EAN 5702421560679. HS 8481.80. Specifications quoted verbatim from store.danfoss.com (code 003L3594).
Technical Specifications
- Brand
- Danfoss
- Part number
- 003L3594
- Code number
- 003L3594
- Type
- AHQM
- Product group
- Pressure flow controllers
- Description
- AHQM PN16 15/1,6/0,12 ext.thr flow/ret
- Gross weight
- 0.472 Kilogram
- Net weight
- 0.472 Kilogram
- Actuator diaphragm material
- EPDM
- Application
- District Heating
- Cavitation factor
- 0.6
- Connection size
- G 3/4 A
- Connection types
- External Thread
- Diameter [mm]
- 15 mm
- Differential pressure range [bar] [Max]
- 4 bar
- Flow control
- Yes
- Flow limitation
- Yes
- Flow rate [m³/h]
- 1 m³/h
- Flow rate [m³/h] [Max]
- 1 m³/h
- Flow rate [m³/h] [Min]
- 0.2 m³/h
- Flow restrictor diff.pressure - dpb [bar]
- 0.12 bar
- Function
- Flow controller with int. control valve
- Function VSP - P
- No
- Function VSP - Q
- No
- Function VSP - T
- No
- Kvs values [m³/h]
- 1.6 m³/h
- Leakage rate [% Kvs]
- 0.02
- Media pH [Max]
- 10
- Media pH [Min]
- 7
- Media temperature [°C] [Max]
- 120 °C
- Media temperature [°C] [Min]
- 2 °C
- Medium alternative
- Glycolic water up to 30%
- Mounting version
- Free
- Number of ports
- 2
- Permissible media
- District heating/cooling circulation water
- PN alternative VSP
- 10
- Pressure class
- PN 16
- Pressure controller
- No
- Pressure nominal [bar]
- 16 bar
- Sealing CV material
- EPDM
- Sealing DP material
- EPDM
- Setting Type
- None
- Stem position
- Normally open
- Stroke [mm]
- 5.5 mm
- Valve body material
- DZR brass CuZn36Pb2AS (CW 602N)
- Valve cone CV material
- DZR CW602N (CuZn36Pb2As)
- Valve cone DP material
- DZR CW602N (CuZn36Pb2As)
- Valve seat material
- DZR CW602N (CuZn36Pb2As)
- Valve size
- DN 15
- EAN
- 5702421560679
- HS code
- 8481.80 (taps, cocks, valves for pipes)
Standards & Compliance
- Size / Series
- DN 15
- Material
- DZR brass CuZn36Pb2AS (CW 602N)
- Pressure Rating
- PN 16; max. differential pressure 4 bar
- Temperature Range
- 2 °C to 120 °C
- HS Code
- 8481.80
Compatibility & Fitment
Genuine Danfoss part, order code 003L3594 (Pressure flow controllers). Confirm the code, size (DN 15) and matching valve/actuator family against your Danfoss datasheet before ordering.
Product Documentation
More from Danfoss
Danfoss
Danfoss AHQM Combined Automatic Flow Limiter & Differential-Pressure Controller (PICV) DN 20, PN 16
003L3595
Danfoss
Danfoss AHQM Combined Automatic Flow Limiter & Differential-Pressure Controller (PICV) DN 25, PN 16
003L3596
Danfoss
Danfoss AHQM Combined Automatic Flow Limiter & Differential-Pressure Controller (PICV) DN 32, PN 16
003L3597
Danfoss
Danfoss AHQM Combined Automatic Flow Limiter & Differential-Pressure Controller (PICV) DN 40, PN 16
003L3601
Danfoss
Danfoss AHQM Combined Automatic Flow Limiter & Differential-Pressure Controller (PICV) DN 50, PN 16 (003L3602)
Danfoss
Danfoss AHQM Combined Automatic Flow Limiter & Differential-Pressure Controller (PICV) DN 50, PN 16 (003L3603)
Danfoss
Danfoss AHQM Combined Automatic Flow Limiter & Differential-Pressure Controller (PICV) DN 65, PN 16
003L3604
Danfoss

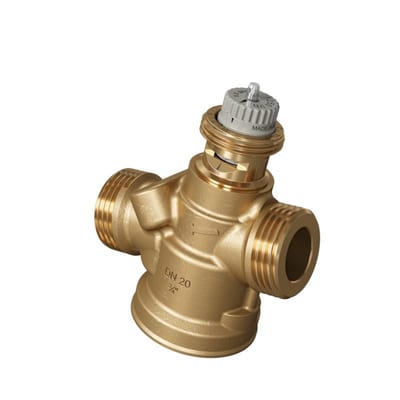

Danfoss AVQML Combined Automatic Flow Limiter & Differential-Pressure Controller DN 15, PN 25 (003L3615)
