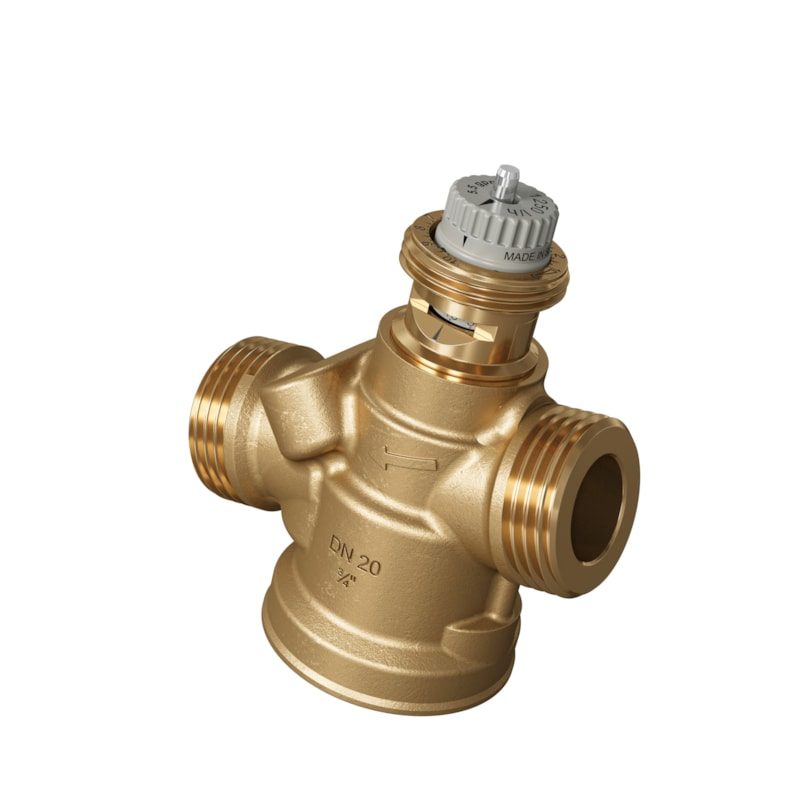

Danfoss AVQML Combined Automatic Flow Limiter & Differential-Pressure Controller DN 15, PN 25 (003L3615)
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss AVQML (balancing valves), OEM order code 003L3615. Self-acting combined automatic flow limiter and differential-pressure controller for hydronic balancing, with an integrated motorised control-valve interface. Manufacturer description: AVQML, PN 25, DN 15, 2.7, External Thread. connection/size DN 15, PN 25; max. differential pressure 8 bar, media/setting temperature 2 °C to 110 °C, body material DZR brass. EAN 5715162792261. HS 8481.80. Specifications quoted verbatim from store.danfoss.com (code 003L3615).
Technical Specifications
- Brand
- Danfoss
- Part number
- 003L3615
- Code number
- 003L3615
- Type
- AVQML
- Product group
- Pressure flow controllers
- Description
- AVQML, PN 25, DN 15, 2.7, External Thread
- Gross weight
- 0.542 Kilogram
- Net weight
- 0.485 Kilogram
- Actuator diaphragm material
- EPDM
- Application
- District Heating
- Connection size
- G 3/4 A
- Connection types
- External Thread
- Diameter [mm]
- 15 mm
- Differential pressure range [bar] [Max]
- 8 bar
- Flow control
- Yes
- Flow limitation
- Yes
- Flow rate [m³/h]
- 0.8 m³/h
- Flow rate [m³/h] [Max]
- 0.8 m³/h
- Function
- Flow controller with int. control valve
- Leakage rate [% Kvs]
- 0.01
- Media pH [Max]
- 10
- Media pH [Min]
- 7
- Media temperature [°C] [Max]
- 110 °C
- Media temperature [°C] [Min]
- 2 °C
- Medium alternative
- Glycolic water up to 30%
- Mounting version
- Free
- Permissible media
- District heating/cooling circulation water
- Pressure class
- PN 25
- Pressure controller
- No
- Pressure nominal [bar]
- 25 bar
- Stroke [mm]
- 4 mm
- Valve body material
- DZR brass
- Valve cone CV material
- PPSU
- Valve seat material
- DZR brass
- Valve size
- DN 15
- EAN
- 5715162792261
- HS code
- 8481.80 (taps, cocks, valves for pipes)
Standards & Compliance
- Size / Series
- DN 15
- Material
- DZR brass
- Pressure Rating
- PN 25; max. differential pressure 8 bar
- Temperature Range
- 2 °C to 110 °C
- HS Code
- 8481.80
Compatibility & Fitment
Genuine Danfoss part, order code 003L3615 (Pressure flow controllers). Confirm the code, size (DN 15) and matching valve/actuator family against your Danfoss datasheet before ordering.
