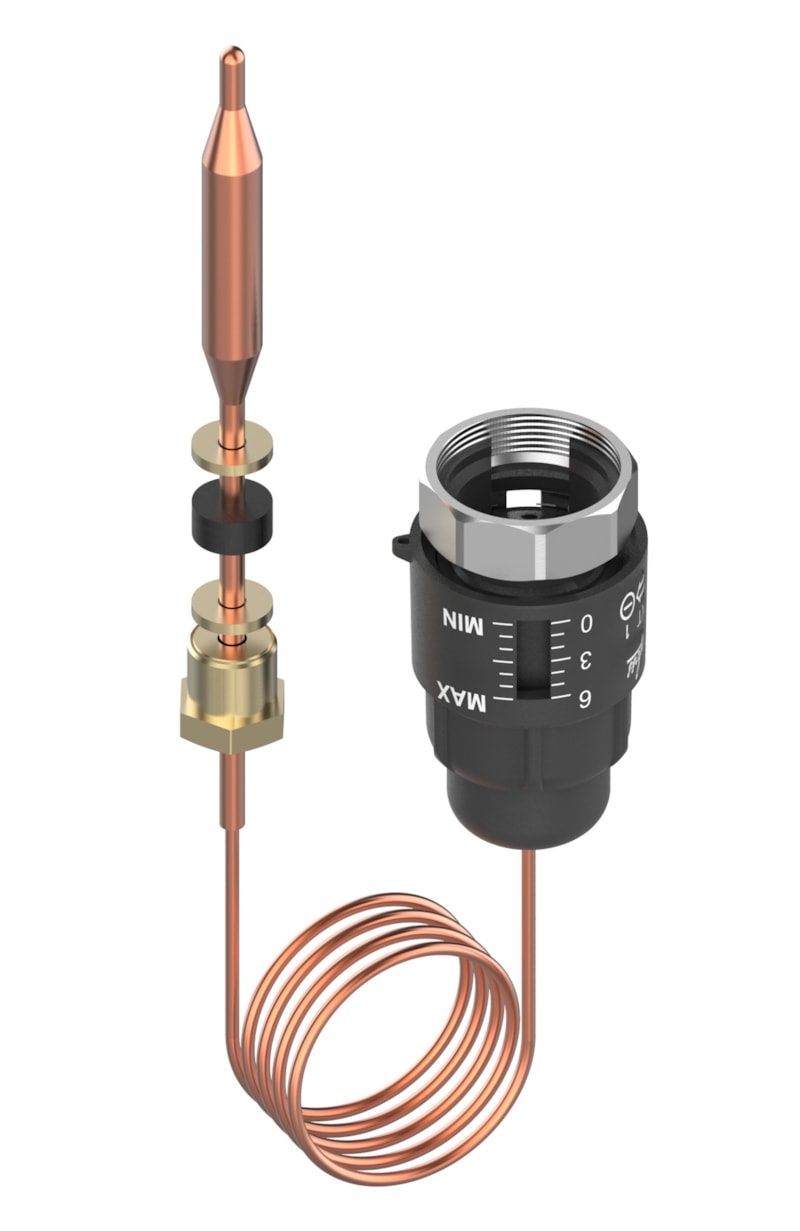

Danfoss Thermostatic Actuator/Element 40–60 °C

Danfoss Termostatic elements (valve actuators), OEM order code 003L3962. Self-acting thermostatic actuator/power element with built-in or remote sensor for temperature-controlled valve assemblies, without auxiliary power. Manufacturer description: Thermostat TPC 40 - 60 °C. media/setting temperature 40 °C to 60 °C. EAN 5702425091544. HS 9032.10. Specifications quoted verbatim from store.danfoss.com (code 003L3962).

Brand

Danfoss

Part number

003L3962

Code number

003L3962

Type

Termostatic elements

Product group

Accessories - SAC

Description

Thermostat TPC 40 - 60 °C

Gross weight

0.182 Kilogram

Net weight

0.178 Kilogram

Ambient temperature [°C] [max]

70 °C

Ambient temperature [°C] [min]

0 °C

Capillary tube length [m]

0.6 m

Function

Flow compensated temp. controller

Impulse tube material

Copper mat. No 2.0090

Media temperature at sensor [°C] [Max]

70 °C

Sensor connection

M14x1

Temperature sensor diameter [mm]

9.5 mm

Temperature sensor length [mm]

64 mm

Temperature sensor material

Copper mat. No 2.0090

Temperature setting range [°C] [Max]

60 °C

Temperature setting range [°C] [Min]

40 °C

Time constant [sec]

3 "

Transport temperature [°C] [Max]

50 °C

Transport temperature [°C] [Min]

-20 °C

EAN

5702425091544

HS code

9032.10 (thermostats)

Temperature Range

40 °C to 60 °C

HS Code

9032.10
