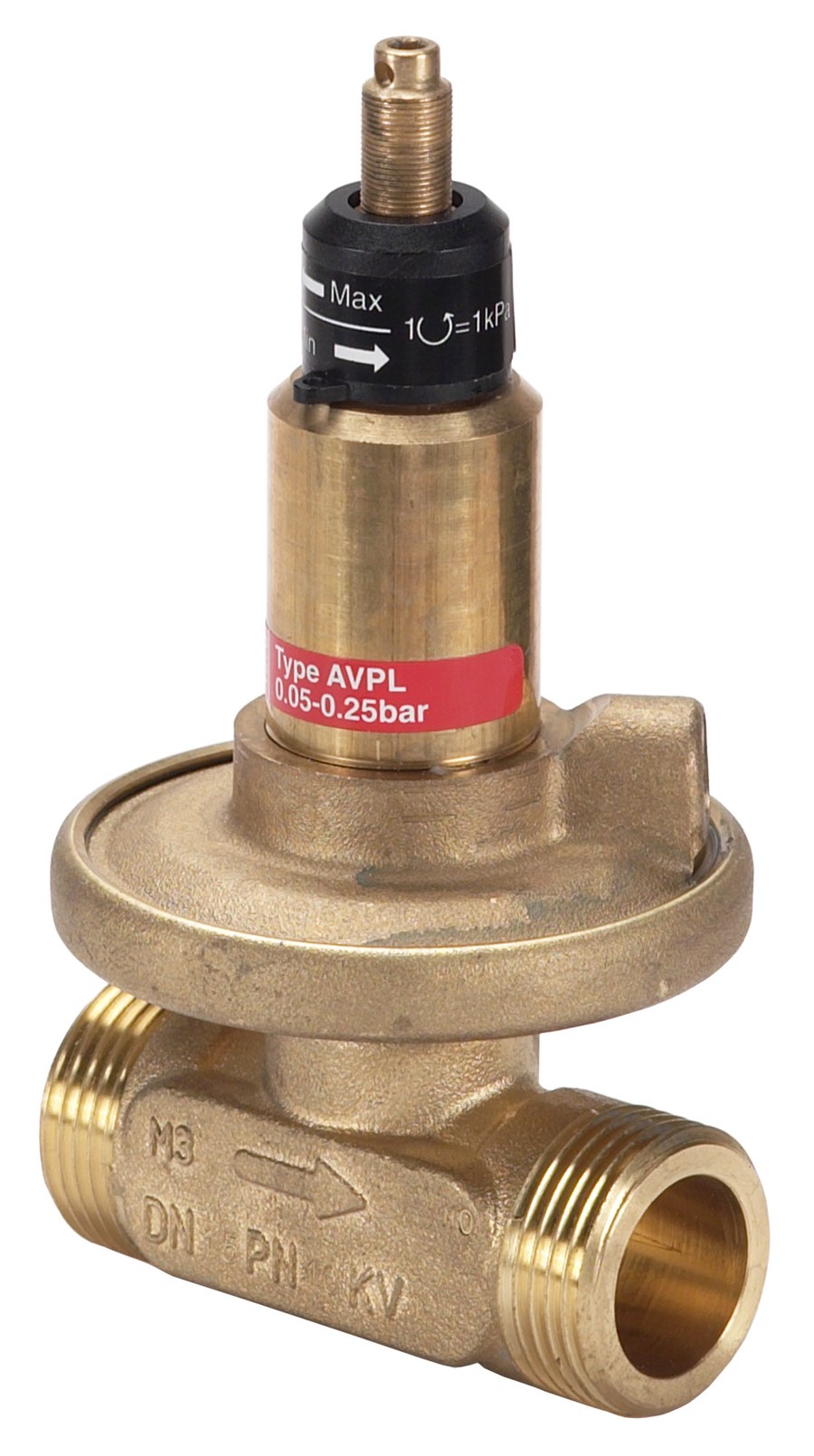

Danfoss AVPL Self-Acting Differential-Pressure Controller DN 15, PN 16 (003L5030)
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss AVPL (balancing valves), OEM order code 003L5030. Self-acting differential-pressure controller mounted in the return that holds a constant differential pressure across a heating or cooling circuit. Manufacturer description: AVPL PN16 15/1 0,05-0,25 ext. thr ret. connection/size DN 15, Kvs 1 m³/h, PN 16; max. differential pressure 4.5 bar, media/setting temperature 2 °C to 120 °C, body material DZR brass CuZn36Pb2AS (CW 602N). EAN 5702421600009. HS 8481.80. Specifications quoted verbatim from store.danfoss.com (code 003L5030).
Technical Specifications
- Brand
- Danfoss
- Part number
- 003L5030
- Code number
- 003L5030
- Type
- AVPL
- Product group
- Pressure flow controllers
- Description
- AVPL PN16 15/1 0,05-0,25 ext. thr ret
- Gross weight
- 0.639 Kilogram
- Net weight
- 0.639 Kilogram
- Actuator diaphragm material
- EPDM
- Application
- Heating and cooling
- Cavitation factor
- 0.5
- Cavitation factor 100%
- 0.41
- Cavitation factor 25%
- 0.69
- Cavitation factor 50%
- 0.62
- Cavitation factor 75%
- 0.6
- Connection size
- G 3/4 A
- Connection types
- External Thread
- Diameter [mm]
- 15 mm
- Differential pressure range [bar] [Max]
- 4.5 bar
- Differential pressure setting [bar] [Max]
- 0.25 bar
- Differential pressure setting [bar] [Min]
- 0.05 bar
- Flow control
- No
- Flow limitation
- No
- Function
- Diff. press. controller
- Function VSP - P
- Yes
- Function VSP - Q
- No
- Function VSP - T
- No
- Kvs values [m³/h]
- 1 m³/h
- Media pH [Max]
- 10
- Media pH [Min]
- 7
- Media temperature [°C] [Max]
- 120 °C
- Media temperature [°C] [Min]
- 2 °C
- Medium alternative
- Glycolic water up to 30%
- Mounting version
- Return
- Number of ports
- 2
- Permissible media
- District heating/cooling circulation water
- PN alternative VSP
- 10
- Pressure class
- PN 16
- Pressure controller
- Differential pressure controller
- Pressure nominal [bar]
- 16 bar
- Setting Type
- Adjustable
- Stem position
- Normally open
- Valve body material
- DZR brass CuZn36Pb2AS (CW 602N)
- Valve cone DP material
- Stainless steel
- Valve seat material
- Stainless steel
- Valve size
- DN 15
- EAN
- 5702421600009
- HS code
- 8481.80 (taps, cocks, valves for pipes)
Standards & Compliance
- Size / Series
- DN 15
- Material
- DZR brass CuZn36Pb2AS (CW 602N)
- Pressure Rating
- PN 16; max. differential pressure 4.5 bar
- Temperature Range
- 2 °C to 120 °C
- HS Code
- 8481.80
Compatibility & Fitment
Genuine Danfoss part, order code 003L5030 (Pressure flow controllers). Confirm the code, size (DN 15) and matching valve/actuator family against your Danfoss datasheet before ordering.
