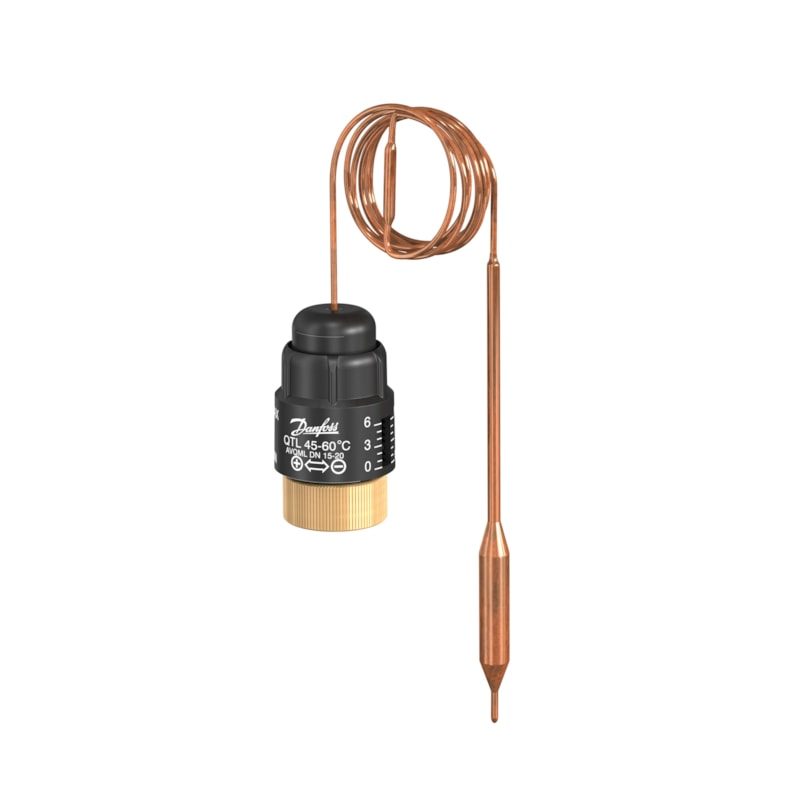

Danfoss QTL Self-Acting Temperature Thermostat/Actuator 45–60 °C (003L3534)
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss QTL (valve actuators), OEM order code 003L3534. Self-acting temperature thermostat/actuator with a capillary-connected remote sensor that positions a control valve to hold a set temperature, without auxiliary power. Manufacturer description: QTL Thermostat 45-60 2m capillary tube. media/setting temperature 45 °C to 60 °C. EAN 5710104093819. HS 9032.10. Specifications quoted verbatim from store.danfoss.com (code 003L3534).
Technical Specifications
- Brand
- Danfoss
- Part number
- 003L3534
- Code number
- 003L3534
- Type
- QTL
- Product group
- Actuators - Temperature
- Description
- QTL Thermostat 45-60 2m capillary tube
- Gross weight
- 0.252 Kilogram
- Net weight
- 0.23 Kilogram
- Capillary tube length [m]
- 2.2 m
- Capillary tube material
- Copper
- Media temperature at sensor [°C] [Max]
- 90 °C
- Temperature sensor diameter [mm]
- 9.5 mm
- Temperature sensor length [mm]
- 69 mm
- Temperature sensor material
- Copper mat. No 2.0090
- Temperature setting range [°C] [Max]
- 60 °C
- Temperature setting range [°C] [Min]
- 45 °C
- EAN
- 5710104093819
- HS code
- 9032.10 (thermostats)
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- Label product
- No
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
Standards & Compliance
- Temperature Range
- 45 °C to 60 °C
- HS Code
- 9032.10
Compatibility & Fitment
Genuine Danfoss part, order code 003L3534 (Actuators - Temperature). Confirm the code and matching valve/actuator family against your Danfoss datasheet before ordering.
Product Documentation
More from Danfoss
Danfoss
Danfoss QTL Self-Acting Temperature Thermostat/Actuator
003L3535
Danfoss
Danfoss QTL Self-Acting Temperature Thermostat/Actuator 45–60 °C (003L3536)
Danfoss
Danfoss Impulse Tube Set G 1/16, 1500 mm
003L3561
Danfoss
Danfoss Impulse Tube Set G 1/16, 5000 mm
003L3562
Danfoss
Danfoss AHQM Combined Automatic Flow Limiter & Differential-Pressure Controller (PICV) DN 15, PN 16 (003L3592)
Danfoss
Danfoss AHQM Combined Automatic Flow Limiter & Differential-Pressure Controller (PICV) DN 15, PN 16 (003L3593)
Danfoss
Danfoss AHQM Combined Automatic Flow Limiter & Differential-Pressure Controller (PICV) DN 15, PN 16 (003L3594)

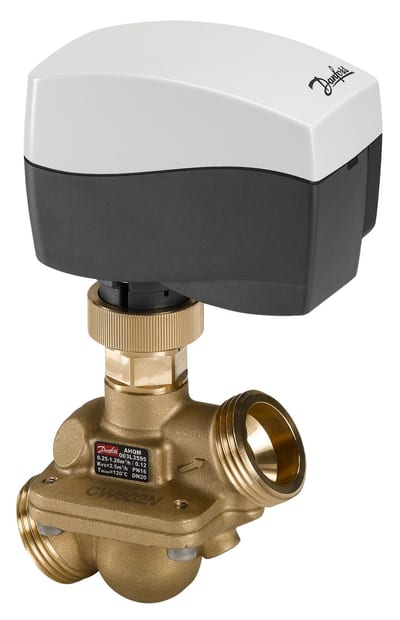

Danfoss
