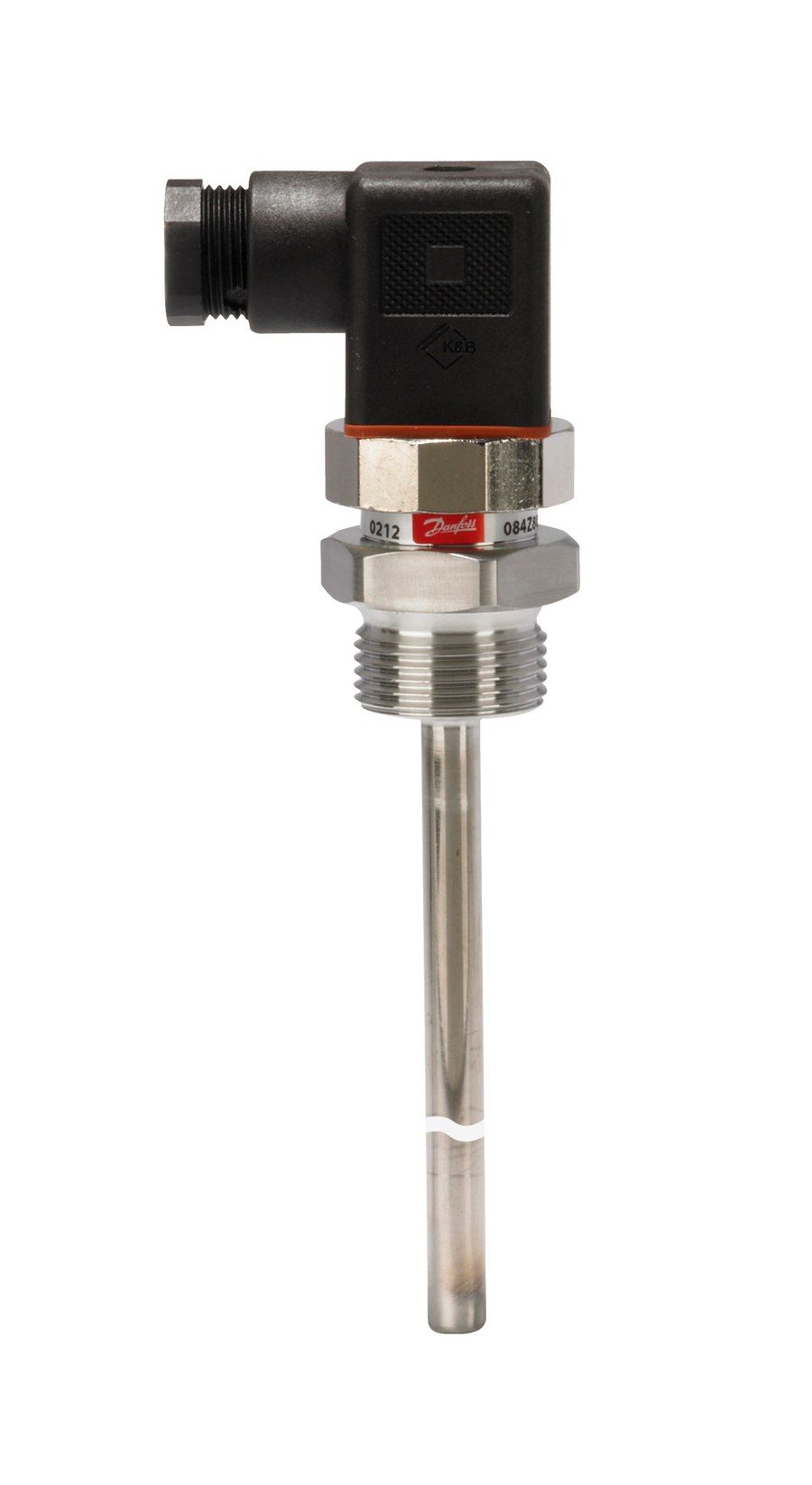

Danfoss MBT 5250 temperature sensor, Pt 100 100 ohm, 80 mm insertion, UNF 3/4-16 process connection
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 5250 heavy-duty temperature sensor, code 084Z8095 (type designation MBT 5250-0000-080-290). Insertion RTD temperature sensor for controlling cooling water, lubricating oil, hydraulic oil and refrigeration plant in general industry and marine installations. Standardized Pt 100 platinum resistance (100 ohm at 0 C) measuring element, Class B tolerance per EN 60751. Insertion length 80 mm; UNF 3/4-16 UNF (ASME B1.1) process connection; AISI 316 Ti stainless-steel protection tube, 8 mm diameter. Measuring range -50 to +200 C (-58 to +392 F); resistance (ohm) output. Angular connector (form A) per EN 175301-803-A, Pg 11; IP65 enclosure per IEC 60529. Supplied in a 20-piece multipack. CE marked.
Technical Specifications
- Type
- MBT 5250 (heavy-duty insertion temperature sensor)
- Type designation
- MBT 5250-0000-080-290
- Code number
- 084Z8095
- Sensor element
- Pt 100 platinum resistance (100 ohm at 0 C)
- Tolerance class
- Class B per EN 60751
- Insertion length
- 80 mm
- Process connection
- UNF 3/4-16 UNF (ASME B1.1)
- Protection tube
- AISI 316 Ti stainless steel, 8 mm diameter
- Measuring range
- -50 to +200 C (-58 to +392 F)
- Output signal
- Ohm (resistance)
- Electrical connection
- Angular connector (form A) per EN 175301-803-A, Pg 11
- Enclosure rating
- IP65 per IEC 60529
- Packing format
- Multi pack (20 pc)
- Approvals
- CE
- EAN
- 5702423093243
- Net weight
- 0.142 Kilogram
- Product group
- Sensors
- Ambient temperature max. [°C]
- 125 °C
- Ambient temperature max. [°F]
- 257 °F
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Connection material
- Stainless steel
- Connection standard
- ANSI/ASME B1.1
- Connection type
- UNF
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. Male/Female
- Male and Female
- Electrical connection size
- Pg 11
- Electrical connection standard
- EN 175301-803-A
- Enclosure rating IP
- IP65
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- In scope of WEEE
- Yes
- Insertion length [in]
- 3.15 in
- Insertion length [mm]
- 80 mm
- Insertion type
- Fixed
- Measuring range [°C] [max]
- 200 °C
- Measuring range [°C] [min]
- -50 °C
- Measuring range [°F] [max]
- 392 °F
- Measuring range [°F] [min]
- -58 °F
- Number of terminals [pcs]
- 3 pc
- Process connection Male/Female
- Male
- Process connection material
- Stainless steel
- Process connection size
- 3/4-16
- Process connection standard
- ASME B1.1
- Process connection type
- UNF
- Protection tube diameter [in]
- 0.315 in
- Protection tube diameter [mm]
- 8 mm
- Protection tube material
- AISI 316 TI
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Sensor elem. resistance [Ohm]
- 100 Ohm
- Sensor element [pc]
- 1 pc
- Sensor element standard
- EN 60751
- Sensor element tolerance
- Class B
- Sensor element type
- Pt
- Sensor Insert
- Exchangeable
- Temperature range [°C] [max]
- 200 °C
- Temperature range [°C] [min]
- -50 °C
- Temperature range [°F] [max]
- 392 °F
- Temperature range [°F] [min]
- -58 °F
- Wires [pcs]
- 2 pc
Standards & Compliance
- Size / Series
- 80 mm insertion
- Material
- AISI 316 Ti stainless steel
- Thread Standard
- ASME B1.1
- Temperature Range
- -50 to +200 C
- IP Rating
- IP65
- HS Code
- 9025.19
Compatibility & Fitment
MBT 5250 insertion sensor. Confirm the required insertion length (80 mm), process thread (UNF 3/4-16) and element type (Pt 100) match the thermowell/pocket and controller input before ordering. A matching thermowell can be ordered separately.
