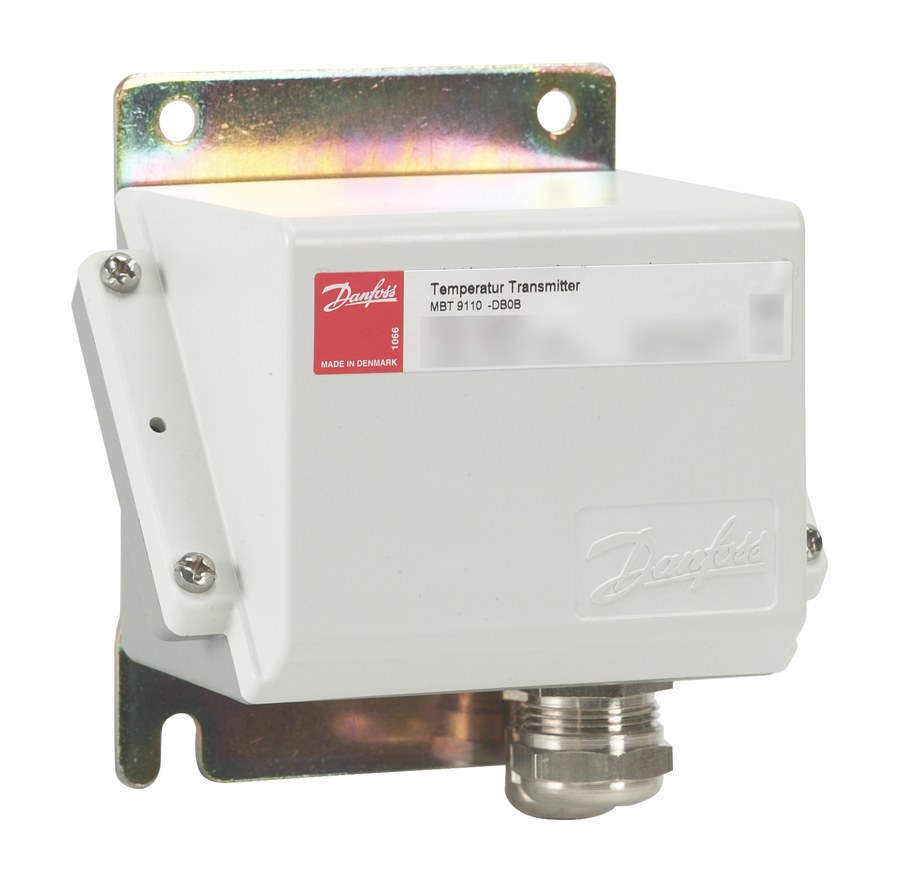

Danfoss MBT 9110 temperature transmitter, Pt 100 input, 4-20 mA output, -50 to +50 C range (code 084Z8115)
Danfoss · Sensors & Instrumentation · Temperature Sensors
Danfoss MBT 9110 temperature transmitter, code 084Z8115 (type designation MBT 9110-000B-D405). Two-wire loop-powered transmitter that converts a Pt 100 resistance input into a linear 4-20 mA output over a factory-set measuring range of -50 to +50 C (-58 to +122 F). Pt 100 platinum input (100 ohm at 0 C) per EN 60751. Supply voltage 8-35 V DC; 2-wire connection, 2 terminals. IP54 enclosure; standard box (head-mount) housing. Supplied in an 8-piece multipack. CE marked.
Specifications
- Part number
- 084Z8115
- HS code
- 9025.19
- Temperature range
- -50 to +50 C
- IP rating
- IP54
Compatibility
MBT 9110 loop-powered transmitter with a factory-set -50 to +50 C range. Pair with a Pt 100 sensor (e.g. an MBT 5250) and confirm the range suits the process and the 4-20 mA loop before ordering; range is not field-adjustable.
Standards
Approvals
