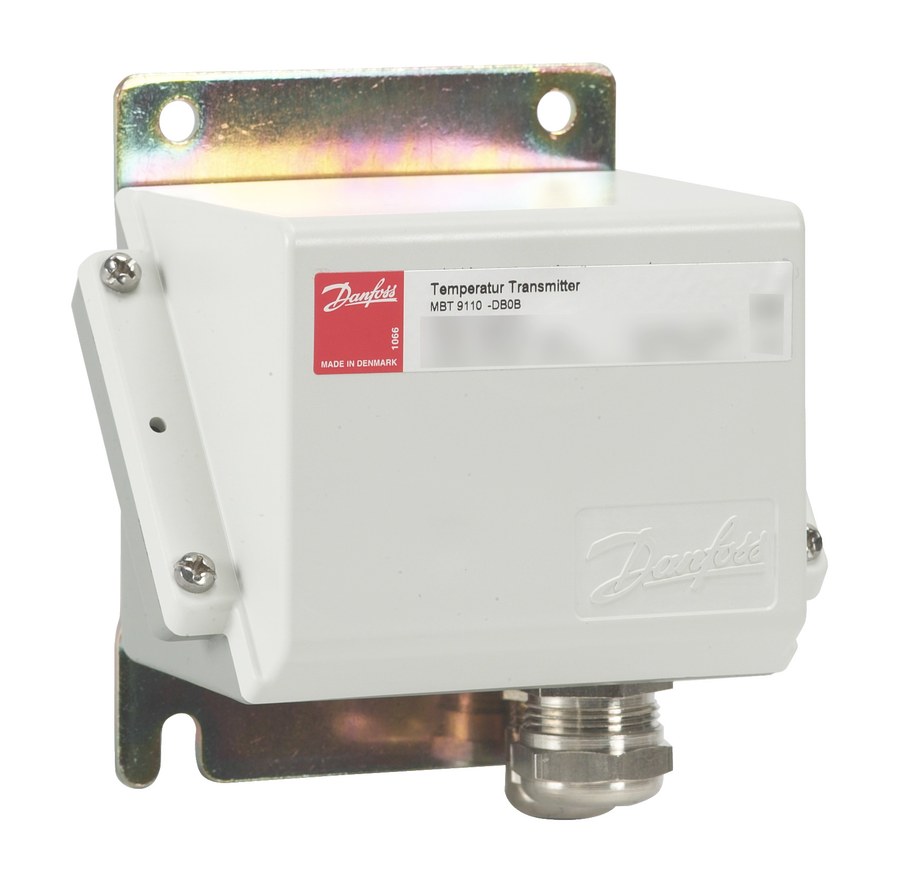

Danfoss MBT 9110 temperature transmitter, Pt 100 input, 4-20 mA output, 0 to +150 C range
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 9110 temperature transmitter, code 084Z8121 (type designation MBT 9110-000B-D115). Two-wire loop-powered transmitter that converts a Pt 100 resistance input into a linear 4-20 mA output over a factory-set measuring range of 0 to +150 C (+32 to +302 F). Pt 100 platinum input (100 ohm at 0 C) per EN 60751. Supply voltage 8-35 V DC; 2-wire connection, 2 terminals. IP54 enclosure; standard box (head-mount) housing. Supplied in an 8-piece multipack. CE marked.
Technical Specifications
- Type
- MBT 9110 (temperature transmitter)
- Type designation
- MBT 9110-000B-D115
- Code number
- 084Z8121
- Sensor input
- Pt 100 platinum resistance (100 ohm at 0 C) per EN 60751
- Measuring range
- 0 to +150 C (+32 to +302 F)
- Output signal
- 4-20 mA (2-wire, loop powered)
- Supply voltage
- 8-35 V DC
- Electrical connection
- 2-wire output, 2 terminals
- Enclosure rating
- IP54
- Transmitter type
- Standard in box (head-mount)
- Packing format
- Multi pack (8 pc)
- Approvals
- CE
- EAN
- 5702423098736
- Net weight
- 0.394 Kilogram
- Product group
- Sensors
- Ambient temperature max. [°C]
- 85 °C
- Ambient temperature max. [°F]
- 185 °F
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection size
- 2 terminals
- Enclosure rating IP
- IP54
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- In scope of WEEE
- Yes
- Insertion type
- Fixed
- Measuring range [°C] [max]
- 150 °C
- Measuring range [°C] [min]
- 0 °C
- Measuring range [°F] [max]
- 302 °F
- Measuring range [°F] [min]
- 32 °F
- Number of terminals [pcs]
- 2 pc
- Output signal [mA] [max]
- 20 mA
- Output signal [mA] [min]
- 4 mA
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Sensor elem. resistance [Ohm]
- 100 Ohm
- Sensor element [pc]
- 1 pc
- Sensor element type
- Pt
- Supply voltage [V] DC [max]
- 35 V
- Supply voltage [V] DC [min]
- 8 V
- Temperature range [°C] [max]
- 850 °C
- Temperature range [°C] [min]
- -200 °C
- Temperature range [°F] [max]
- 1562 °F
- Temperature range [°F] [min]
- -328 °F
- Transmitter setting range [°C] [max]
- 150 °C
- Transmitter setting range [°C] [min]
- 0 °C
- Transmitter setting range [°F] [max]
- 302 °F
- Transmitter setting range [°F] [min]
- 32 °F
- Wires [pcs]
- 3 pc
Standards & Compliance
- Temperature Range
- 0 to +150 C
- IP Rating
- IP54
- HS Code
- 9025.19
Compatibility & Fitment
MBT 9110 loop-powered transmitter with a factory-set 0 to +150 C range. Pair with a Pt 100 sensor (e.g. an MBT 5250) and confirm the range suits the process and the 4-20 mA loop before ordering; range is not field-adjustable.
