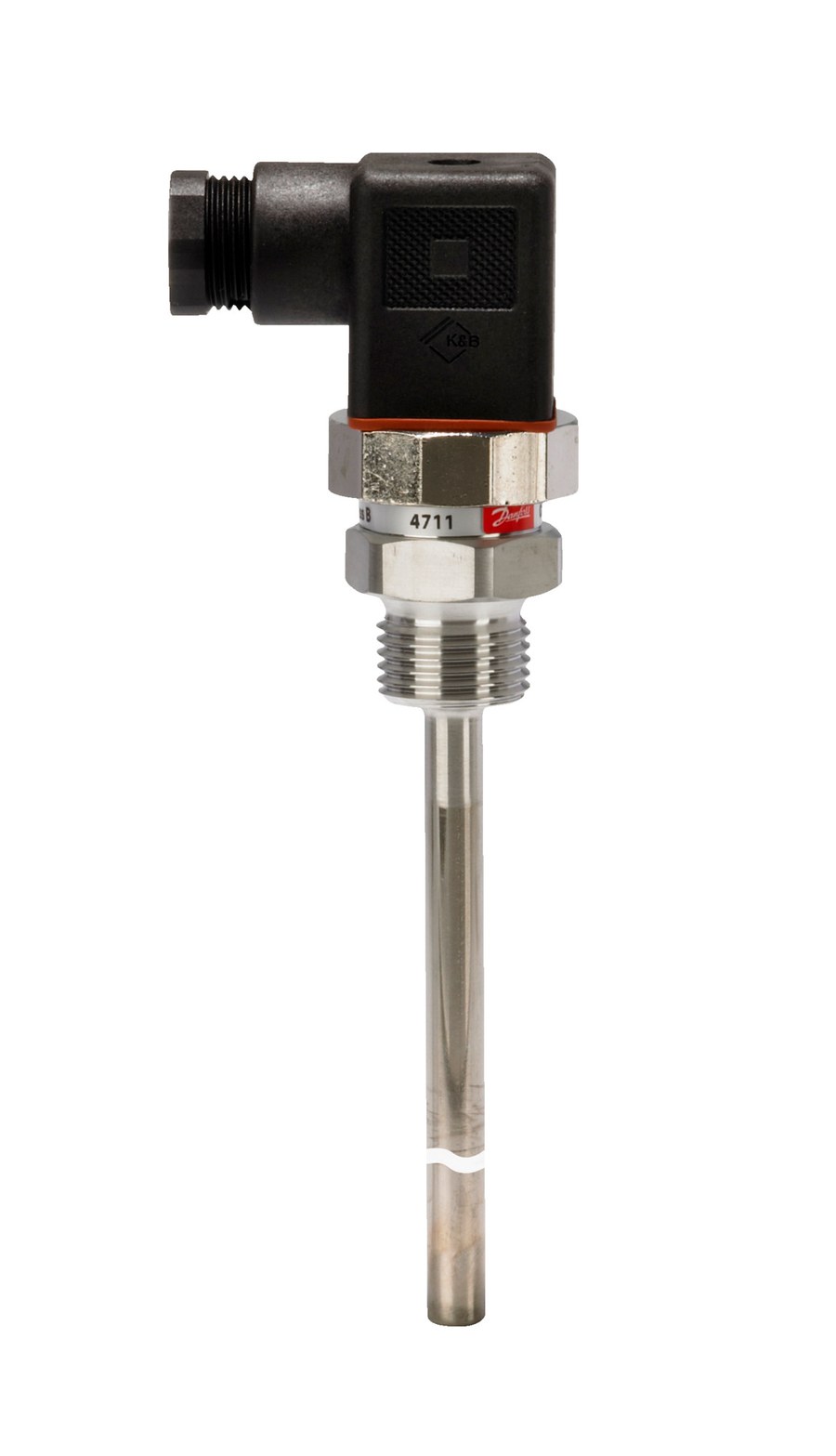

Danfoss MBT 5250 temperature sensor, Pt 100 100 ohm, 100 mm insertion, G 1/2 process connection (code 084Z8189)
Danfoss · Sensors & Instrumentation · Temperature Sensors
Danfoss MBT 5250 heavy-duty temperature sensor, code 084Z8189 (type designation MBT 5250-0000-100-322). Insertion RTD temperature sensor for controlling cooling water, lubricating oil, hydraulic oil and refrigeration plant in general industry and marine installations. Standardized Pt 100 platinum resistance (100 ohm at 0 C) measuring element, 0.161 tolerance per EN 60751. Insertion length 100 mm; G 1/2 (ISO 228-1) process connection; AISI 316 Ti stainless-steel protection tube, 8 mm diameter. Measuring range -50 to +200 C (-58 to +392 F); resistance (ohm) output. Angular connector (form A) per EN 175301-803-A, Pg 13.5; IP65 enclosure per IEC 60529. Supplied in a 5702423104536-piece multipack. CE marked.
Specifications
- Part number
- 084Z8189
- HS code
- 9025.19
- Material
- AISI 316 Ti stainless steel
- Temperature range
- -50 to +200 C
- IP rating
- IP65
- Standard size
- 100 mm insertion
- Thread standard
- ISO 228-1
Compatibility
MBT 5250 insertion sensor. Confirm the required insertion length (100 mm), process thread (G 1/2) and element type (Pt 100) match the thermowell/pocket and controller input before ordering. A matching thermowell can be ordered separately.
Standards
- EN 60751
- EN 175301-803-A
- IEC 60529
Approvals
