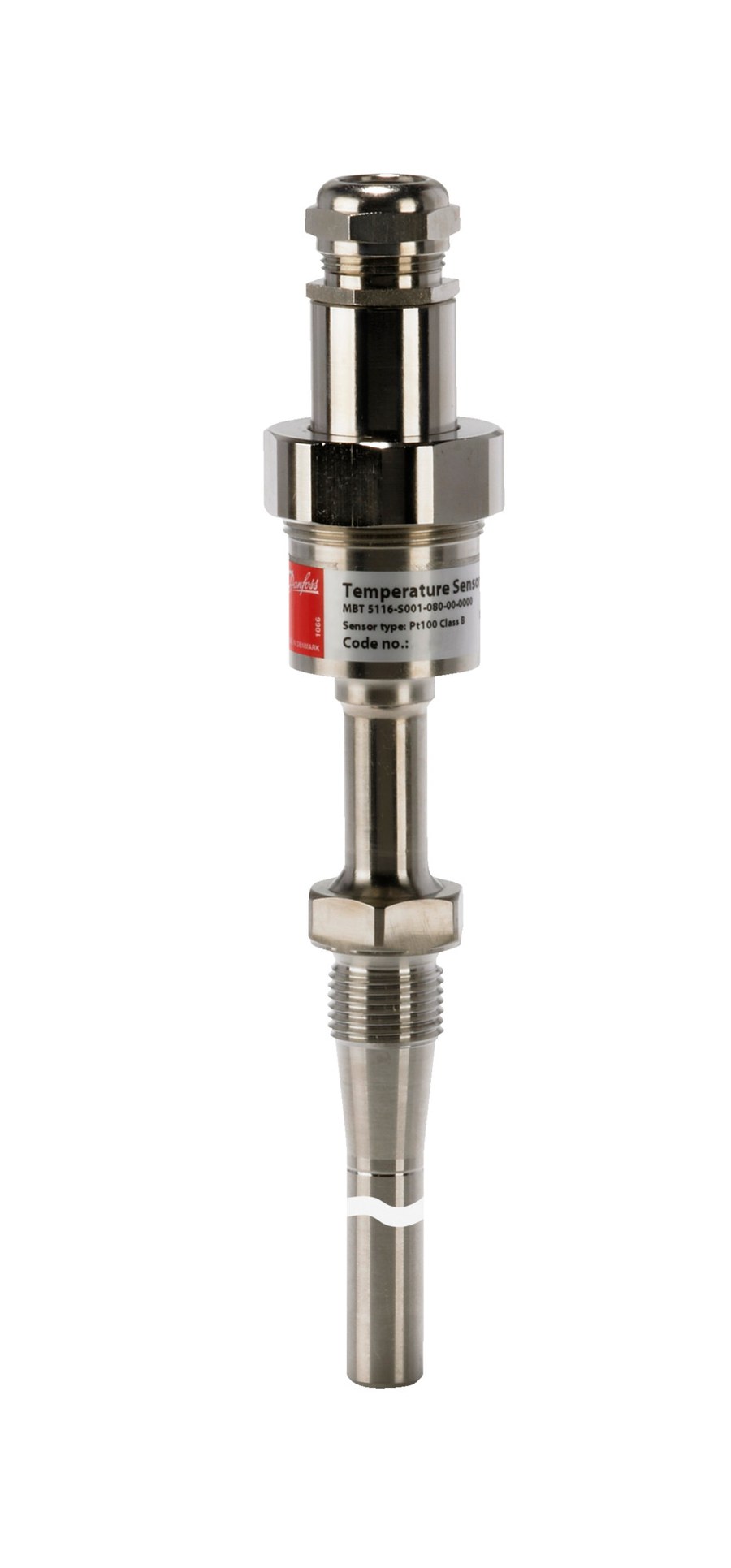

Danfoss MBT 5116 slim-line temperature sensor, Pt 100 100 ohm, 80 mm insertion, G 1/2 process connection (code 084Z8157)
Danfoss · Sensors & Instrumentation · Temperature Sensors
Danfoss MBT 5116 slim-line temperature sensor, code 084Z8157 (type designation MBT 5116-S001-080-00-0000). Insertion RTD temperature sensor with a replaceable measuring element, for higher-temperature process, industry and marine applications. Standardized Pt 100 platinum resistance (100 ohm at 0 C) measuring element, Class B tolerance per EN 60751. Insertion length 80 mm; G 1/2 (ISO 228-1) process connection; AISI 316 Ti stainless-steel protection tube. Measuring range -50 to +600 C (-58 to +1112 F); resistance (ohm) output, 2-wire, 3 terminals with one exchangeable sensor element. Slim-line connection head, Pg 13.5; IP65 enclosure per IEC 60529. Supplied in a 13-piece multipack. CE marked.
Specifications
- Part number
- 084Z8157
- HS code
- 9025.19
- Material
- AISI 316 Ti stainless steel
- Temperature range
- -50 to +600 C
- IP rating
- IP65
- Standard size
- 80 mm insertion
- Thread standard
- ISO 228-1
Compatibility
MBT 5116 slim-line insertion sensor with a replaceable Pt 100 element. Confirm the insertion length (80 mm) and process thread (G 1/2) match the thermowell/pocket before ordering.
Standards
Approvals
