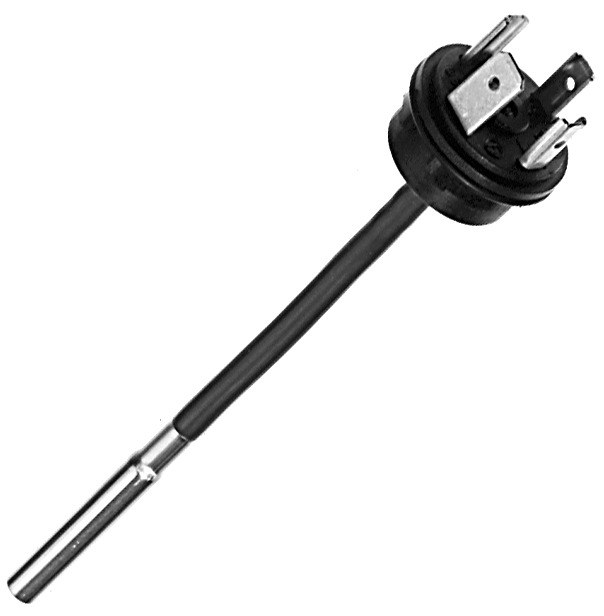

Danfoss MBT 150 temperature sensor insert, Pt 100 100 ohm, 60 mm insertion
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 150 replaceable measuring insert, code 084Z8147 (type designation MBT 150-000-060-0). Changeable Pt 100 measuring element for the MBT 5250 heavy-duty insertion temperature sensor, letting the sensing element be renewed without removing the sensor pocket from the process. Standardized Pt 100 platinum element (100 ohm at 0 C), Class B tolerance per EN 60751. Insertion length 60 mm; protection tube 6 mm diameter. Measuring range -50 to +200 C (-58 to +392 F); resistance (ohm) output, 2-wire. Angular connector (4-pin) per EN 175301-803-A; IP00 enclosure. Supplied in a 10-piece multipack. CE marked.
Technical Specifications
- Type
- MBT 150 measuring insert (replaceable element for MBT 5250)
- Type designation
- MBT 150-000-060-0
- Code number
- 084Z8147
- Sensor element
- Pt 100 platinum resistance (100 ohm at 0 C)
- Tolerance class
- Class B per EN 60751
- Insertion length
- 60 mm
- Protection tube diameter
- 6 mm
- Measuring range
- -50 to +200 C (-58 to +392 F)
- Output signal
- Ohm (resistance), 2-wire
- Electrical connection
- Angular connector (4-pin) per EN 175301-803-A
- Enclosure rating
- IP00
- Packing format
- Multi pack (10 pc)
- Approvals
- CE
- EAN
- 5702423247943
- Net weight
- 0.013 Kilogram
- Product group
- Accessories, sensors
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection size
- 4 pin
- Electrical connection standard
- EN 175301-803-A
- Enclosure rating IP
- IP00
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- In scope of WEEE
- Yes
- Insertion length [in]
- 2.36 in
- Insertion length [mm]
- 60 mm
- Insertion type
- Fixed
- Number of terminals [pcs]
- 3 pc
- Protection tube diameter [in]
- 0.236 in
- Protection tube diameter [mm]
- 6 mm
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Sensor elem. resistance [Ohm]
- 100 Ohm
- Sensor element [pc]
- 1 pc
- Sensor element standard
- EN 60751
- Sensor element tolerance
- Class B
- Sensor element type
- Pt
- Temperature range [°C] [max]
- 200 °C
- Temperature range [°C] [min]
- -50 °C
- Temperature range [°F] [max]
- 392 °F
- Temperature range [°F] [min]
- -58 °F
- Used for product
- MBT 5250
- Wires [pcs]
- 2 pc
Standards & Compliance
- Size / Series
- 60 mm insertion
- Temperature Range
- -50 to +200 C
- IP Rating
- IP00
- HS Code
- 9025.90
Compatibility & Fitment
Replaceable measuring insert for the Danfoss MBT 5250 heavy-duty temperature sensor. Confirm the insertion length (60 mm) matches the installed MBT 5250 pocket before ordering.
