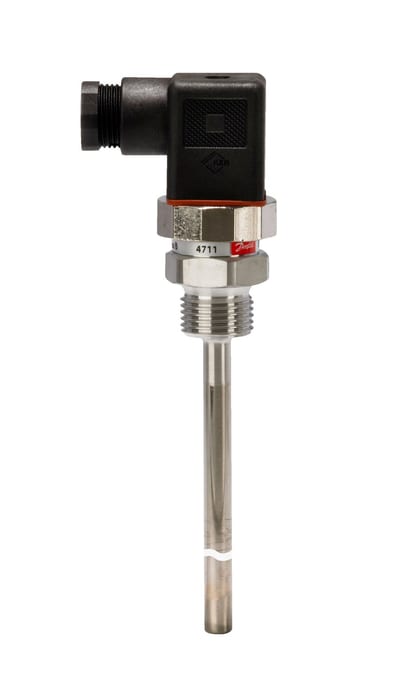

Danfoss MBT 5252 heavy-duty temperature sensor, Pt100 100 ohm, 150 mm insertion, G 1/2 process connection (code 084Z8212)
Danfoss · Sensors & Instrumentation · Temperature Sensors
Danfoss MBT 5252 heavy-duty temperature sensor, code 084Z8212 (type designation MBT 5252-0011-0150-0200-0000). Terminal-box (Type B head) insertion temperature sensor for cooling water, lubricating and hydraulic oil, and refrigeration plant in industrial and marine installations. Standardized Pt 100 platinum resistance element (100 ohm at 0 C), Class B tolerance per EN 60751. Insertion length 150 mm; G 1/2 male process connection (ISO 228-1-A). AISI 316 Ti stainless-steel protection tube, 10 mm. Measuring range -50 to +200 C (-58 to +392 F); output Ohm (resistance). Type B terminal-box head, Pg 16; IP65 enclosure per IEC 60529. The measuring insert is exchangeable. Supplied in a 8-piece multipack. CE marked.
Specifications
- Part number
- 084Z8212
- HS code
- 9025.19
- Material
- AISI 316 Ti stainless steel
- Temperature range
- -50 to +200 C
- IP rating
- IP65
- Standard size
- 150 mm insertion
- Thread standard
- ISO 228-1-A
Compatibility
MBT 5252 insertion sensor with exchangeable measuring insert. Confirm the required insertion length (150 mm), process thread (G 1/2) and element type (Pt 100) match the thermowell/pocket and controller input before ordering. A matching thermowell can be ordered separately.
Standards
Approvals
