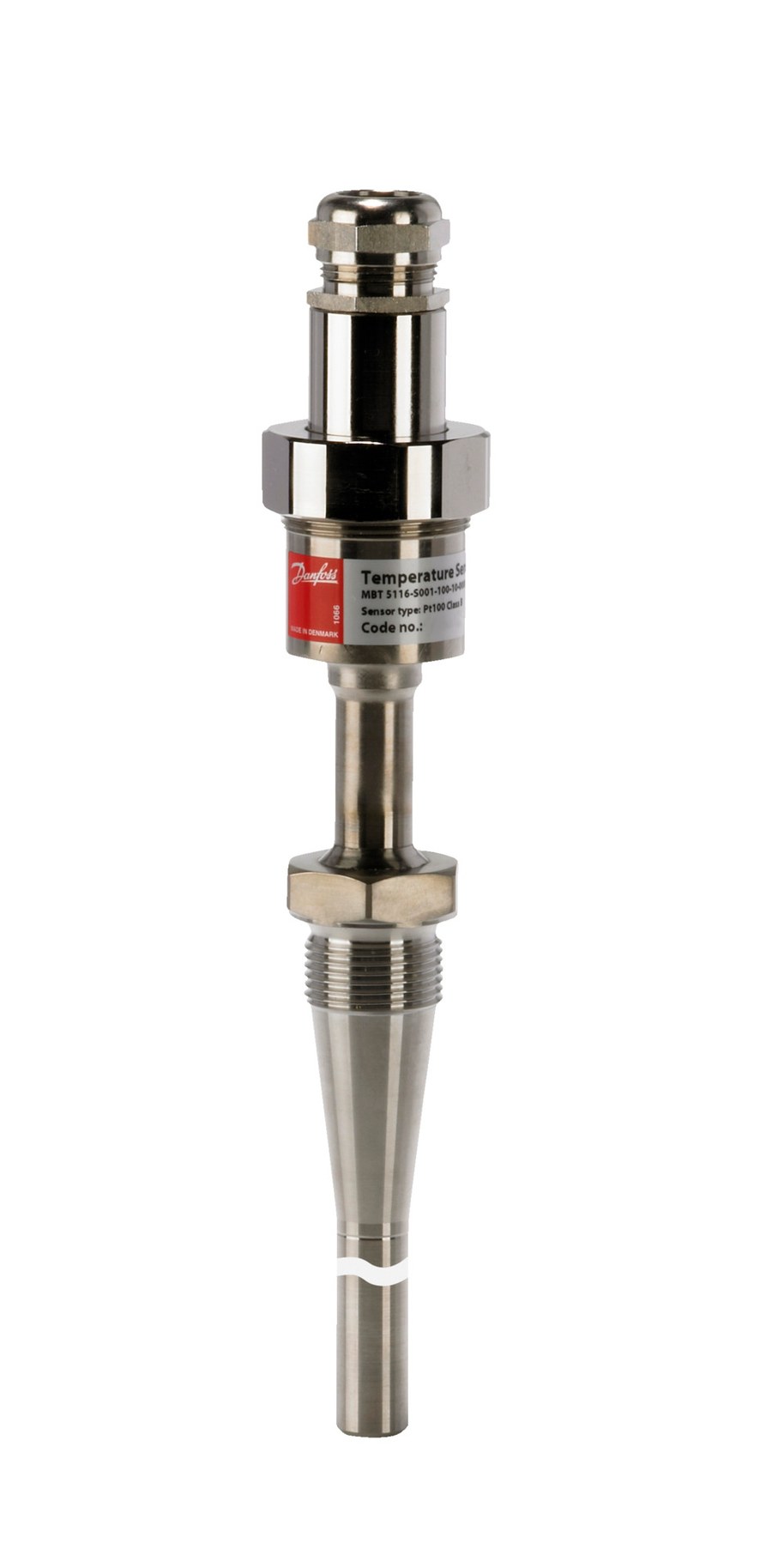

Danfoss MBT 5116 slim-line temperature sensor, Pt 100 100 ohm, 170 mm insertion, G 3/4 process connection
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 5116 slim-line temperature sensor, code 084Z8153 (type designation MBT 5116-S001-170-10-0000). Insertion RTD temperature sensor with a replaceable measuring element, for higher-temperature process, industry and marine applications. Standardized Pt 100 platinum resistance (100 ohm at 0 C) measuring element, Class B tolerance per EN 60751. Insertion length 170 mm; G 3/4 (ISO 228-1) process connection; AISI 316 Ti stainless-steel protection tube. Measuring range -50 to +600 C (-58 to +1112 F); resistance (ohm) output, 2-wire, 3 terminals with one exchangeable sensor element. Slim-line connection head, Pg 13.5; IP65 enclosure per IEC 60529. Supplied in a 8-piece multipack. CE marked.
Technical Specifications
- Type
- MBT 5116 (slim-line insertion temperature sensor, exchangeable element)
- Type designation
- MBT 5116-S001-170-10-0000
- Code number
- 084Z8153
- Sensor element
- Pt 100 platinum resistance (100 ohm at 0 C), exchangeable
- Tolerance class
- Class B per EN 60751
- Insertion length
- 170 mm
- Process connection
- G 3/4 (ISO 228-1)
- Protection tube
- AISI 316 Ti stainless steel
- Measuring range
- -50 to +600 C (-58 to +1112 F)
- Output signal
- Ohm (resistance), 2-wire, 3 terminals
- Electrical connection
- Slim-line connection head, Pg 13.5
- Enclosure rating
- IP65 per IEC 60529
- Packing format
- Multi pack (8 pc)
- Approvals
- CE
- EAN
- 5702423100682
- Net weight
- 0.709 Kilogram
- Product group
- Sensors
- Ambient temperature max. [°C]
- 75 °C
- Ambient temperature max. [°F]
- 167 °F
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Connection material
- AISI 316 Ti
- Connection standard
- ISO 228
- Connection type
- G
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection size
- Pg 13.5
- Enclosure rating IP
- IP65
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- Extension length [in]
- 1.97 in
- Extension length [mm]
- 50 mm
- In scope of WEEE
- Yes
- Insertion length [in]
- 6.7 in
- Insertion length [mm]
- 170 mm
- Insertion type
- Fixed
- Measuring range [°C] [max]
- 600 °C
- Measuring range [°C] [min]
- -50 °C
- Measuring range [°F] [max]
- 1112 °F
- Measuring range [°F] [min]
- -58 °F
- Number of terminals [pcs]
- 3 pc
- Process connection Male/Female
- Male
- Process connection material
- Stainless steel
- Process connection size
- 3/4
- Process connection standard
- ISO 228-1-A
- Process connection type
- G
- Protection tube diameter [in] [max]
- 0.945 in
- Protection tube diameter [in] [min]
- 0.551 in
- Protection tube diameter [mm] [max]
- 24 mm
- Protection tube diameter [mm] [min]
- 14 mm
- Protection tube material
- AISI 316 TI
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Sensor elem. resistance [Ohm]
- 100 Ohm
- Sensor element [pc]
- 1 pc
- Sensor element standard
- EN 60751
- Sensor element tolerance
- Class B
- Sensor element type
- Pt
- Sensor Insert
- Exchangeable
- Temperature range [°C] [max]
- 600 °C
- Temperature range [°C] [min]
- -50 °C
- Temperature range [°F] [max]
- 1112 °F
- Temperature range [°F] [min]
- -58 °F
- Wires [pcs]
- 2 pc
Standards & Compliance
- Size / Series
- 170 mm insertion
- Material
- AISI 316 Ti stainless steel
- Thread Standard
- ISO 228-1
- Temperature Range
- -50 to +600 C
- IP Rating
- IP65
- HS Code
- 9025.19
Compatibility & Fitment
MBT 5116 slim-line insertion sensor with a replaceable Pt 100 element. Confirm the insertion length (170 mm) and process thread (G 3/4) match the thermowell/pocket before ordering.
