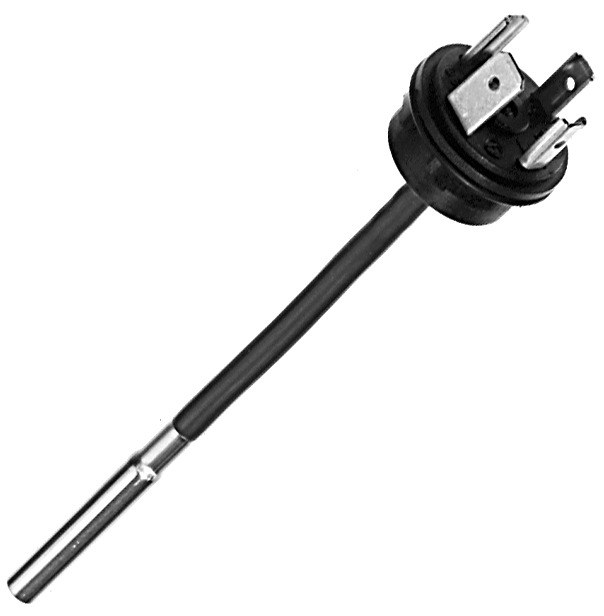

Danfoss MBT 150 temperature sensor insert, Pt 100 100 ohm, 80 mm insertion (code 084Z8072)
Danfoss · Sensors & Instrumentation · Temperature Sensors
Danfoss MBT 150 replaceable measuring insert, code 084Z8072 (type designation MBT 150-000-080-0). Changeable Pt 100 measuring element for the MBT 5250 heavy-duty insertion temperature sensor, letting the sensing element be renewed without removing the sensor pocket from the process. Standardized Pt 100 platinum element (100 ohm at 0 C), Class B tolerance per EN 60751. Insertion length 80 mm; protection tube 6 mm diameter. Measuring range -50 to +200 C (-58 to +392 F); resistance (ohm) output, 2-wire. Angular connector (4-pin) per EN 175301-803-A; IP00 enclosure. Supplied in a 60-piece multipack. CE marked.
Specifications
- Part number
- 084Z8072
- HS code
- 9025.90
- Temperature range
- -50 to +200 C
- IP rating
- IP00
- Standard size
- 80 mm insertion
Compatibility
Replaceable measuring insert for the Danfoss MBT 5250 heavy-duty temperature sensor. Confirm the insertion length (80 mm) matches the installed MBT 5250 pocket before ordering.
Standards
Approvals
